1umr

;Crystal structure of the platelet activator convulxin, a disulfide linked a4b4 cyclic tetramer from the venom of Crotalus durissus terrificus ;

Method: X-RAY DIFFRACTION D_max: 108.0 Å Quality: GOOD

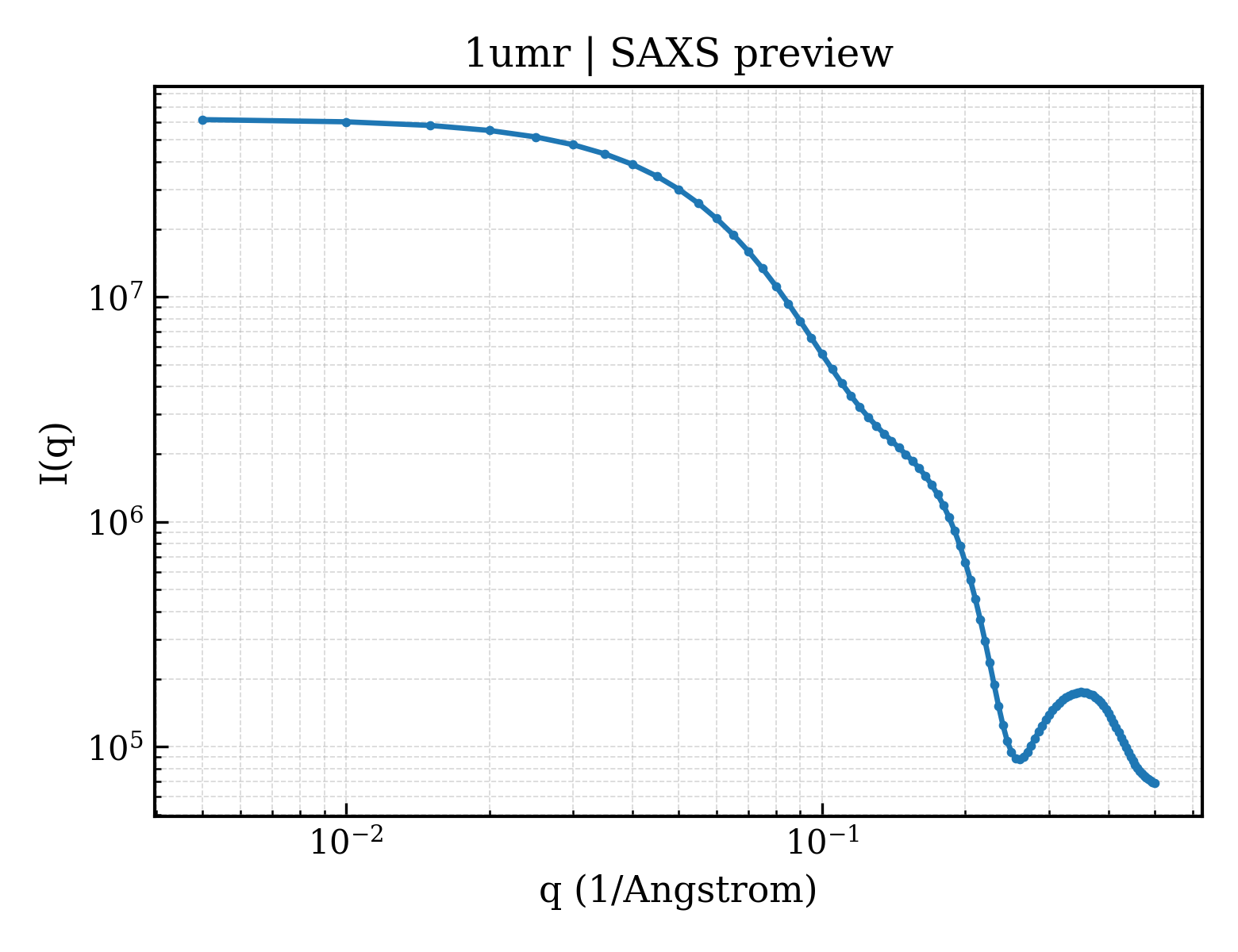

SAXS 散射曲线 SAXS Profile

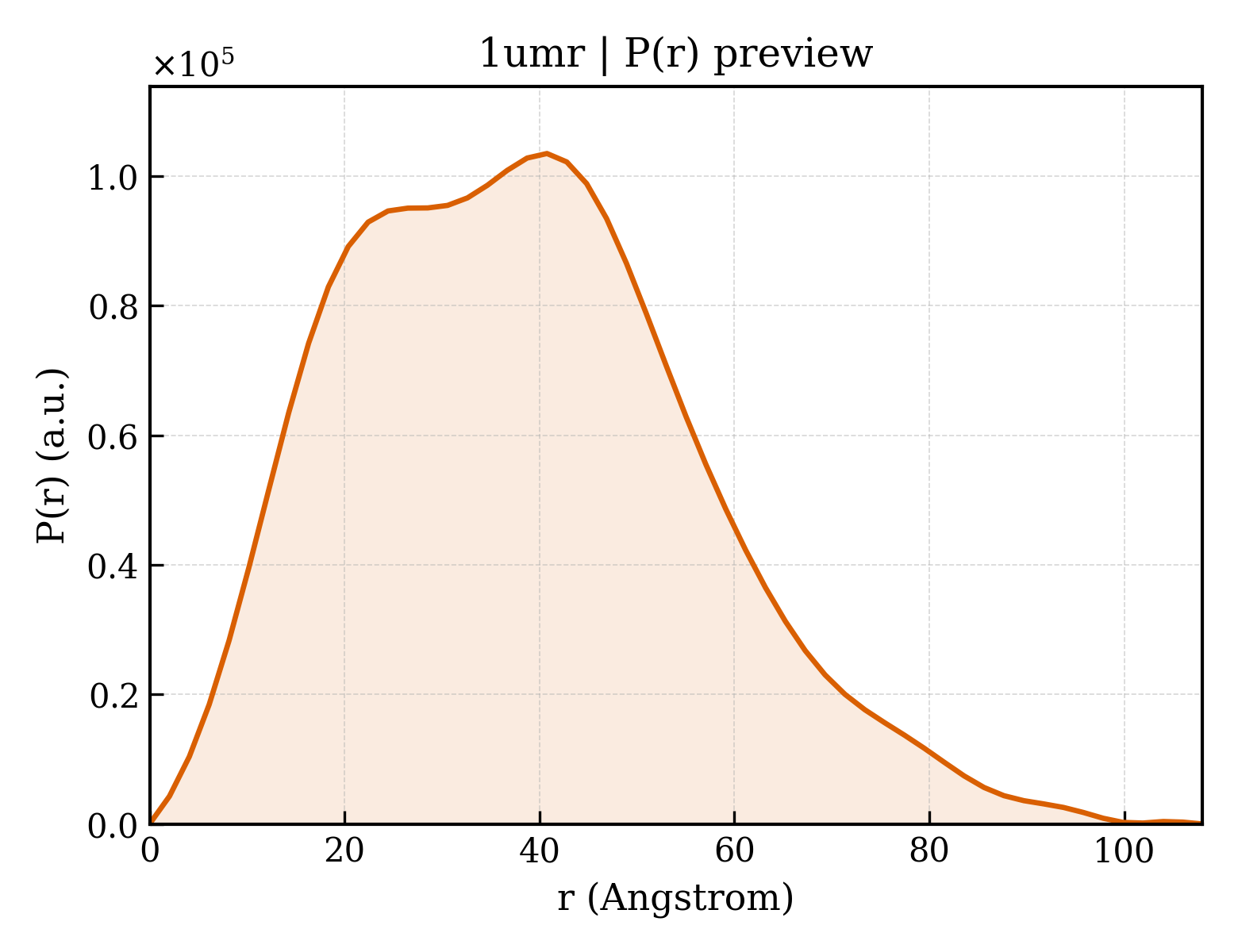

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1umr
沉积日期 deposition_date	2003-08-28
结构标题 title	;Crystal structure of the platelet activator convulxin, a disulfide linked a4b4 cyclic tetramer from the venom of Crotalus durissus terrificus ;
关键词 keywords	LECTIN, C-TYPE LECTIN, PLATELET, SUGAR-BINDING PROTEIN, ACTIVATOR, SNAKE VENOM, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	29.68 Å
回转半径 Rg (电子) rg_electron	29.07 Å
零角强度 I(0) i0	61830800.00
分子量 molecular_weight	61295.0 kDa
排除体积 excluded_volume	76182 Å³
包络体积 envelope_volume	95405 Å³
水化壳体积 shell_volume	28838 Å³
包络直径 envelope_diameter	112.9 Å
壳层 Rg shell_rg	34.23 Å
包络 Rg envelope_rg	29.14 Å
形状 Rg shape_rg	29.05 Å
总 Rg total_rg	29.65 Å
总原子数 total_atoms	4318
残基数 n_residues	520
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	108.0 Å
Rg (实空间) rg_real	29.80 Å
Rg 误差 (实空间) rg_real_error	1.21 Å
I(0) (实空间) i0_real	6.1830e+07
I(0) 误差 (实空间) i0_real_error	1.1290e+06
Rg (倒空间) rg_reciprocal	29.75 Å
I(0) (倒空间) i0_reciprocal	61830000.0000
解质量估计 total_estimate	0.8311
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	40.8 Å
偏度 Skewness skewness	0.443
峰度 Kurtosis kurtosis	-0.136
角度范围 angular_range	— – 0.2650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	34960000.0000
实空间数据点数 n_real_points	54
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.674; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.788; Smooth: 0.992

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	CONVULXIN ALPHA
分子量 formula_weight	15745.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	4515

GLHCPSDWYYYDQHCYRIFNEEMNWEDAEWFCTKQAKGAHLVSIKSAKEADFVAWMVTQNIEESFSHVSIGLRVQNKEKQCSTKWSDGSSVSYDNLLDLYITKCSLLKKETGFRKWFVASCIGKIPFVCKFPPQC

Entity 2 polymer

描述 description	CONVULXIN BETA
分子量 formula_weight	14960.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

GFCCPSHWSSYDRYCYKVFKQEMTWADAEKFCTQQHTGSHLVSFHSTEEVDFVVKMTHQSLKSTFFWIGANNIWNKCNWQWSDGTKPEYKEWHEEFECLISRTFDNQWLSAPCSDTYSFVCKFEA

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	197

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1umra_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.1 — C-type lectin domain

结构域编号 domain_id	d1umrb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.1 — C-type lectin domain

结构域编号 domain_id	d1umrc_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.1 — C-type lectin domain

结构域编号 domain_id	d1umrd_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.169 — C-type lectin-like
超家族 Superfamily superfamily	d.169.1 — C-type lectin-like
家族 Family family	d.169.1.1 — C-type lectin domain

CATH v4.4 (4 domains)

结构域编号 domain_id	1umrA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1umrB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1umrC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

结构域编号 domain_id	1umrD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	100 — Mannose-Binding Protein A; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	131.906 Å
晶胞边长 b length_b	131.906 Å
晶胞边长 c length_c	112.849 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	I 4
空间群编号 int_tables_number	79
晶系 crystal_system	—

分辨率 resolution	2.400 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	0.1900
R_work r_work	0.1870
R_free r_free	0.2640

fit	/app/data/saxs_computation/um/1umr/1umr.fit
pddf	/app/data/pr_computation/um/1umr/1umr.pr.out
profile	/app/data/saxs_computation/um/1umr/1umr.dat
