1unn

Complex of beta-clamp processivity factor and little finger domain of PolIV

Method: X-RAY DIFFRACTION D_max: 140.1 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

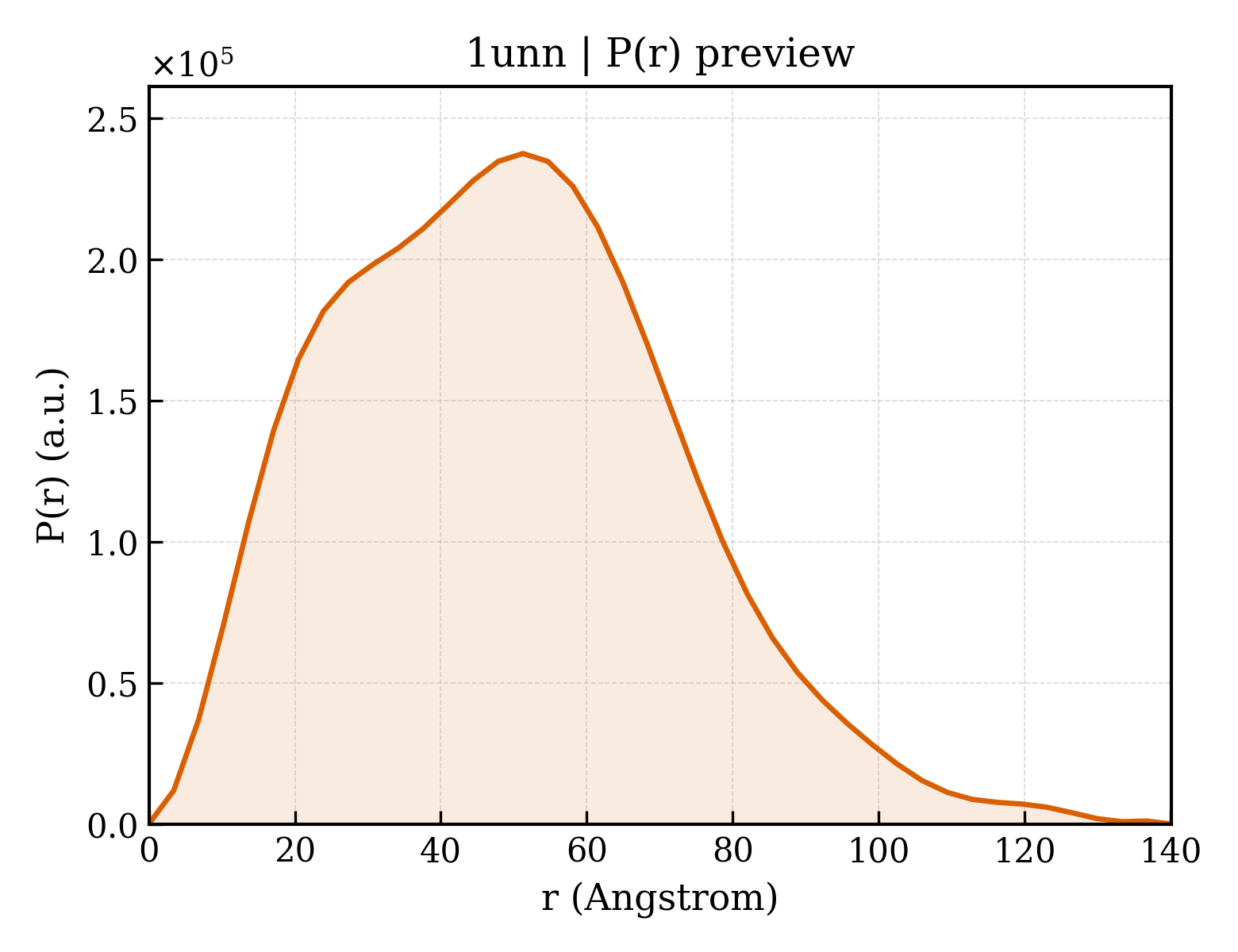

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1unn
沉积日期 deposition_date	2003-09-11
结构标题 title	Complex of beta-clamp processivity factor and little finger domain of PolIV
关键词 keywords	BETA-CLAMP, POL IV, TRANSLESION, TRANSFERASE, DNA-DIRECTED DNA POLYMERASE, DNA REPLICATION; BETA-CLAMP
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.27 Å
回转半径 Rg (电子) rg_electron	37.71 Å
零角强度 I(0) i0	181731000.00
分子量 molecular_weight	107440.0 kDa
排除体积 excluded_volume	134140 Å³
包络体积 envelope_volume	182490 Å³
水化壳体积 shell_volume	41174 Å³
包络直径 envelope_diameter	149.2 Å
壳层 Rg shell_rg	43.05 Å
包络 Rg envelope_rg	36.80 Å
形状 Rg shape_rg	37.75 Å
总 Rg total_rg	37.96 Å
总原子数 total_atoms	7538
残基数 n_residues	955
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	140.1 Å
Rg (实空间) rg_real	38.44 Å
Rg 误差 (实空间) rg_real_error	1.44 Å
I(0) (实空间) i0_real	1.8170e+08
I(0) 误差 (实空间) i0_real_error	3.3240e+06
Rg (倒空间) rg_reciprocal	38.33 Å
I(0) (倒空间) i0_reciprocal	181700000.0000
解质量估计 total_estimate	0.6317
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	51.3 Å
偏度 Skewness skewness	0.417
峰度 Kurtosis kurtosis	-0.074
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	22490000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.690; Stabil: 1.000; Sysdev: 0.132; Positv: 1.000; Valcen: 0.872; Smooth: 0.869

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	DNA POLYMERASE III BETA SUBUNIT
分子量 formula_weight	40630.5 kDa
EC 编号 ec_number	2.7.7.7
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8485

MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 polymer

描述 description	DNA POLYMERASE IV
分子量 formula_weight	13556.6 kDa
EC 编号 ec_number	2.7.7.7
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

HHHHHHVGVERTMAEDIHHWSECEAIIERLYPELERRLAKVKPDLLIARQGVKLKFDDFQQTTQEHVWPRLNKADLIATARKTWDERRGGRGVRLVGLHVTLLDPQMERQLVLGL

来源 Source

来源生物 organism	ESCHERICHIA COLI
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	ESCHERICHIA COLI

Entity 3 non-polymer

描述 description	SULFATE ION
分子量 formula_weight	96.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	947

▼

6. 折叠分类 (SCOP + CATH) 18 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1unna1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1unna2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1unna3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1unnb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1unnb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1unnb3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1unnc1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.240 — Lesion bypass DNA polymerase (Y-family), little finger domain
超家族 Superfamily superfamily	d.240.1 — Lesion bypass DNA polymerase (Y-family), little finger domain
家族 Family family	d.240.1.1 — Lesion bypass DNA polymerase (Y-family), little finger domain

结构域编号 domain_id	d1unnc2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1unnd1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.240 — Lesion bypass DNA polymerase (Y-family), little finger domain
超家族 Superfamily superfamily	d.240.1 — Lesion bypass DNA polymerase (Y-family), little finger domain
家族 Family family	d.240.1.1 — Lesion bypass DNA polymerase (Y-family), little finger domain

结构域编号 domain_id	d1unnd2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

CATH v4.4 (8 domains)

结构域编号 domain_id	1unnA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1unnA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1unnA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1unnB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1unnB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1unnB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1unnC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	100 — DNA polymerase, Y-family, little finger domain

结构域编号 domain_id	1unnD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1490 — Dna Ligase; domain 1
同源超家族 H-superfamily homologous superfamily	100 — DNA polymerase, Y-family, little finger domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	146.451 Å
晶胞边长 b length_b	70.117 Å
晶胞边长 c length_c	110.916 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 2
空间群编号 int_tables_number	18
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	62.100 Å
R 因子 r_factor	—
R_work r_work	0.1790
R_free r_free	0.2400

fit	/app/data/saxs_computation/un/1unn/1unn.fit
pddf	/app/data/pr_computation/un/1unn/1unn.pr.out
profile	/app/data/saxs_computation/un/1unn/1unn.dat
