1up4

Structure of the 6-phospho-beta glucosidase from Thermotoga maritima at 2.85 Angstrom resolution in the monoclinic form

Method: X-RAY DIFFRACTION D_max: 177.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

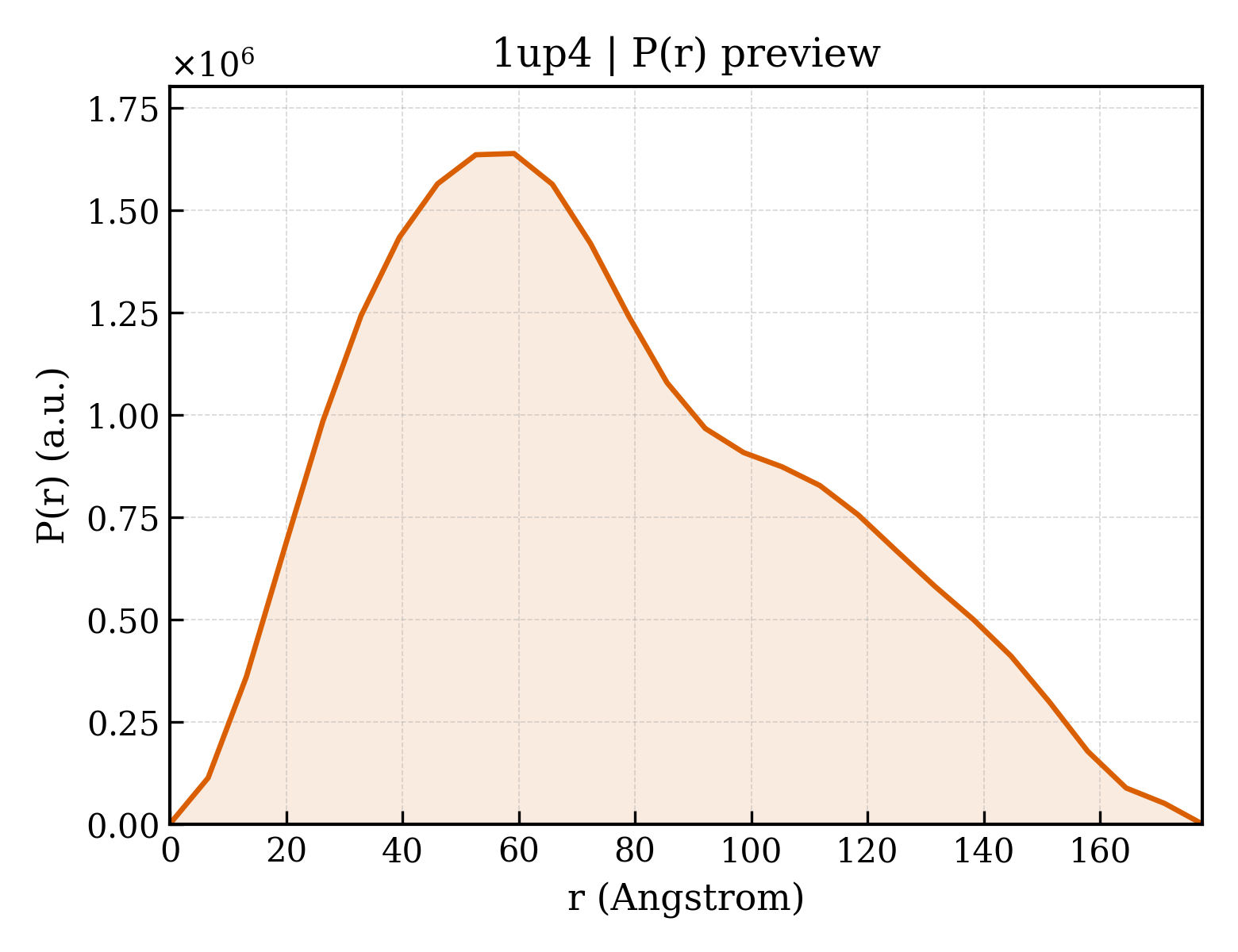

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1up4
沉积日期 deposition_date	2003-09-26
结构标题 title	Structure of the 6-phospho-beta glucosidase from Thermotoga maritima at 2.85 Angstrom resolution in the monoclinic form
关键词 keywords	HYDROLASE, 6-PHOSPHO-BETA-GLUCOSIDASE, FAMILY4 HYDROLASE, NAD-DEPENDENT; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	57.83 Å
回转半径 Rg (电子) rg_electron	58.13 Å
零角强度 I(0) i0	1822220000.00
分子量 molecular_weight	371130.0 kDa
排除体积 excluded_volume	468730 Å³
包络体积 envelope_volume	638450 Å³
水化壳体积 shell_volume	93302 Å³
包络直径 envelope_diameter	186.7 Å
壳层 Rg shell_rg	57.12 Å
包络 Rg envelope_rg	57.41 Å
形状 Rg shape_rg	58.11 Å
总 Rg total_rg	58.17 Å
总原子数 total_atoms	26031
残基数 n_residues	3172
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	177.6 Å
Rg (实空间) rg_real	58.20 Å
Rg 误差 (实空间) rg_real_error	1.43 Å
I(0) (实空间) i0_real	1.8220e+09
I(0) 误差 (实空间) i0_real_error	3.7750e+07
Rg (倒空间) rg_reciprocal	57.48 Å
I(0) (倒空间) i0_reciprocal	1820000000.0000
解质量估计 total_estimate	0.8203
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	59.2 Å
偏度 Skewness skewness	0.444
峰度 Kurtosis kurtosis	-0.603
角度范围 angular_range	— – 0.1350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	125000000.0000
实空间数据点数 n_real_points	28
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.901; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

▼

6. 折叠分类 (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

结构域编号 domain_id	d1up4a1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1up4a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.2 — AglA-like glucosidase

结构域编号 domain_id	d1up4b1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1up4b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.2 — AglA-like glucosidase

结构域编号 domain_id	d1up4c1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1up4c2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.2 — AglA-like glucosidase

结构域编号 domain_id	d1up4d1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1up4d2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.2 — AglA-like glucosidase

结构域编号 domain_id	d1up4e1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1up4e2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.2 — AglA-like glucosidase

结构域编号 domain_id	d1up4f1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1up4f2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.2 — AglA-like glucosidase

结构域编号 domain_id	d1up4g1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1up4g2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.2 — AglA-like glucosidase

结构域编号 domain_id	d1up4h1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
超家族 Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
家族 Family family	c.2.1.5 — LDH N-terminal domain-like

结构域编号 domain_id	d1up4h2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.162 — LDH C-terminal domain-like
超家族 Superfamily superfamily	d.162.1 — LDH C-terminal domain-like
家族 Family family	d.162.1.2 — AglA-like glucosidase

CATH v4.4 (16 domains)

结构域编号 domain_id	1up4A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1up4A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1up4B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1up4B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1up4C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1up4C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1up4D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1up4D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1up4E01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1up4E02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1up4F01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1up4F02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1up4G01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1up4G02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

结构域编号 domain_id	1up4H01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

结构域编号 domain_id	1up4H02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	110 — L-2-Hydroxyisocaproate Dehydrogenase; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — Lactate dehydrogenase/glycoside hydrolase, family 4, C-terminal

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	99.048 Å
晶胞边长 b length_b	188.315 Å
晶胞边长 c length_c	125.628 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	104.52 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.850 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.1980
R_work r_work	0.1960
R_free r_free	0.2350

描述 description	6-PHOSPHO-BETA-GLUCOSIDASE
分子量 formula_weight	48022.0 kDa
EC 编号 ec_number	3.2.1.6
来源方法 src_method	man
拷贝数 entity_count	8

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H
原子数 atom_count	26328

Structure of the 6-phospho-beta glucosidase from Thermotoga maritima at 2.85 Angstrom resolution in the monoclinic form

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

衍射实验 Diffraction

5. 实体与聚合体信息 (2)

Entity 1 polymer

聚合体 Polymer

来源 Source

Entity 2 water

6. 折叠分类 (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

CATH v4.4 (16 domains)

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)

来源生物 organism	THERMOTOGA MARITIMA
NCBI 分类编号 ncbi_taxonomy_id	243274
宿主生物 host_organism	ESCHERICHIA COLI

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	125

fit	/app/data/saxs_computation/up/1up4/1up4.fit
pddf	/app/data/pr_computation/up/1up4/1up4.pr.out
profile	/app/data/saxs_computation/up/1up4/1up4.dat
