1upc

Carboxyethylarginine synthase from Streptomyces clavuligerus

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CARBOXYETHYLARGININE SYNTHASE

STREPTOMYCES CLAVULIGERUS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	THIAMINE DIPHOSPHATE × 4 MAGNESIUM ION × 4 SULFATE ION × 8 water × 4	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	THIAMINE DIPHOSPHATE × 4 MAGNESIUM ION × 4 SULFATE ION × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9LCV9
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–573； UniProt 1–573 Author chain B； PDBConstruct 1–573； UniProt 1–573 Author chain C； PDBConstruct 1–573； UniProt 1–573 Author chain D； PDBConstruct 1–573； UniProt 1–573 Author chain E； PDBConstruct 1–573； UniProt 1–573 Author chain F； PDBConstruct 1–573； UniProt 1–573

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1upc
Deposition date deposition_date	2003-09-29
Structure title title	Carboxyethylarginine synthase from Streptomyces clavuligerus
Keywords keywords	SYNTHASE, CLAVULANIC ACID, ANTIBIOTIC, LACTAMASE, FLAVOPROTEIN, THIAMINE PYROPHOSPHATE; SYNTHASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1upc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1upc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

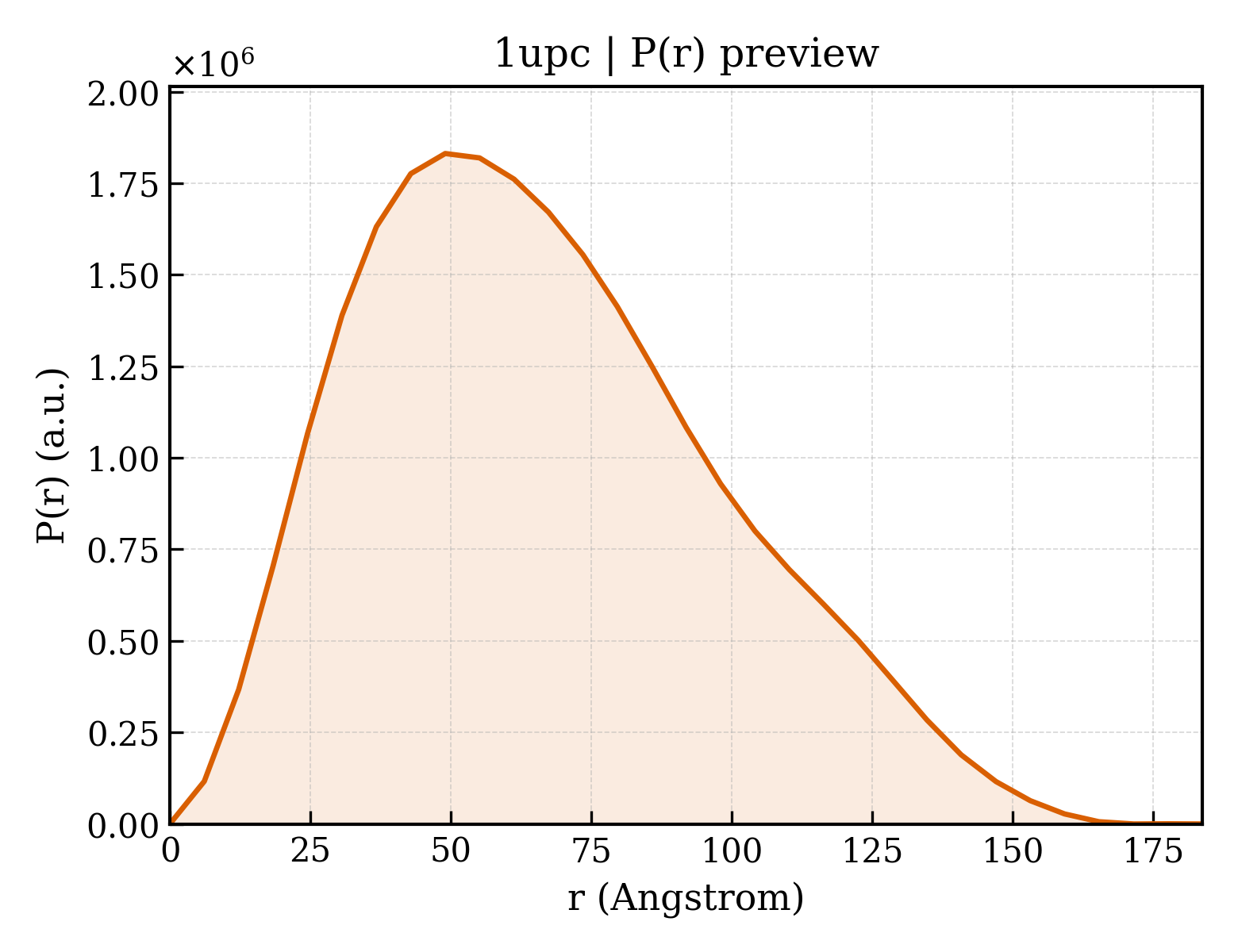

1upc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.22 Å
Rg (electron density)	37.35 Å
Total Rg	37.75 Å
Atom count	16825
Residues	2234
Excluded volume	298350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1upc__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1upc__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CARBOXYETHYLARGININE SYNTHASE
Molecular weight formula_weight	60964.8 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	26083

MSRVSTAPSGKPTAAHALLSRLRDHGVGKVFGVVGREAASILFDEVEGIDFVLTRHEFTAGVAADVLARITGRPQACWATLGPGMTNLSTGIATSVLDRSPVIALAAQSESHDIFPNDTHQCLDSVAIVAPMSKYAVELQRPHEITDLVDSAVNAAMTEPVGPSFISLPVDLLGSSEGIDTTVPNPPANTPAKPVGVVADGWQKAADQAAALLAEAKHPVLVVGAAAIRSGAVPAIRALAERLNIPVITTYIAKGVLPVGHELNYGAVTGYMDGILNFPALQTMFAPVDLVLTVGYDYAEDLRPSMWQKGIEKKTVRISPTVNPIPRVYRPDVDVVTDVLAFVEHFETATASFGAKQRHDIEPLRARIAEFLADPETYEDGMRVHQVIDSMNTVMEEAAEPGEGTIVSDIGFFRHYGVLFARADQPFGFLTSAGCSSFGYGIPAAIGAQMARPDQPTFLIAGDGGFHSNSSDLETIARLNLPIVTVVVNNDTNGLIELYQNIGHHRSHDPAVKFGGVDFVALAEANGVDATRATNREELLAALRKGAELGRPFLIEVPVNYDFQPGGFGALSI

Source Source

Source organism organism	STREPTOMYCES CLAVULIGERUS
NCBI taxonomy ID ncbi_taxonomy_id	1901
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	THIAMINE DIPHOSPHATE
Molecular weight formula_weight	425.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	852

▼

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (18 domains)

Domain ID domain_id	d1upca1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.3 — Pyruvate oxidase and decarboxylase, middle domain

Domain ID domain_id	d1upca2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.5 — Pyruvate oxidase and decarboxylase Pyr module

Domain ID domain_id	d1upca3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.9 — Pyruvate oxidase and decarboxylase PP module

Domain ID domain_id	d1upcb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.3 — Pyruvate oxidase and decarboxylase, middle domain

Domain ID domain_id	d1upcb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.5 — Pyruvate oxidase and decarboxylase Pyr module

Domain ID domain_id	d1upcb3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.9 — Pyruvate oxidase and decarboxylase PP module

Domain ID domain_id	d1upcc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.3 — Pyruvate oxidase and decarboxylase, middle domain

Domain ID domain_id	d1upcc2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.5 — Pyruvate oxidase and decarboxylase Pyr module

Domain ID domain_id	d1upcc3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.9 — Pyruvate oxidase and decarboxylase PP module

Domain ID domain_id	d1upcd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.3 — Pyruvate oxidase and decarboxylase, middle domain

Domain ID domain_id	d1upcd2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.5 — Pyruvate oxidase and decarboxylase Pyr module

Domain ID domain_id	d1upcd3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.9 — Pyruvate oxidase and decarboxylase PP module

Domain ID domain_id	d1upce1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.3 — Pyruvate oxidase and decarboxylase, middle domain

Domain ID domain_id	d1upce2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.5 — Pyruvate oxidase and decarboxylase Pyr module

Domain ID domain_id	d1upce3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.9 — Pyruvate oxidase and decarboxylase PP module

Domain ID domain_id	d1upcf1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.31 — DHS-like NAD/FAD-binding domain
Superfamily Superfamily superfamily	c.31.1 — DHS-like NAD/FAD-binding domain
Family Family family	c.31.1.3 — Pyruvate oxidase and decarboxylase, middle domain

Domain ID domain_id	d1upcf2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.5 — Pyruvate oxidase and decarboxylase Pyr module

Domain ID domain_id	d1upcf3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.36 — Thiamin diphosphate-binding fold (THDP-binding)
Superfamily Superfamily superfamily	c.36.1 — Thiamin diphosphate-binding fold (THDP-binding)
Family Family family	c.36.1.9 — Pyruvate oxidase and decarboxylase PP module

CATH v4.4 (18 domains)

Domain ID domain_id	1upcA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	1upcA03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	1upcB03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcC02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	1upcC03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcD02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	1upcD03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcE02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	1upcE03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

Domain ID domain_id	1upcF02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1220 — TPP-binding domain

Domain ID domain_id	1upcF03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	970 — Thiamin diphosphate (ThDP)-binding fold, Pyr/PP domains

▶

Unit-cell length a length_a	123.073 Å
Unit-cell length b length_b	187.196 Å
Unit-cell length c length_c	198.615 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.450 Å
Low-resolution limit resolution_low	38.000 Å
R factor r_factor	0.1780
R_work r_work	0.1760
R_free r_free	0.2160

Carboxyethylarginine synthase from Streptomyces clavuligerus

1. Protein Identity and Related Structures Protein Identity & Related Structures

CARBOXYETHYLARGININE SYNTHASE

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1upc__assembly_1__model_1

1upc__assembly_1__model_1 | I(q)

1upc__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (18 domains)

CATH v4.4 (18 domains)

7. Citations (1)

Carboxyethylarginine synthase from Streptomyces clavuligerus

1. Protein Identity and Related Structures Protein Identity & Related Structures

CARBOXYETHYLARGININE SYNTHASE

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1upc__assembly_1__model_1

1upc__assembly_1__model_1 | I(q)

1upc__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

6. Fold Classification (SCOP + CATH) 36 domains

SCOP 2.08 (18 domains)

CATH v4.4 (18 domains)

7. Citations (1)
