DROSOPHILA MELANOGASTER
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 2 | water × 2 | Consistent with protein count |
| UniProt name | Q9Y092 |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–244； UniProt 1–244 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1uru |
| Deposition date deposition_date | 2003-11-06 |
| Structure title title | Amphiphysin BAR domain from Drosophila |
| Keywords keywords | ENDOCYTOSIS, COILED-COIL, MEMBRANE CURVATURE; ENDOCYTOSIS |
| Experimental Method method | X-RAY DIFFRACTION |

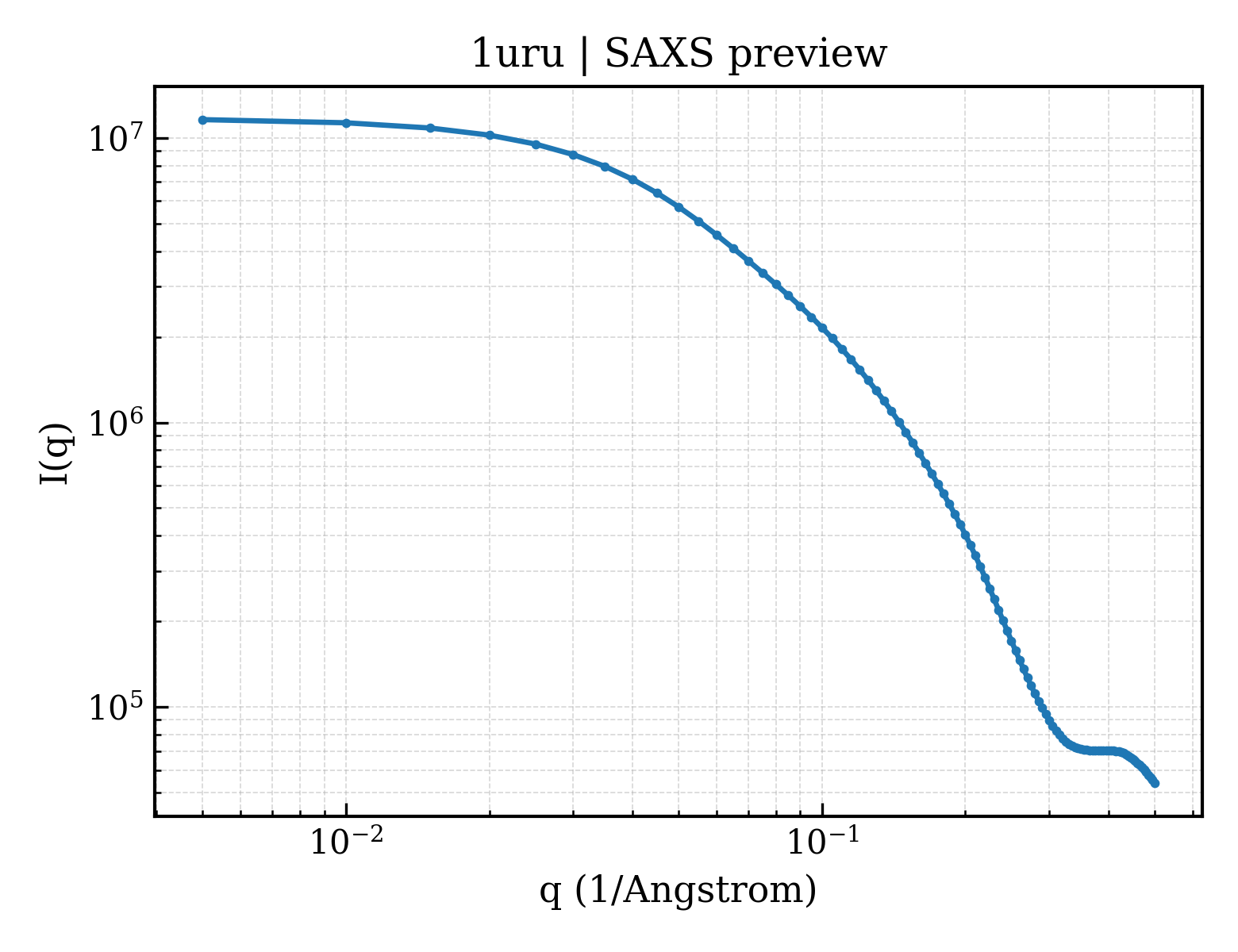

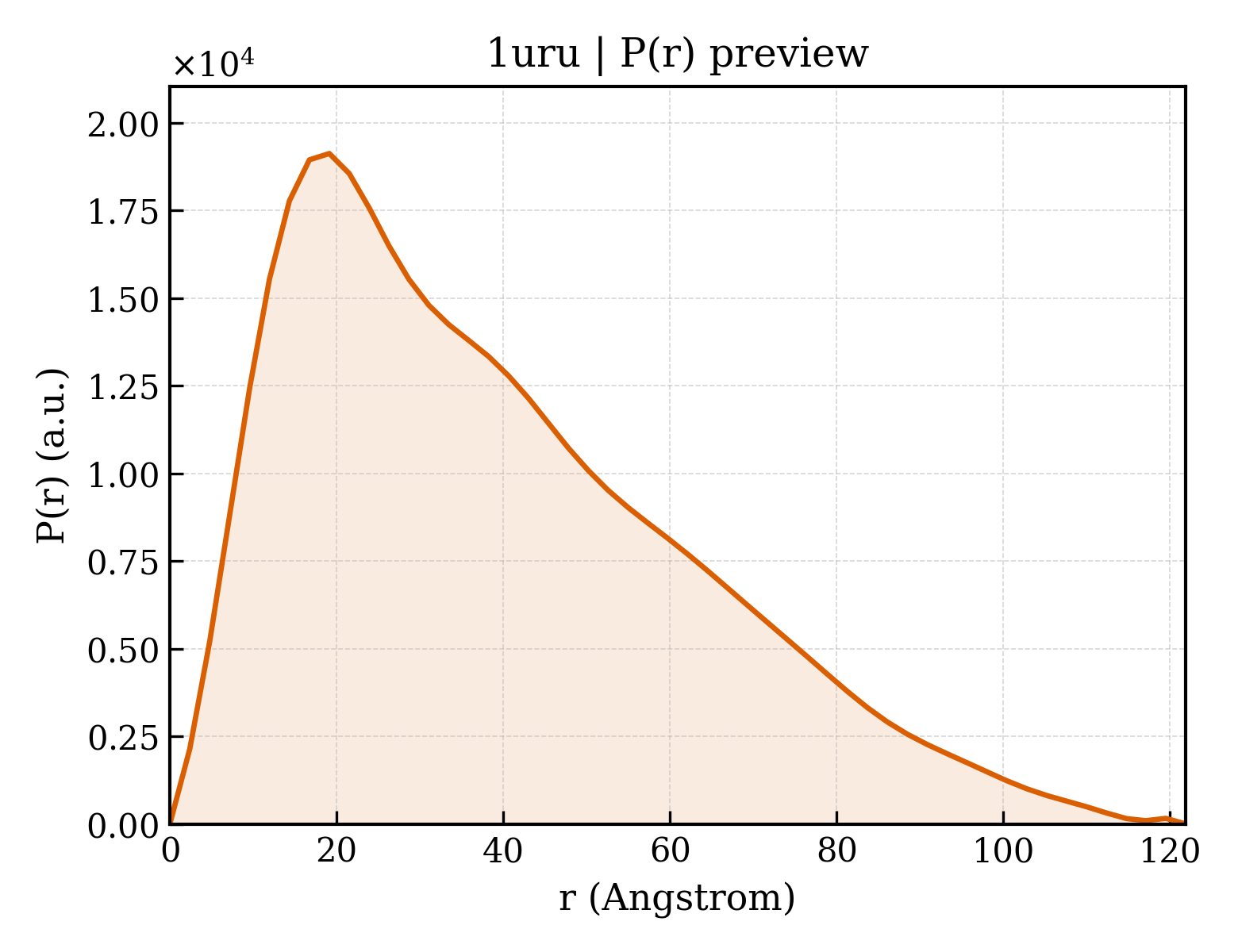

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 38.32 Å |
| Rg (electron density) | 39.33 Å |
| Total Rg | 39.14 Å |
| Atom count | 3542 |
| Residues | 430 |
| Excluded volume | 62256 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1urua_ |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.238 — BAR/IMD domain-like |
| Superfamily Superfamily superfamily | a.238.1 — BAR/IMD domain-like |
| Family Family family | a.238.1.1 — BAR domain |
| Domain ID domain_id | 1uruA01 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 20 — Up-down Bundle |
| Topology topology | 1270 — Substrate Binding Domain Of Dnak; Chain:A; Domain 2 |
| Homologous superfamily homologous superfamily | 60 — Arfaptin homology (AH) domain/BAR domain |
