1ut2

AfaE-3 adhesin from Escherichia Coli

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AFIMBRIAL ADHESIN AFA-III

ESCHERICHIA COLI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	SULFATE ION × 2 water × 3	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 3	SULFATE ION × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FMA3_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 10–149； UniProt 21–160 Author chain B； PDBConstruct 10–149； UniProt 21–160 Author chain C； PDBConstruct 10–149； UniProt 21–160 Author chain D； PDBConstruct 10–149； UniProt 21–160 Author chain E； PDBConstruct 10–149； UniProt 21–160 Author chain F； PDBConstruct 10–149； UniProt 21–160 Author chain G； PDBConstruct 10–149； UniProt 21–160 Author chain H； PDBConstruct 10–149； UniProt 21–160 Author chain I； PDBConstruct 10–149； UniProt 21–160

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ut2
Deposition date deposition_date	2003-12-02
Structure title title	AfaE-3 adhesin from Escherichia Coli
Keywords keywords	ADHESIN, AFAE-3, AFIMBRIAL ADHESIN, UPEC, DAEC; ADHESIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ut2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

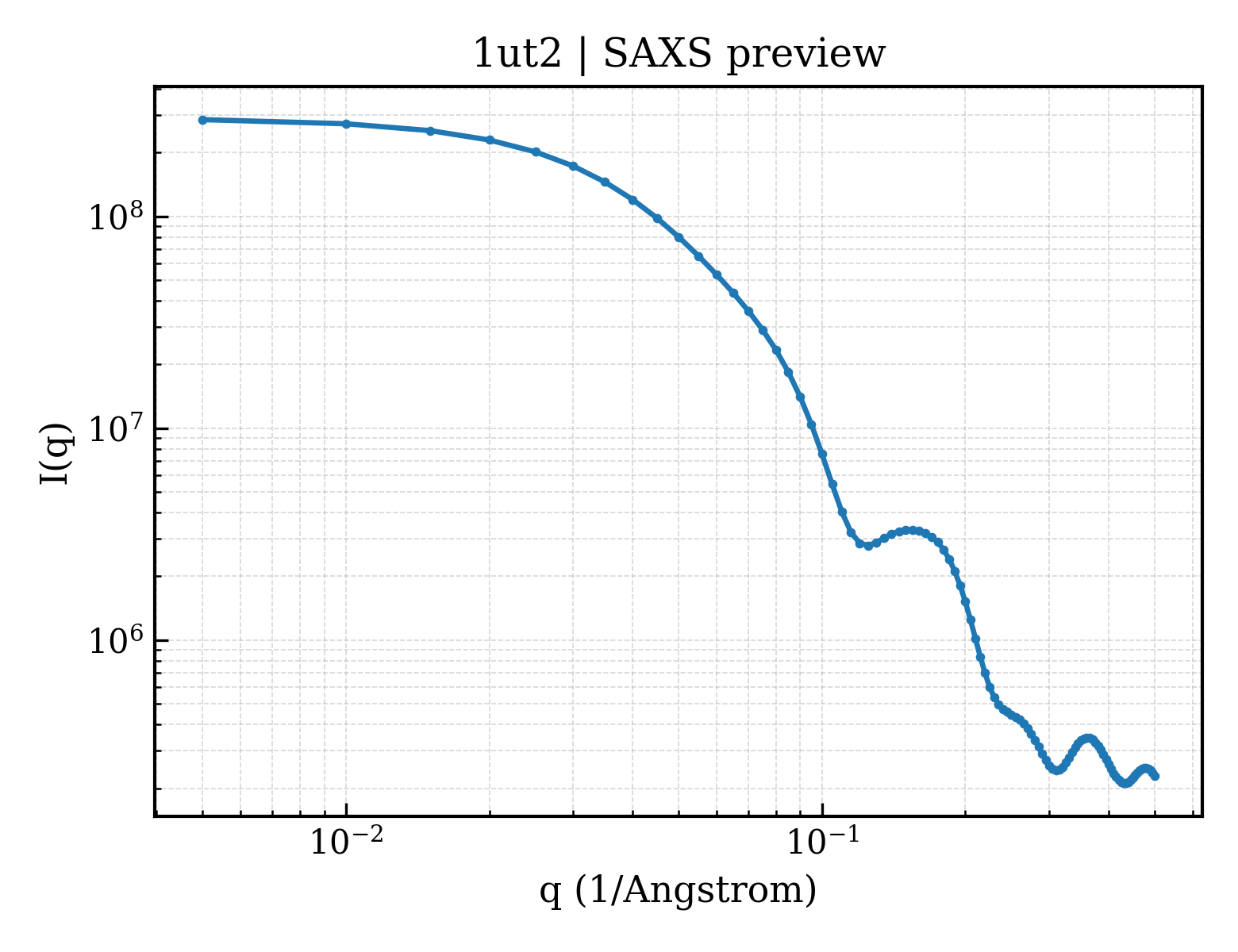

1ut2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

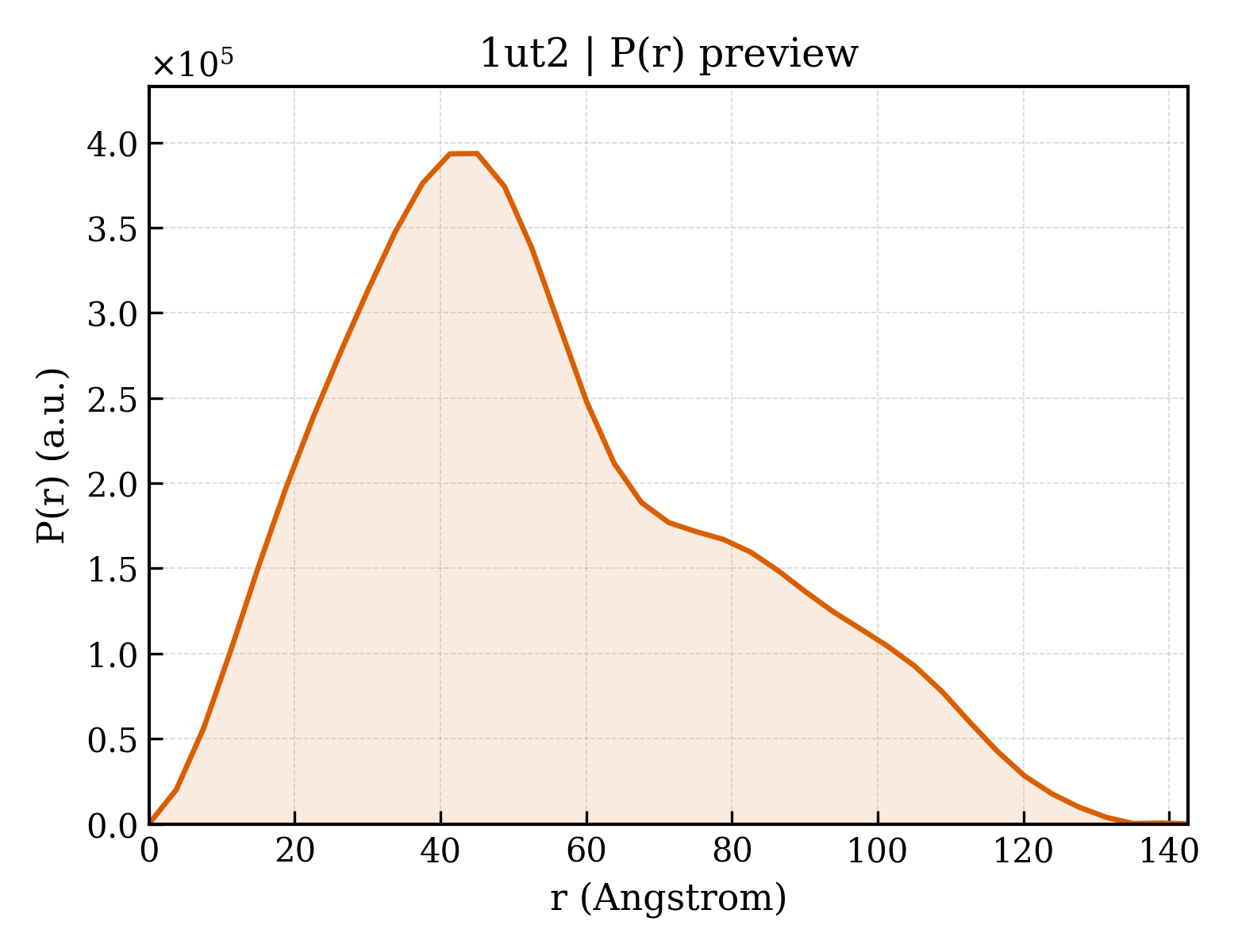

1ut2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.66 Å
Rg (electron density)	24.49 Å
Total Rg	25.23 Å
Atom count	3146
Residues	416
Excluded volume	55283 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ut2__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ut2__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1ut2__assembly_3__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	AFIMBRIAL ADHESIN AFA-III
Molecular weight formula_weight	16186.8 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	9

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I
Atom count atom_count	9539

RGSHHHHHHGSFTPSGTTGTTKLTVTEECQVRVGDLTVAKTRGQLTDAAPIGPVTVQALGCNARQVALKADTDNFEQGKFFLISDNNRDKLYVNIRPMDNSAWTTDNGVFYKNDVGSWGGTIGIYVDGQQTNTPPGNYTLTLTGGYWAK

Source Source

Source organism organism	ESCHERICHIA COLI
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	27

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (9 domains)

Domain ID domain_id	d1ut2a_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.6 — Dr-family adhesin

Domain ID domain_id	d1ut2b_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.6 — Dr-family adhesin

Domain ID domain_id	d1ut2c_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.6 — Dr-family adhesin

Domain ID domain_id	d1ut2d_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.6 — Dr-family adhesin

Domain ID domain_id	d1ut2e_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.6 — Dr-family adhesin

Domain ID domain_id	d1ut2f_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.6 — Dr-family adhesin

Domain ID domain_id	d1ut2g_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.6 — Dr-family adhesin

Domain ID domain_id	d1ut2h_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.6 — Dr-family adhesin

Domain ID domain_id	d1ut2i_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.6 — Dr-family adhesin

CATH v4.4 (9 domains)

Domain ID domain_id	1ut2A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1570 — Dr adhesin

Domain ID domain_id	1ut2B00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1570 — Dr adhesin

Domain ID domain_id	1ut2C00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1570 — Dr adhesin

Domain ID domain_id	1ut2D00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1570 — Dr adhesin

Domain ID domain_id	1ut2E00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1570 — Dr adhesin

Domain ID domain_id	1ut2F00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1570 — Dr adhesin

Domain ID domain_id	1ut2G00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1570 — Dr adhesin

Domain ID domain_id	1ut2H00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1570 — Dr adhesin

Domain ID domain_id	1ut2I00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1570 — Dr adhesin

▶

Unit-cell length a length_a	113.295 Å
Unit-cell length b length_b	113.295 Å
Unit-cell length c length_c	164.125 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	54

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	63.300 Å
R factor r_factor	0.2280
R_work r_work	0.2260
R_free r_free	0.2660
