SAXSdb — 1ute

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROTEIN (II PURPLE ACID PHOSPHATASE)

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 1	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 PHOSPHATE ION × 1 MU-OXO-DIIRON × 1 ISOPROPYL ALCOHOL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PPA5_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–313； UniProt 28–340

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ute
Deposition date deposition_date	1999-01-18
Structure title title	PIG PURPLE ACID PHOSPHATASE COMPLEXED WITH PHOSPHATE
Keywords keywords	PURPLE ACID PHOSPHATASE, TARTRATE RESISTANT ACID PHOSPHATASE, METALLOENZYME, UTEROFERRIN, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ute__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ute__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

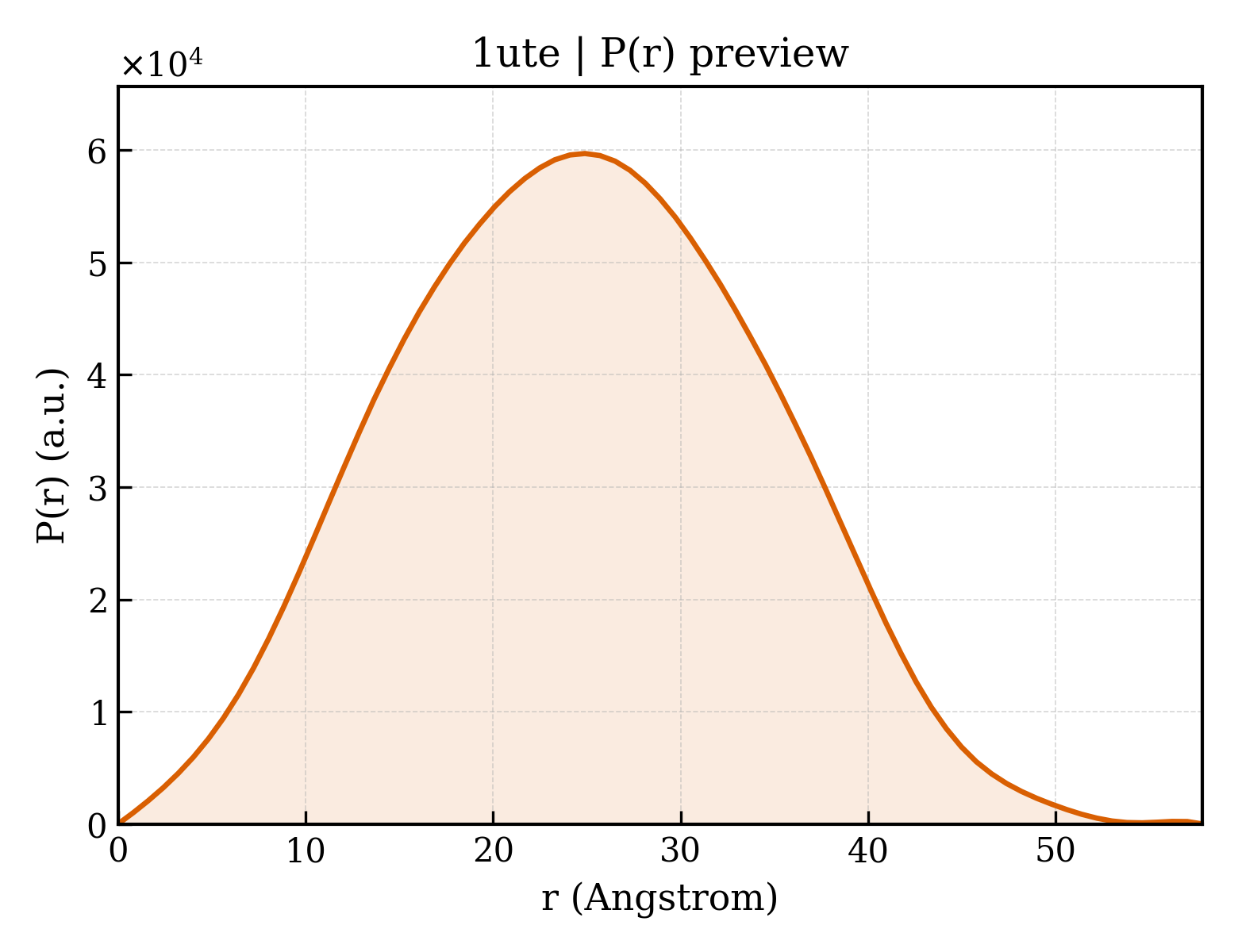

1ute__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.94 Å
Rg (electron density)	17.86 Å
Total Rg	18.96 Å
Atom count	2410
Residues	302
Excluded volume	42890 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ute__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	PROTEIN (II PURPLE ACID PHOSPHATASE)
Molecular weight formula_weight	35154.1 kDa
EC 编号 ec_number	3.1.3.2
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2769

TAPTPILRFVAVGDWGGVPNAPFHTAREMANAKAIATTVKTLGADFILSLGDNFYFTGVHDAKDKRFQETFEDVFSDPSLRNVPWHVLAGNHDHLGNVSAQIAYSKISKRWNFPSPYYRLRFKIPRSNVSVAIFMLDTVTLCGNSDDFVSQQPERPRNLALARTQLAWIKKQLAAAKEDYVLVAGHYPVWSIAEHGPTHCLVKQLLPLLTTHKVTAYLCGHDHNLQYLQDENGLGFVLSGAGNFMDPSKKHLRKVPNGYLRFHFGAENSLGGFAYVEITPKEMSVTYIEASGKSLFKTKLPRRARSEHQHRRA

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	MU-OXO-DIIRON
Molecular weight formula_weight	127.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	ISOPROPYL ALCOHOL
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	339

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1utea_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.159 — Metallo-dependent phosphatases
Superfamily Superfamily superfamily	d.159.1 — Metallo-dependent phosphatases
Family Family family	d.159.1.1 — Purple acid phosphatase-like

CATH v4.4 (1 domains)

Domain ID domain_id	1uteA00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	21 — Purple Acid Phosphatase; chain A, domain 2
Homologous superfamily homologous superfamily	10 — Metallo-dependent phosphatases

▶

Unit-cell length a length_a	64.610 Å
Unit-cell length b length_b	70.010 Å
Unit-cell length c length_c	77.110 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	100.000 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	0.2570
