SAXSdb — 1uv4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ARABINAN-ENDO 1,5-ALPHA-L-ARABINASE

BACILLUS SUBTILIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CALCIUM ION × 2 1,2-ETHANEDIOL × 4 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P94522_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–277； UniProt 31–307

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1uv4
Deposition date deposition_date	2004-01-14
Structure title title	Native Bacillus subtilis Arabinanase Arb43A
Keywords keywords	HYDROLASE, PROPELLER, CATALYSIS; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1uv4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

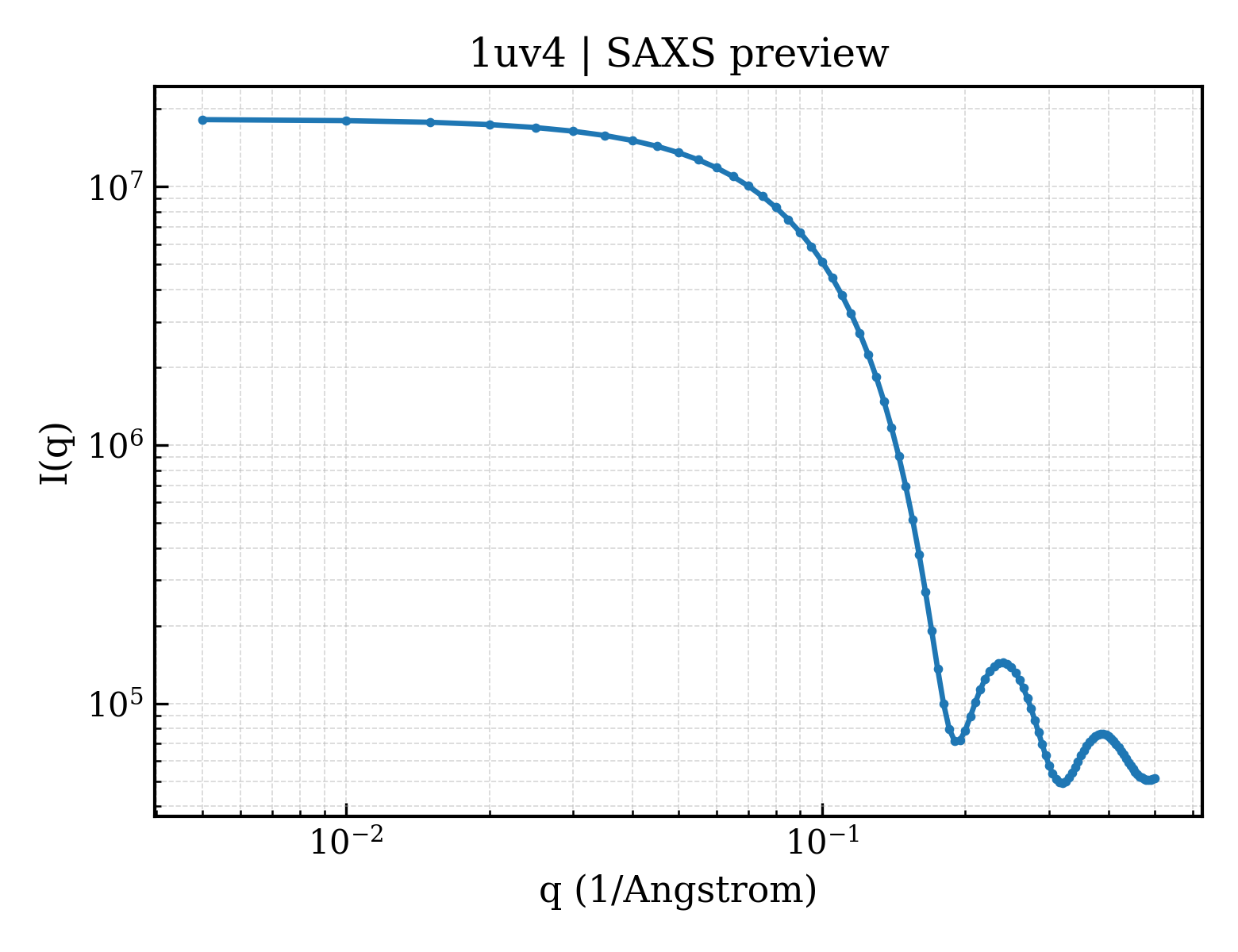

1uv4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

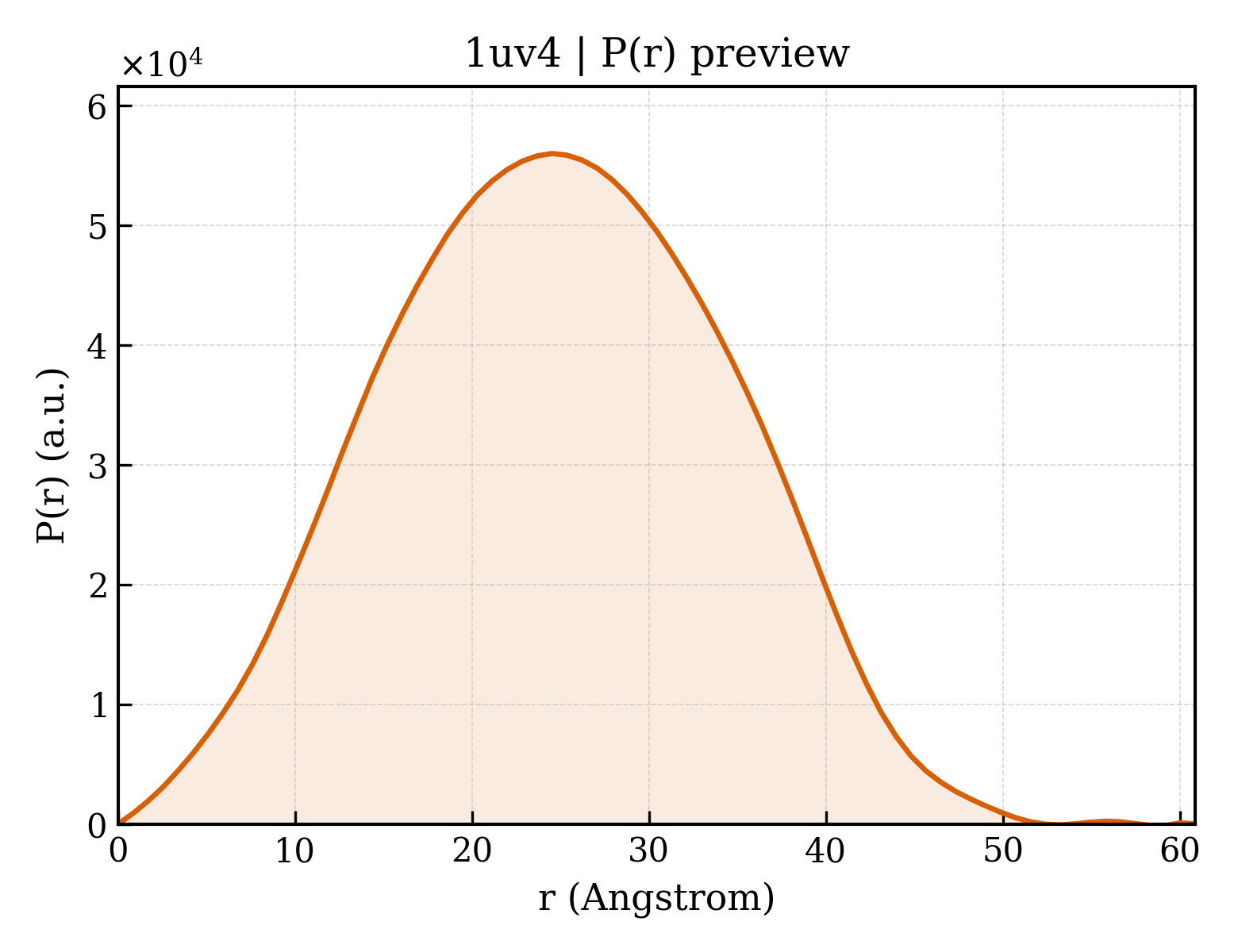

1uv4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.89 Å
Rg (electron density)	17.53 Å
Total Rg	18.56 Å
Atom count	2281
Residues	291
Excluded volume	40305 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1uv4__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ARABINAN-ENDO 1,5-ALPHA-L-ARABINASE
Molecular weight formula_weight	32210.6 kDa
EC 编号 ec_number	3.2.1.99
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2591

EAAFWGASNELLHDPTMIKEGSSWYALGTGLTEERGLRVLKSSDAKNWTVQKSIFTTPLSWWSNYVPNYGQNQWAPDIQYYNGKYWLYYSVSSFGSNTSAIGLASSTSISSGGWKDEGLVIRSTSSNNYNAIDPELTFDKDGNPWLAFGSFWSGIKLTKLDKSTMKPTGSLYSIAARPNNGGALEAPTLTYQNGYYYLMVSFDKCCDGVNSTYKIAYGRSKSITGPYLDKSGKSMLEGGGTILDSGNDQWKGPGGQDIVNGNILVRHAYDANDNGIPKLLINDLNWSSGWPSY

Source Source

Source organism organism	BACILLUS SUBTILIS
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	302

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1uv4a1
Class class	b — All beta proteins
Fold Fold fold	b.67 — 5-bladed beta-propeller
Superfamily Superfamily superfamily	b.67.2 — Arabinanase/levansucrase/invertase
Family Family family	b.67.2.1 — alpha-L-arabinanase-like

CATH v4.4 (1 domains)

Domain ID domain_id	1uv4A00
Class class	2 — Mainly Beta
Architecture architecture	115 — 5 Propeller
Topology topology	10 — Tachylectin-2; Chain A
Homologous superfamily homologous superfamily	20 — Glycosyl hydrolase domain; family 43

▶

Unit-cell length a length_a	48.628 Å
Unit-cell length b length_b	46.153 Å
Unit-cell length c length_c	57.322 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.96 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1690
R_work r_work	0.1670
R_free r_free	0.1990
