1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1uvm
沉积日期 deposition_date	2004-01-21
结构标题 title	The structural basis for RNA specificity and Ca2 inhibition of an RNA-dependent RNA polymerase phi6p2 with 5NT RNA conformation A
关键词 keywords	POLYMERASE, TRANSFERASE, NUCLEOTIDYLTRANSFERASE, TRANSCRIPTION; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	53.51 Å
回转半径 Rg (电子) rg_electron	54.49 Å
零角强度 I(0) i0	785257000.00
分子量 molecular_weight	228990.0 kDa
排除体积 excluded_volume	284720 Å³
包络体积 envelope_volume	377470 Å³
水化壳体积 shell_volume	64546 Å³
包络直径 envelope_diameter	192.3 Å
壳层 Rg shell_rg	48.75 Å
包络 Rg envelope_rg	53.79 Å
形状 Rg shape_rg	54.49 Å
总 Rg total_rg	54.29 Å
总原子数 total_atoms	16089
残基数 n_residues	2007
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	180.2 Å
Rg (实空间) rg_real	54.18 Å
Rg 误差 (实空间) rg_real_error	2.64 Å
I(0) (实空间) i0_real	7.8530e+08
I(0) 误差 (实空间) i0_real_error	1.8490e+07
Rg (倒空间) rg_reciprocal	52.93 Å
I(0) (倒空间) i0_reciprocal	783900000.0000
解质量估计 total_estimate	0.7264
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.3 Å
偏度 Skewness skewness	0.603
峰度 Kurtosis kurtosis	-0.446
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	129500000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.566; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.664; Smooth: 0.077

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	RNA-directed RNA polymerase
分子量 formula_weight	74903.2 kDa
EC 编号 ec_number	2.7.7.48
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	16529

PRRAPAFPLSDIKAQMLFANNIKAQQASKRSFKEGAIETYEGLLSVDPRFLSFKNELSRYLTDHFPANVDEYGRVYGNGVRTNFFGMRHMNGFPMIPATWPLASNLKKRADADLADGPVSERDNLLFRAAVRLMFSDLEPVPLKIRKGSSTCIPYFSNDMGTKIEIAERALEKAEEAGNLMLQGKFDDAYQLHQMGGAYYVVYRAQSTDAITLDPKTGKFVSKDRMVADFEYAVTGGEQGSLFAASKDASRLKEQYGIDVPDGFFCERRRTAMGGPFALNAPIMAVAQPVRNKIYSKYAYTFHHTTRLNKEEKVKEWSLCVATDVSDHDTFWPGWLRDLICDELLNMGYAPWWVKLFETSLKLPVYVGAPAPEQGHTLLGDPSNPDLEVGLSSGQGATDLMGTLLMSITYLVMQLDHTAPHLNSRIKDMPSACRFLDSYWQGHEEIRQISKSDDAMLGWTKGRALVGGHRLFEMLKEGKVNPSPYMKISYEHGGAFLGDILLYDSRREPGSAIFVGNINSMLNNQFSPEYGVQSGVRDRSKRKRPFPGLAWASMKDTYGACPIYSDVLEAIERCWWNAFGESYRAYREDMLKRDTLELSRYVASMARQAGLAELTPIDLEVLADPNKLQYKWTEADVSANIHEVLMHGVSVEKTERFLRSVMPR

来源 Source

来源生物 organism	Pseudomonas phage phi6
通用名 common_name	Bacteriophage phi-6
NCBI 分类编号 ncbi_taxonomy_id	10879
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	5'-R(UPUPUPCP*CP)-3'
分子量 formula_weight	1483.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	D,E,F

UUUCC

Entity 3 non-polymer

描述 description	MANGANESE (II) ION
分子量 formula_weight	54.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	440

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d1uvma_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.6 — dsRNA phage RNA-dependent RNA-polymerase

结构域编号 domain_id	d1uvmb_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.6 — dsRNA phage RNA-dependent RNA-polymerase

结构域编号 domain_id	d1uvmc_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.8 — DNA/RNA polymerases
超家族 Superfamily superfamily	e.8.1 — DNA/RNA polymerases
家族 Family family	e.8.1.6 — dsRNA phage RNA-dependent RNA-polymerase

CATH v4.4 (9 domains)

结构域编号 domain_id	1uvmA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	490 — Globin-like
同源超家族 H-superfamily homologous superfamily	60 — Phage p2 RNA dependent RNA polymerase domain

结构域编号 domain_id	1uvmA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1600 —

结构域编号 domain_id	1uvmA04
类 Class class	6 — Special
架构 Architecture architecture	20 — Other non-globular
拓扑 Topology topology	410 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1uvmB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	490 — Globin-like
同源超家族 H-superfamily homologous superfamily	60 — Phage p2 RNA dependent RNA polymerase domain

结构域编号 domain_id	1uvmB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1600 —

结构域编号 domain_id	1uvmB04
类 Class class	6 — Special
架构 Architecture architecture	20 — Other non-globular
拓扑 Topology topology	410 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1uvmC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	490 — Globin-like
同源超家族 H-superfamily homologous superfamily	60 — Phage p2 RNA dependent RNA polymerase domain

结构域编号 domain_id	1uvmC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1600 —

结构域编号 domain_id	1uvmC04
类 Class class	6 — Special
架构 Architecture architecture	20 — Other non-globular
拓扑 Topology topology	410 — Dihydrolipoamide Transferase
同源超家族 H-superfamily homologous superfamily	10 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	105.946 Å
晶胞边长 b length_b	91.881 Å
晶胞边长 c length_c	140.762 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	101.56 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	6

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	19.820 Å
R 因子 r_factor	0.2410
R_work r_work	0.2410
R_free r_free	0.2760

fit	/app/data/saxs_computation/uv/1uvm/1uvm.fit
pddf	/app/data/pr_computation/uv/1uvm/1uvm.pr.out
profile	/app/data/saxs_computation/uv/1uvm/1uvm.dat

The structural basis for RNA specificity and Ca2 inhibition of an RNA-dependent RNA polymerase phi6p2 with 5NT RNA conformation A

SAXS 散射曲线 SAXS Profile

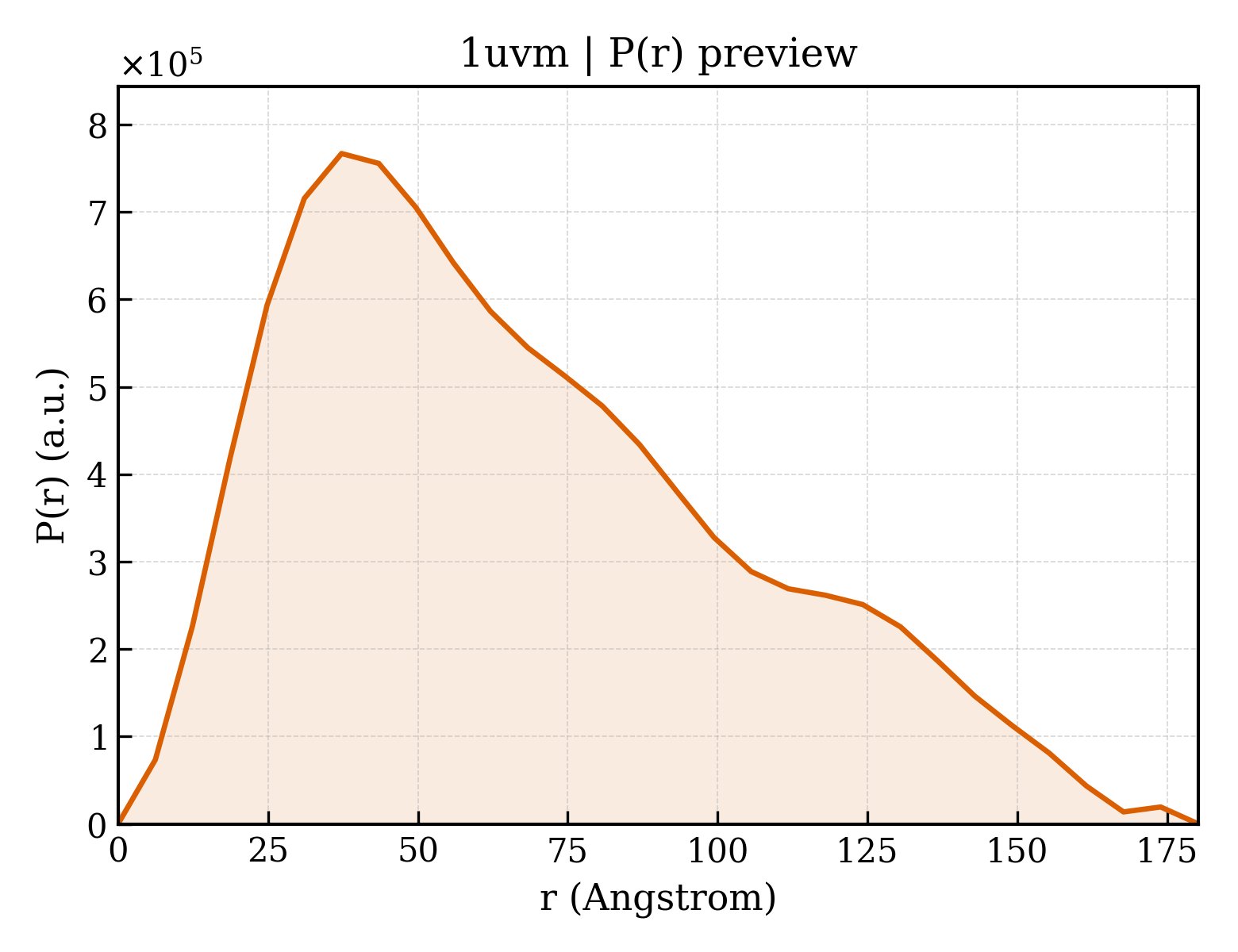

P(r) 距离分布 P(r) Distribution
