SAXSdb — 1ux1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYTIDINE DEAMINASE

BACILLUS SUBTILIS

UniProt P19079

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	TETRAHYDRODEOXYURIDINE × 4 ZINC ION × 4 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CDD_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 1–136 Author chain B； PDBConstruct 1–136； UniProt 1–136 Author chain C； PDBConstruct 1–136； UniProt 1–136 Author chain D； PDBConstruct 1–136； UniProt 1–136

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ux1
Deposition date deposition_date	2004-02-18
Structure title title	Bacillus subtilis cytidine deaminase with a Cys53His and an Arg56Gln substitution
Keywords keywords	CYTIDINE DEAMINASE, CDD, TETRAMER, ZINC BINDING, PYRIMIDINE METABOLISM, SALVAGE, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ux1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ux1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

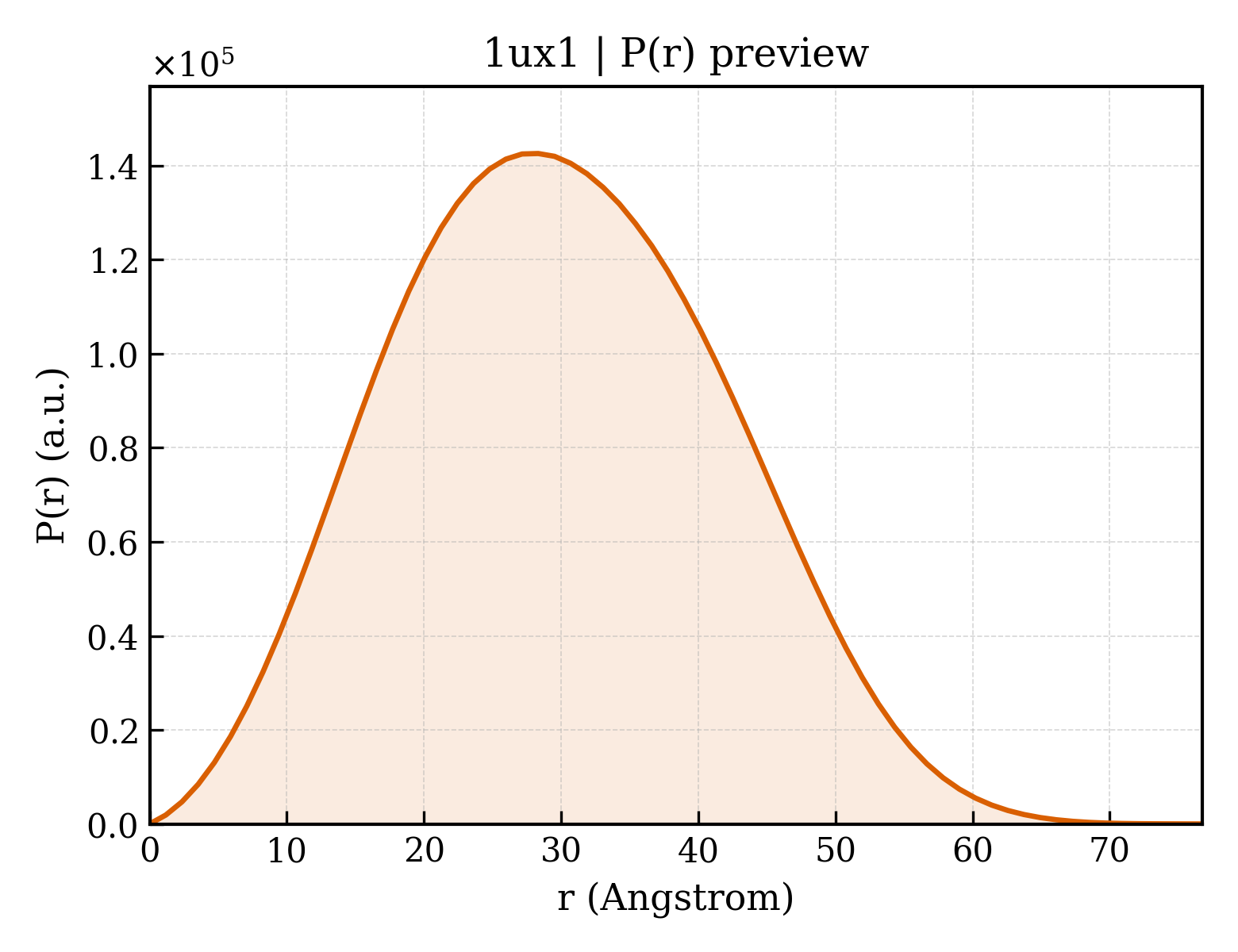

1ux1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.86 Å
Rg (electron density)	21.98 Å
Total Rg	22.79 Å
Atom count	4016
Residues	522
Excluded volume	71621 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ux1__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	CYTIDINE DEAMINASE
Molecular weight formula_weight	14875.0 kDa
EC 编号 ec_number	3.5.4.5
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4114

MNRQELITEALKARDMAYAPYSKFQVGAALLTKDGKVYRGCNIENAAYSMCNHAEQTALFKAVSEGDTEFQMLAVAADTPGPVSPCGACRQVISELCTKDVIVVLTNLQGQIKEMTVEELLPGAFSSEDLHDERKL

Source Source

Source organism organism	BACILLUS SUBTILIS
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	TETRAHYDRODEOXYURIDINE
Molecular weight formula_weight	230.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	98

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ux1a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.1 — Cytidine deaminase

Domain ID domain_id	d1ux1b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.1 — Cytidine deaminase

Domain ID domain_id	d1ux1c_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.1 — Cytidine deaminase

Domain ID domain_id	d1ux1d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.1 — Cytidine deaminase-like
Family Family family	c.97.1.1 — Cytidine deaminase

CATH v4.4 (4 domains)

Domain ID domain_id	1ux1A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	1ux1B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	1ux1C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	1ux1D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

▶

Unit-cell length a length_a	62.484 Å
Unit-cell length b length_b	62.484 Å
Unit-cell length c length_c	221.604 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.360 Å
Low-resolution limit resolution_low	24.660 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	0.2450
