1uxy
MURB MUTANT WITH SER 229 REPLACED BY ALA, COMPLEX WITH ENOLPYRUVYL-UDP-N-ACETYLGLUCOSAMINE

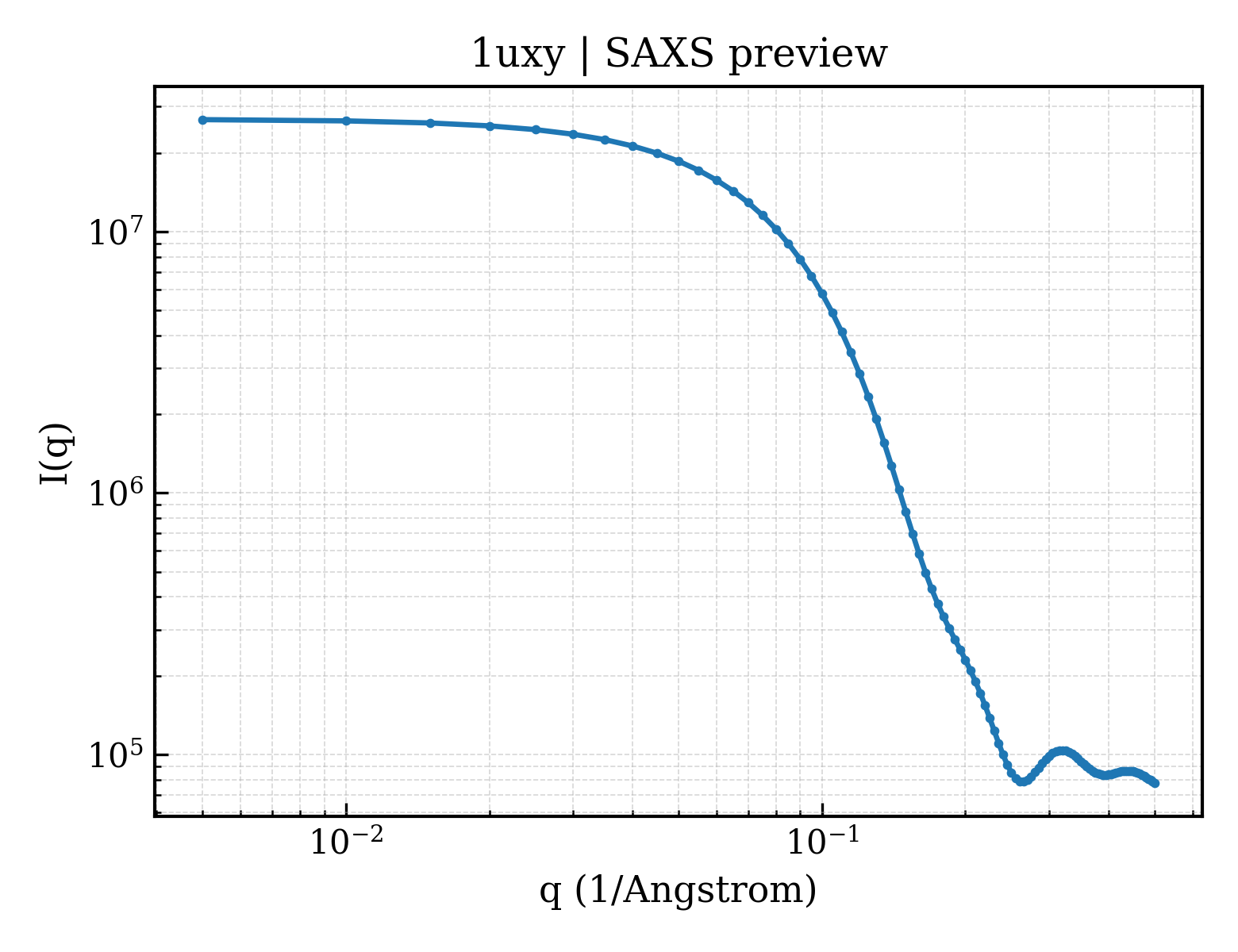

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1uxy |
| 沉积日期 deposition_date | 1996-11-08 |
| 结构标题 title | MURB MUTANT WITH SER 229 REPLACED BY ALA, COMPLEX WITH ENOLPYRUVYL-UDP-N-ACETYLGLUCOSAMINE |
| 关键词 keywords | PEPTIDOGLYCAN SYNTHESIS, CELL WALL, CELL DIVISION, OXIDOREDUCTASE, NADP, FLAVOPROTEIN, FAD; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 21.04 Å |
| 回转半径 Rg (电子) rg_electron | 20.07 Å |
| 零角强度 I(0) i0 | 26862500.00 |
| 分子量 molecular_weight | 39045.0 kDa |
| 排除体积 excluded_volume | 48526 ų |
| 包络体积 envelope_volume | 54741 ų |
| 水化壳体积 shell_volume | 22435 ų |
| 包络直径 envelope_diameter | 65.9 Å |
| 壳层 Rg shell_rg | 26.91 Å |
| 包络 Rg envelope_rg | 20.34 Å |
| 形状 Rg shape_rg | 20.09 Å |
| 总 Rg total_rg | 20.88 Å |
| 总原子数 total_atoms | 2750 |
| 残基数 n_residues | 340 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 65.2 Å |
| Rg (实空间) rg_real | 20.93 Å |
| Rg 误差 (实空间) rg_real_error | 0.28 Å |
| I(0) (实空间) i0_real | 2.6860e+07 |
| I(0) 误差 (实空间) i0_real_error | 3.0460e+05 |
| Rg (倒空间) rg_reciprocal | 20.95 Å |
| I(0) (倒空间) i0_reciprocal | 26860000.0000 |
| 解质量估计 total_estimate | 0.9046 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 25.5 Å |
| 偏度 Skewness skewness | 0.179 |
| 峰度 Kurtosis kurtosis | -0.497 |
| 角度范围 angular_range | — – 0.3800 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 6970000.0000 |
| 实空间数据点数 n_real_points | 70 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.924; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.989 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 5 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d1uxya1 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.145 — FAD-binding/transporter-associated domain-like |
| 超家族 Superfamily superfamily | d.145.1 — FAD-binding/transporter-associated domain-like |
| 家族 Family family | d.145.1.2 — Uridine diphospho-N-Acetylenolpyruvylglucosamine reductase (MurB), N-terminal domain |
| 结构域编号 domain_id | d1uxya2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.146 — Uridine diphospho-N-Acetylenolpyruvylglucosamine reductase, MurB, C-terminal domain |
| 超家族 Superfamily superfamily | d.146.1 — Uridine diphospho-N-Acetylenolpyruvylglucosamine reductase, MurB, C-terminal domain |
| 家族 Family family | d.146.1.1 — Uridine diphospho-N-Acetylenolpyruvylglucosamine reductase, MurB, C-terminal domain |
CATH v4.4 (3 domains)
| 结构域编号 domain_id | 1uxyA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 78 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — UDP-N-acetylenolpyruvoylglucosamine reductase, C-terminal domain |
| 结构域编号 domain_id | 1uxyA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 43 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase, domain 2 |
| 结构域编号 domain_id | 1uxyA03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 465 — Uridine Diphospho-n-acetylenolpyruvylglucosamine Reductase; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 10 — |
