NEISSERIA MENINGITIDIS
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | PENTAETHYLENE GLYCOL MONODECYL ETHER × 1 | Consistent with protein count |
| UniProt name | Q8GKS5 |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain X； PDBConstruct 1–308； UniProt 776–1083 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1uyo |
| Deposition date deposition_date | 2004-03-02 |
| Structure title title | Translocator domain of autotransporter NalP from Neisseria meningitidis |
| Keywords keywords | AUTOTRANSPORTER, TRANSLOCATOR DOMAIN, MEMBRANE PROTEIN, OUTER MEMBRANE, BETA-DOMAIN, BETA-BARREL; MEMBRANE PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

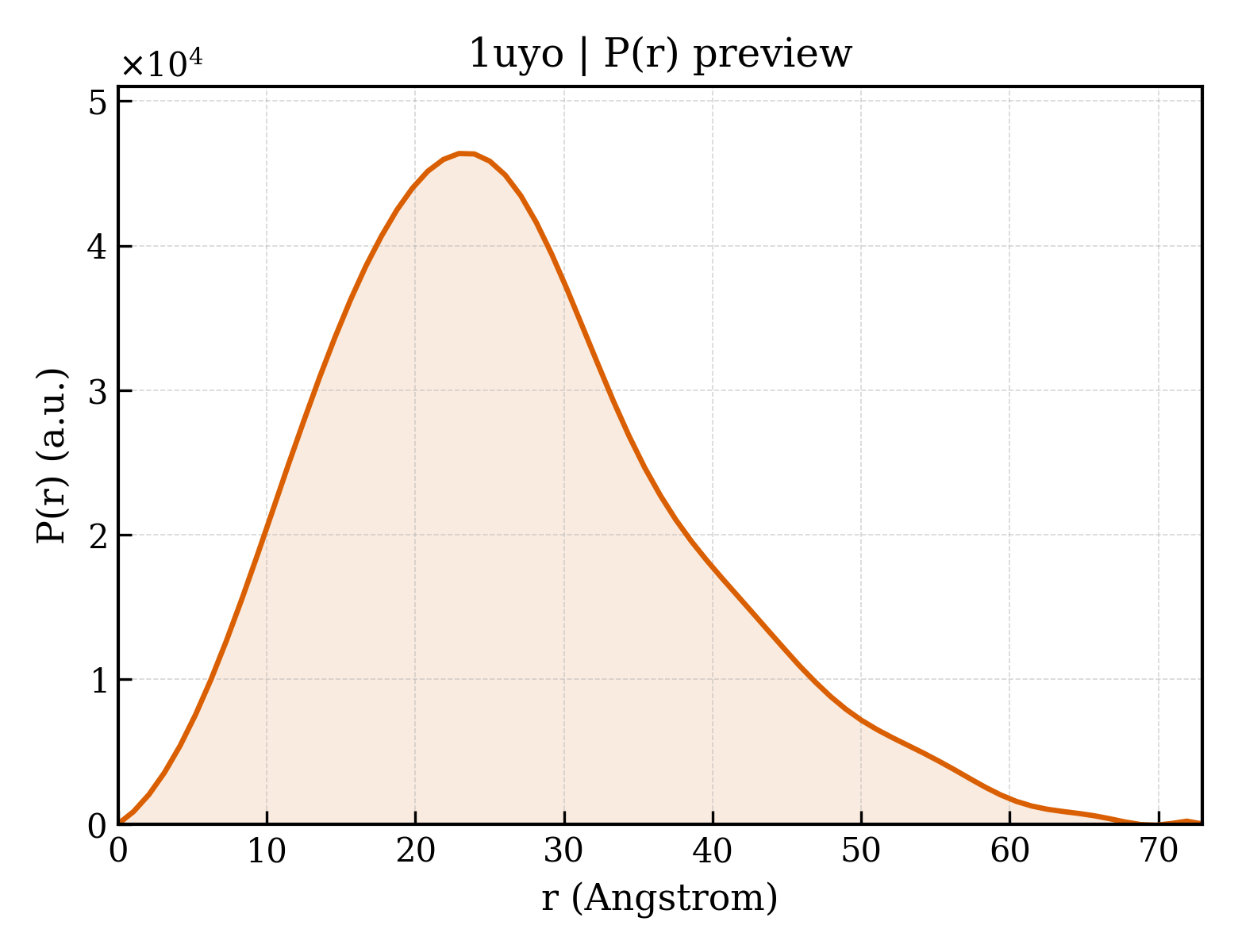

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 20.26 Å |
| Rg (electron density) | 19.65 Å |
| Total Rg | 20.33 Å |
| Atom count | 1968 |
| Residues | 272 |
| Excluded volume | 34388 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1uyox_ |
| Class class | f — Membrane and cell surface proteins and peptides |
| Fold Fold fold | f.4 — Transmembrane beta-barrels |
| Superfamily Superfamily superfamily | f.4.5 — Autotransporter |
| Family Family family | f.4.5.1 — Autotransporter |
| Domain ID domain_id | 1uyoX00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 40 — Beta Barrel |
| Topology topology | 128 — Lipocalin |
| Homologous superfamily homologous superfamily | 130 — Autotransporter beta-domain |
