SAXSdb — 1uz5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

402AA LONG HYPOTHETICAL MOLYBDOPTERIN BIOSYNTHESIS MOEA PROTEIN

PYROCOCCUS HORIKOSHII

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 6 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O58335
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–402； UniProt 1–402

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1uz5
Deposition date deposition_date	2004-03-05
Structure title title	The Crystal Structure of molybdopterin biosynthesis moea protein from Pyrococcus horikosii
Keywords keywords	;MOLYBDOPTERIN BIOSYNTHESIS, MOEA MOLYBDOPTERIN, SYNTHESIS, MOCF BIOSYNTHESIS, RIKEN STRUCTURAL GENOMICS/PROTEOMICS INITIATIVE, RSGI, STRUCTURAL GENOMICS ;; MOLYBDOPTERIN BIOSYNTHESIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1uz5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1uz5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

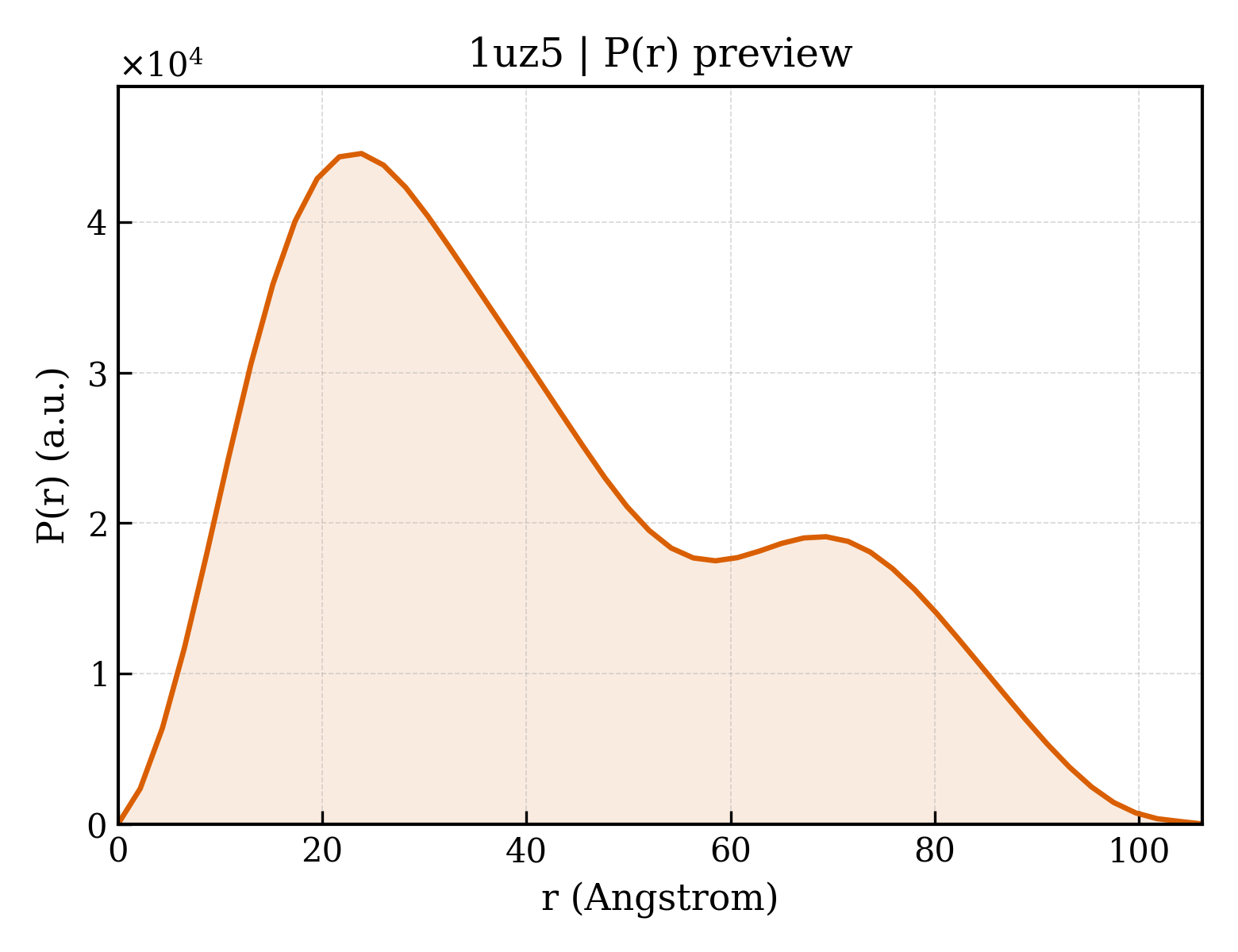

1uz5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.06 Å
Rg (electron density)	32.26 Å
Total Rg	32.38 Å
Atom count	2949
Residues	391
Excluded volume	53238 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1uz5__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	402AA LONG HYPOTHETICAL MOLYBDOPTERIN BIOSYNTHESIS MOEA PROTEIN
Molecular weight formula_weight	42854.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3195

MAFLKVVPLEKALEVVQSFKISPGIEEVPIEKGLGRIAAEDIYSPIDVPPFDRATVDGYAVRAEDTFMASEASPVRLKVIGSVHAGEEPKFKLGKGEAAYISTGAMLPGNADAVIQFEDVERVNGEILIYKPAYPGLGVMKKGIDIEKGRLLVKKGERLGFKQTALLSAVGINKVKVFRKPKVAVISTGNEIVPPGNELKPGQIYDINGRALCDAINELGGEGIFMGVARDDKESLKALIEKAVNVGDVVVISGGASGGTKDLTASVIEELGEVKVHGIAIQPGKPTIIGVIKGKPVFGLPGYPTSCLTNFTLLVVPLLLRALGREGKIGKKVARLKHKVFSVKGRRQFLPVKLEGDLAVPILKGSGAVTSFIDADGFVEIPETVESLDEGEEVEVTLFKGW

Source Source

Source organism organism	PYROCOCCUS HORIKOSHII
NCBI taxonomy ID ncbi_taxonomy_id	70601
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	242

▼

6. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1uz5a1
Class class	b — All beta proteins
Fold Fold fold	b.85 — beta-clip
Superfamily Superfamily superfamily	b.85.6 — MoeA C-terminal domain-like
Family Family family	b.85.6.1 — MoeA C-terminal domain-like

Domain ID domain_id	d1uz5a2
Class class	b — All beta proteins
Fold Fold fold	b.103 — MoeA N-terminal region -like
Superfamily Superfamily superfamily	b.103.1 — MoeA N-terminal region -like
Family Family family	b.103.1.1 — MoeA N-terminal region -like

Domain ID domain_id	d1uz5a3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.57 — Molybdenum cofactor biosynthesis proteins
Superfamily Superfamily superfamily	c.57.1 — Molybdenum cofactor biosynthesis proteins
Family Family family	c.57.1.2 — MoeA central domain-like

CATH v4.4 (4 domains)

Domain ID domain_id	1uz5A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	980 — Molybdenum Cofactor Biosythetic Enzyme; Chain A
Homologous superfamily homologous superfamily	10 — MoaB/Mog-like domain

Domain ID domain_id	1uz5A02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	105 — Molybdopterin biosynthesis moea protein, domain 2
Homologous superfamily homologous superfamily	10 — Molybdopterin biosynthesis moea protein, domain 2

Domain ID domain_id	1uz5A03
Class class	2 — Mainly Beta
Architecture architecture	170 — Beta Complex
Topology topology	190 — Molybdopterin biosynthesis moeA protein; domain 3
Homologous superfamily homologous superfamily	11 — Molybdopterin biosynthesis moea protein, domain 3.

Domain ID domain_id	1uz5A04
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	340 — Beta-clip
Homologous superfamily homologous superfamily	10 — MoeA, C-terminal, domain IV

▶

Unit-cell length a length_a	181.375 Å
Unit-cell length b length_b	181.375 Å
Unit-cell length c length_c	71.311 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	2.050 Å
Low-resolution limit resolution_low	42.210 Å
R factor r_factor	0.2180
R_work r_work	0.2180
R_free r_free	0.2470

The Crystal Structure of molybdopterin biosynthesis moea protein from Pyrococcus horikosii
