SAXSdb — 1uzg

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1uzg
沉积日期 deposition_date	2004-03-11
结构标题 title	CRYSTAL STRUCTURE OF THE DENGUE TYPE 3 VIRUS ENVELOPE PROTEIN
关键词 keywords	VIRAL PROTEIN, MEMBRANE FUSION, FLAVIVIRUS, FUSION LOOP, CLASS 2 FUSION PROTEIN, GLYCOPROTEIN, ENVELOPE PROTEIN; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	42.86 Å
回转半径 Rg (电子) rg_electron	43.81 Å
零角强度 I(0) i0	120809000.00
分子量 molecular_weight	88548.0 kDa
排除体积 excluded_volume	110800 Å³
包络体积 envelope_volume	158280 Å³
水化壳体积 shell_volume	34820 Å³
包络直径 envelope_diameter	154.1 Å
壳层 Rg shell_rg	40.54 Å
包络 Rg envelope_rg	43.34 Å
形状 Rg shape_rg	43.79 Å
总 Rg total_rg	43.67 Å
总原子数 total_atoms	6200
残基数 n_residues	784
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	144.3 Å
Rg (实空间) rg_real	43.55 Å
Rg 误差 (实空间) rg_real_error	1.71 Å
I(0) (实空间) i0_real	1.2080e+08
I(0) 误差 (实空间) i0_real_error	2.3280e+06
Rg (倒空间) rg_reciprocal	42.87 Å
I(0) (倒空间) i0_reciprocal	120700000.0000
解质量估计 total_estimate	0.7337
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.2 Å
偏度 Skewness skewness	0.616
峰度 Kurtosis kurtosis	-0.399
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7298000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.639; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.476; Smooth: 0.139

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	MAJOR ENVELOPE PROTEIN E
分子量 formula_weight	43170.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6214

MRCVGVGNRDFVEGLSGATWVDVVLEHGGCVTTMAKNKPTLDIELQKTEATQLATLRKLCIEGKITNITTDSRCPTQGEAILPEEQDQNYVCKHTYVDRGWGNGCGLFGKGSLVTCAKFQCLESIEGKIVQHENLKYTVIITVHTGDQHQVGNETQGVTAEITSQASTAEAILPEYGTLGLECSPRTGLDFNEMILLTMKDKAWMVHRQWFFDLPLPWTSGATTKTPTWNRKELLVTFKNAHAKKQEVVVLGSQEGAMHTALTGATEIQTSGGTSIFAGHLKCRLKMDKLKLKGMSYAMCLNTFVLKKEVSETQHGTILIKVEYKGEDAPCKIPFSTEDGQGKAHNGRLITANPVVTKKEEPVNIEAEPPFGESNIVIGIGDKALKINWYRK

来源 Source

来源生物 organism	DENGUE VIRUS TYPE 3
NCBI 分类编号 ncbi_taxonomy_id	11069
宿主生物 host_organism	DROSOPHILA MELANOGASTER

Entity 2 branched

描述 description	beta-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	367.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	;beta-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1057.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	;alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	732.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 6 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	14

▼

6. 折叠分类 (SCOP + CATH) 8 domains

CATH v4.4 (8 domains)

结构域编号 domain_id	1uzgA01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	98 — Tick-borne Encephalitis virus Glycoprotein; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Tick-borne Encephalitis virus Glycoprotein, domain 1

结构域编号 domain_id	1uzgA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	67 — Viral Envelope Glycoprotein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Viral Envelope Glycoprotein, domain 2

结构域编号 domain_id	1uzgA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	387 — Viral Envelope Glycoprotein; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Viral Envelope Glycoprotein, domain 3

结构域编号 domain_id	1uzgA04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	350 —

结构域编号 domain_id	1uzgB01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	98 — Tick-borne Encephalitis virus Glycoprotein; domain 1
同源超家族 H-superfamily homologous superfamily	10 — Tick-borne Encephalitis virus Glycoprotein, domain 1

结构域编号 domain_id	1uzgB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	67 — Viral Envelope Glycoprotein; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Viral Envelope Glycoprotein, domain 2

结构域编号 domain_id	1uzgB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	387 — Viral Envelope Glycoprotein; domain 3
同源超家族 H-superfamily homologous superfamily	10 — Viral Envelope Glycoprotein, domain 3

结构域编号 domain_id	1uzgB04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	350 —

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	52.855 Å
晶胞边长 b length_b	68.631 Å
晶胞边长 c length_c	270.180 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.500 Å
最低分辨率 resolution_low	20.990 Å
R 因子 r_factor	0.2860
R_work r_work	0.2840
R_free r_free	0.3240

fit	/app/data/saxs_computation/uz/1uzg/1uzg.fit
pddf	/app/data/pr_computation/uz/1uzg/1uzg.pr.out
profile	/app/data/saxs_computation/uz/1uzg/1uzg.dat

CRYSTAL STRUCTURE OF THE DENGUE TYPE 3 VIRUS ENVELOPE PROTEIN

SAXS 散射曲线 SAXS Profile

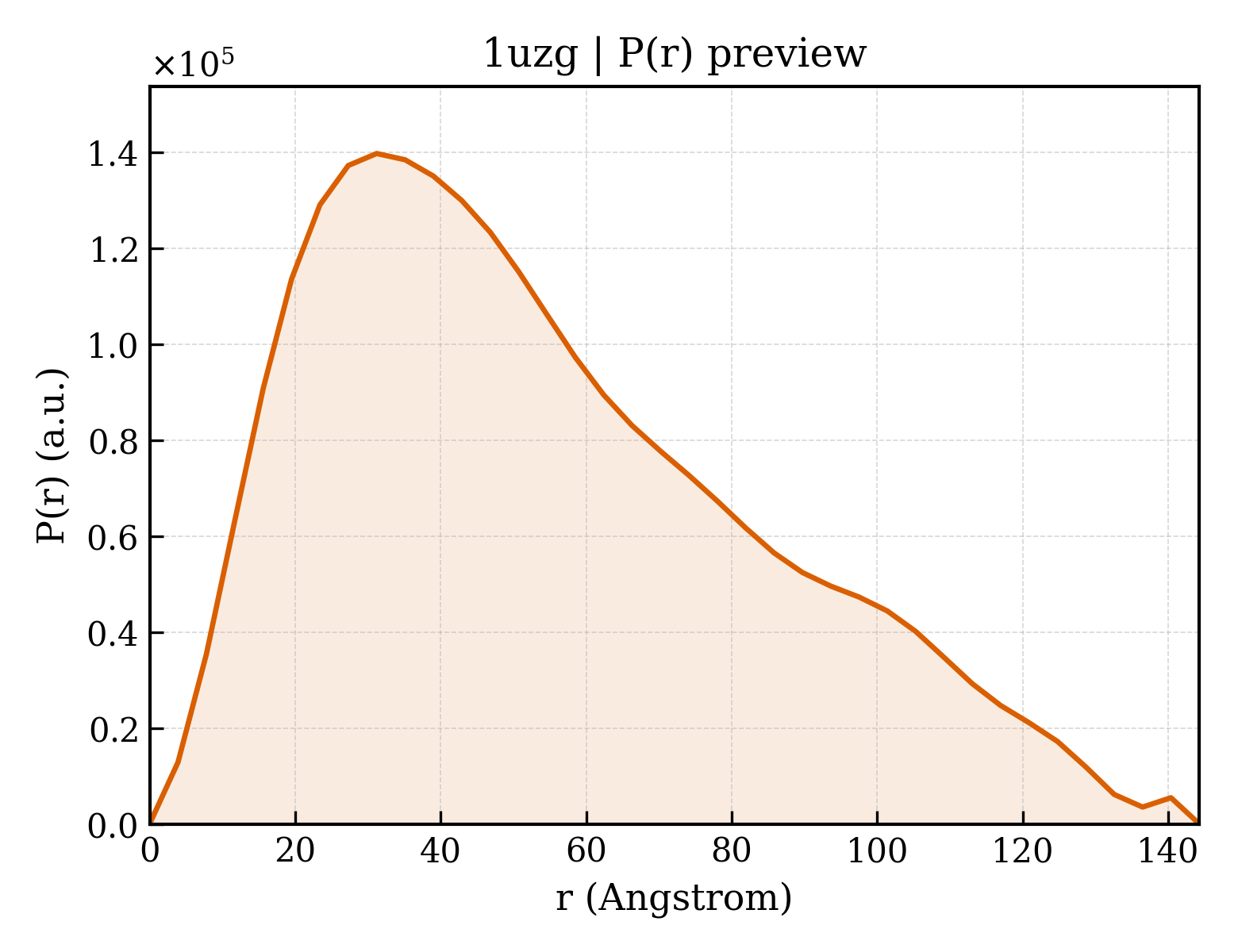

P(r) 距离分布 P(r) Distribution
