1uzr
Crystal Structure of the Class Ib Ribonucleotide Reductase R2F-2 subunit from Mycobacterium tuberculosis
SAXS 散射曲线 SAXS Profile

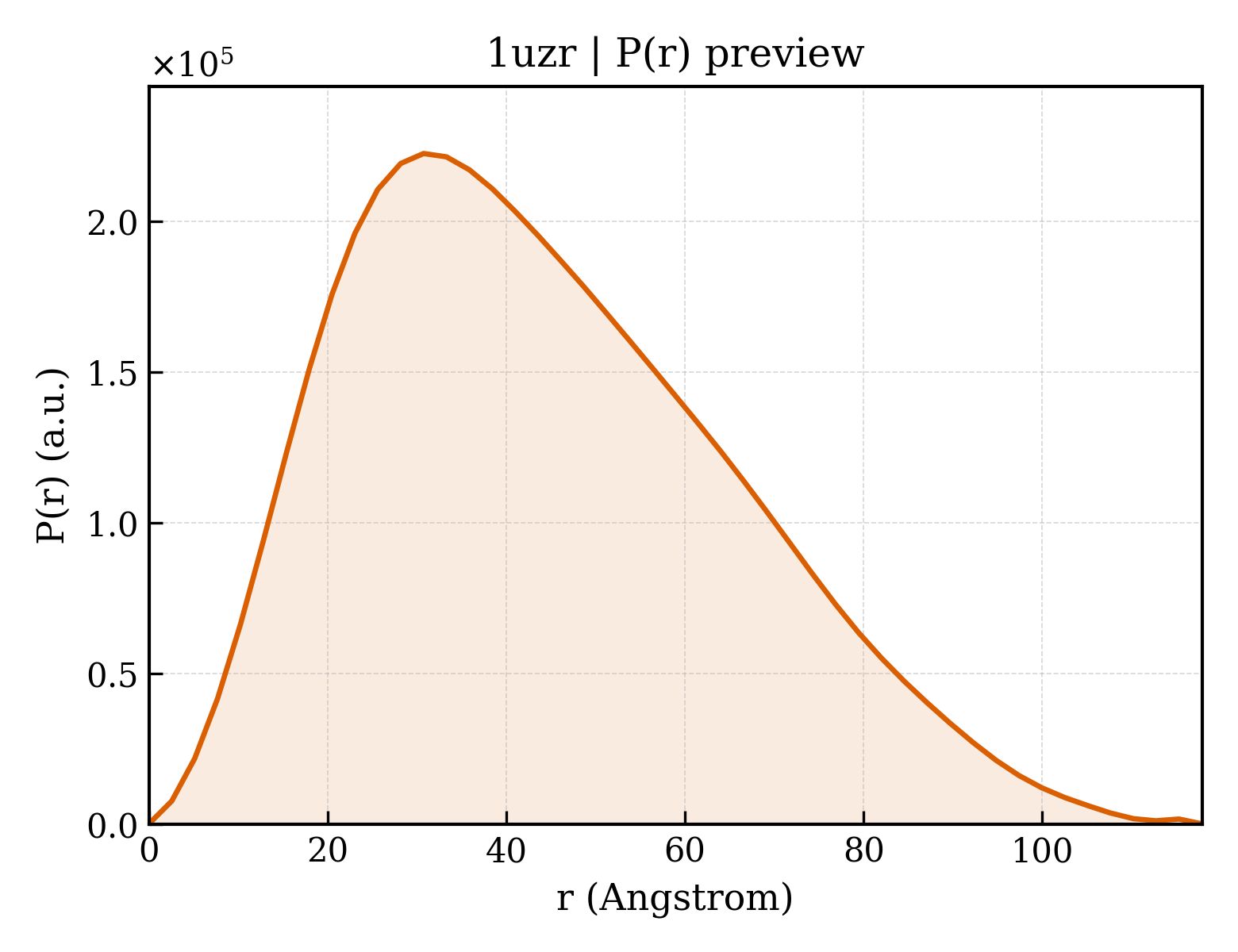

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1uzr |
| 沉积日期 deposition_date | 2004-03-15 |
| 结构标题 title | Crystal Structure of the Class Ib Ribonucleotide Reductase R2F-2 subunit from Mycobacterium tuberculosis |
| 关键词 keywords | REDUCTASE, RIBONUCLEOTIDE REDUCTASE, TUBERCULOSIS, R2F-2, RADICAL GENERATION, SMALL SUBUNIT; REDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 34.38 Å |
| 回转半径 Rg (电子) rg_electron | 34.08 Å |
| 零角强度 I(0) i0 | 148884000.00 |
| 分子量 molecular_weight | 98948.0 kDa |
| 排除体积 excluded_volume | 124000 ų |
| 包络体积 envelope_volume | 152510 ų |
| 水化壳体积 shell_volume | 38940 ų |
| 包络直径 envelope_diameter | 124.1 Å |
| 壳层 Rg shell_rg | 38.88 Å |
| 包络 Rg envelope_rg | 34.23 Å |
| 形状 Rg shape_rg | 34.08 Å |
| 总 Rg total_rg | 34.45 Å |
| 总原子数 total_atoms | 6968 |
| 残基数 n_residues | 853 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 117.9 Å |
| Rg (实空间) rg_real | 34.58 Å |
| Rg 误差 (实空间) rg_real_error | 1.20 Å |
| I(0) (实空间) i0_real | 1.4890e+08 |
| I(0) 误差 (实空间) i0_real_error | 2.5080e+06 |
| Rg (倒空间) rg_reciprocal | 34.46 Å |
| I(0) (倒空间) i0_reciprocal | 148900000.0000 |
| 解质量估计 total_estimate | 0.6300 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 30.8 Å |
| 偏度 Skewness skewness | 0.486 |
| 峰度 Kurtosis kurtosis | -0.349 |
| 角度范围 angular_range | — – 0.2300 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 68930000.0000 |
| 实空间数据点数 n_real_points | 47 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.777; Stabil: 1.000; Sysdev: 0.038; Positv: 1.000; Valcen: 0.887; Smooth: 0.855 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 6 domains
SCOP 2.08 (3 domains)
| 结构域编号 domain_id | d1uzra_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.25 — Ferritin-like |
| 超家族 Superfamily superfamily | a.25.1 — Ferritin-like |
| 家族 Family family | a.25.1.2 — Ribonucleotide reductase-like |
| 结构域编号 domain_id | d1uzrb_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.25 — Ferritin-like |
| 超家族 Superfamily superfamily | a.25.1 — Ferritin-like |
| 家族 Family family | a.25.1.2 — Ribonucleotide reductase-like |
| 结构域编号 domain_id | d1uzrc_ |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.25 — Ferritin-like |
| 超家族 Superfamily superfamily | a.25.1 — Ferritin-like |
| 家族 Family family | a.25.1.2 — Ribonucleotide reductase-like |
CATH v4.4 (3 domains)
| 结构域编号 domain_id | 1uzrA00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 620 — Ribonucleotide Reductase, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 20 — Ribonucleotide Reductase, subunit A |
| 结构域编号 domain_id | 1uzrB00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 620 — Ribonucleotide Reductase, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 20 — Ribonucleotide Reductase, subunit A |
| 结构域编号 domain_id | 1uzrC00 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 620 — Ribonucleotide Reductase, subunit A |
| 同源超家族 H-superfamily homologous superfamily | 20 — Ribonucleotide Reductase, subunit A |
