SAXSdb — 1v4v

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1v4v
沉积日期 deposition_date	2003-11-19
结构标题 title	Crystal Structure Of UDP-N-Acetylglucosamine 2-Epimerase From Thermus Thermophilus HB8
关键词 keywords	UDP-GlcNAc, Two Domains, Homodimer, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, ISOMERASE; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.78 Å
回转半径 Rg (电子) rg_electron	34.03 Å
零角强度 I(0) i0	102084000.00
分子量 molecular_weight	82184.0 kDa
排除体积 excluded_volume	103510 Å³
包络体积 envelope_volume	133420 Å³
水化壳体积 shell_volume	35661 Å³
包络直径 envelope_diameter	127.5 Å
壳层 Rg shell_rg	37.28 Å
包络 Rg envelope_rg	33.96 Å
形状 Rg shape_rg	34.04 Å
总 Rg total_rg	34.24 Å
总原子数 total_atoms	5730
残基数 n_residues	727
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	120.7 Å
Rg (实空间) rg_real	34.11 Å
Rg 误差 (实空间) rg_real_error	1.30 Å
I(0) (实空间) i0_real	1.0210e+08
I(0) 误差 (实空间) i0_real_error	1.8080e+06
Rg (倒空间) rg_reciprocal	33.90 Å
I(0) (倒空间) i0_reciprocal	102100000.0000
解质量估计 total_estimate	0.7938
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.8 Å
偏度 Skewness skewness	0.632
峰度 Kurtosis kurtosis	-0.039
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	32990000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.670; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.580; Smooth: 0.726

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	UDP-N-Acetylglucosamine 2-Epimerase
分子量 formula_weight	41402.5 kDa
EC 编号 ec_number	5.1.3.14
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	6736

MEGGMKRVVLAFGTRPEATKMAPVYLALRGIPGLKPLVLLTGQHREQLRQALSLFGIQEDRNLDVMQERQALPDLAARILPQAARALKEMGADYVLVHGDTLTTFAVAWAAFLEGIPVGHVEAGLRSGNLKEPFPEEANRRLTDVLTDLDFAPTPLAKANLLKEGKREEGILVTGQTGVDAVLLAAKLGRLPEGLPEGPYVTVTMHRRENWPLLSDLAQALKRVAEAFPHLTFVYPVHLNPVVREAVFPVLKGVRNFVLLDPLEYGSMAALMRASLLLVTDSGGLQEEGAALGVPVVVLRNVTERPEGLKAGILKLAGTDPEGVYRVVKGLLENPEELSRMRKAKNPYGDGKAGLMVARGVAWRLGLGPRPEDWLP

来源 Source

来源生物 organism	Thermus thermophilus
NCBI 分类编号 ncbi_taxonomy_id	274
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	ACETIC ACID
分子量 formula_weight	60.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	974

▼

6. 折叠分类 (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1v4va_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.87 — UDP-Glycosyltransferase/glycogen phosphorylase
超家族 Superfamily superfamily	c.87.1 — UDP-Glycosyltransferase/glycogen phosphorylase
家族 Family family	c.87.1.3 — UDP-N-acetylglucosamine 2-epimerase

结构域编号 domain_id	d1v4vb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.87 — UDP-Glycosyltransferase/glycogen phosphorylase
超家族 Superfamily superfamily	c.87.1 — UDP-Glycosyltransferase/glycogen phosphorylase
家族 Family family	c.87.1.3 — UDP-N-acetylglucosamine 2-epimerase

CATH v4.4 (4 domains)

结构域编号 domain_id	1v4vA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

结构域编号 domain_id	1v4vA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

结构域编号 domain_id	1v4vB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

结构域编号 domain_id	1v4vB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	2000 — Glycogen Phosphorylase B;

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	169.728 Å
晶胞边长 b length_b	51.448 Å
晶胞边长 c length_c	105.506 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	104.20 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	1.800 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	—
R_work r_work	0.2090
R_free r_free	0.2350

fit	/app/data/saxs_computation/v4/1v4v/1v4v.fit
pddf	/app/data/pr_computation/v4/1v4v/1v4v.pr.out
profile	/app/data/saxs_computation/v4/1v4v/1v4v.dat

Crystal Structure Of UDP-N-Acetylglucosamine 2-Epimerase From Thermus Thermophilus HB8

SAXS 散射曲线 SAXS Profile

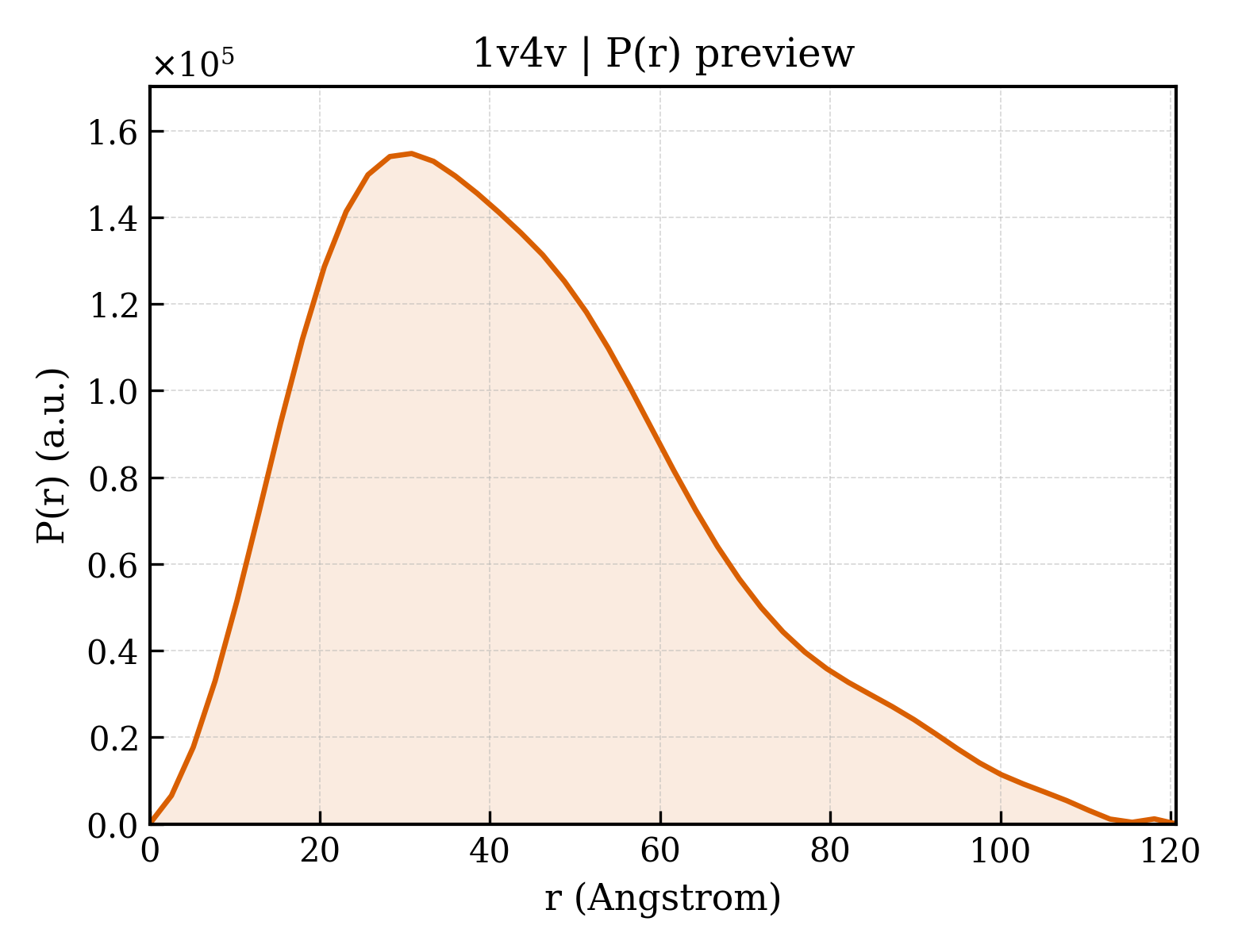

P(r) 距离分布 P(r) Distribution
