Pseudomonas putida
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein homooligomer | Homooligomer | Protein 4 | ZINC ION × 4 PYRIDOXAL-5'-PHOSPHATE × 4 water × 4 | Consistent with protein count |
| UniProt name | Q59IT3_PSEPU |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–356； UniProt 2–357 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1v72 |
| Deposition date deposition_date | 2003-12-09 |
| Structure title title | Crystal Structure of Phenylserine Aldolase from Pseudomonas Putida |
| Keywords keywords | PLP-dependent enzyme, LYASE; LYASE |
| Experimental Method method | X-RAY DIFFRACTION |

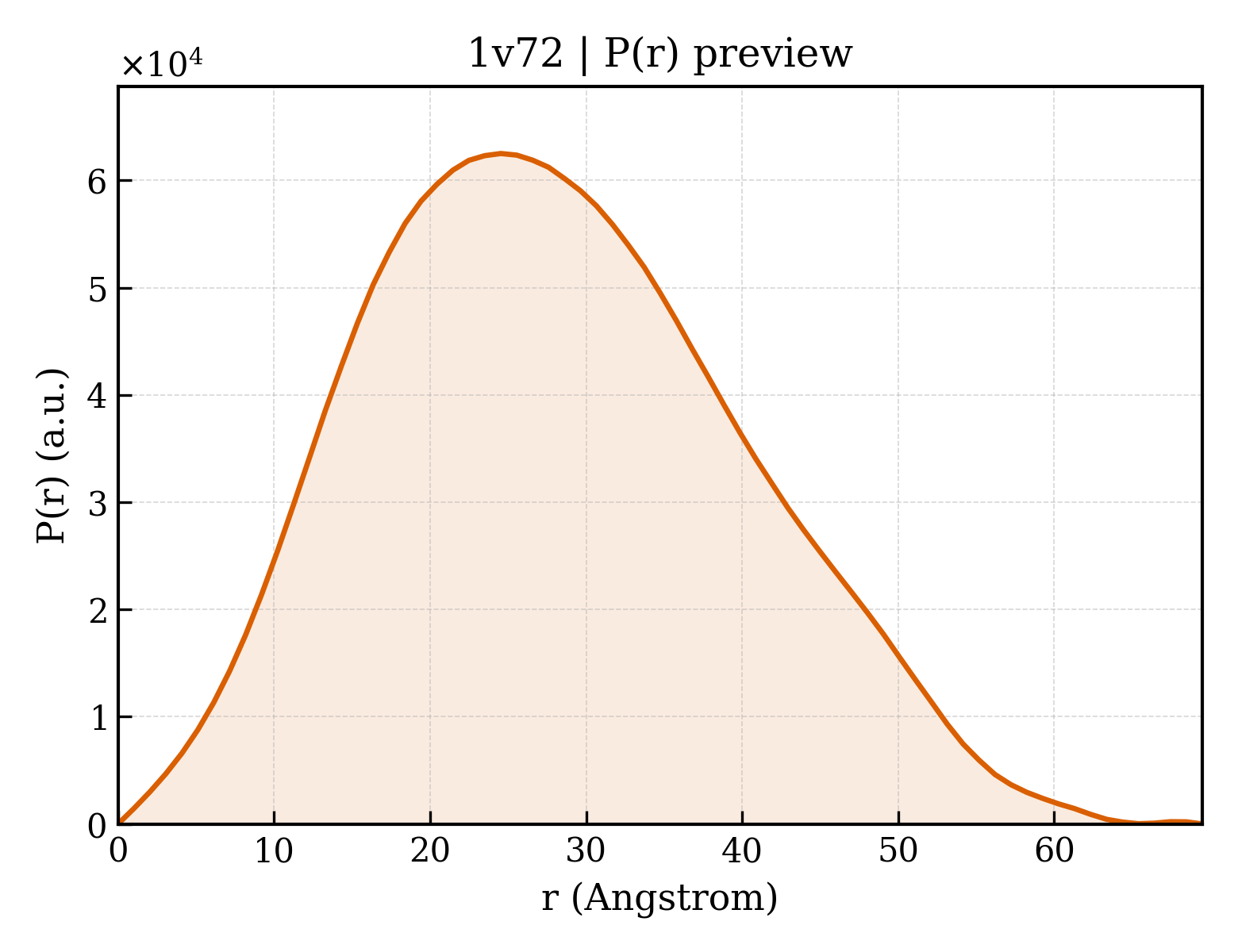

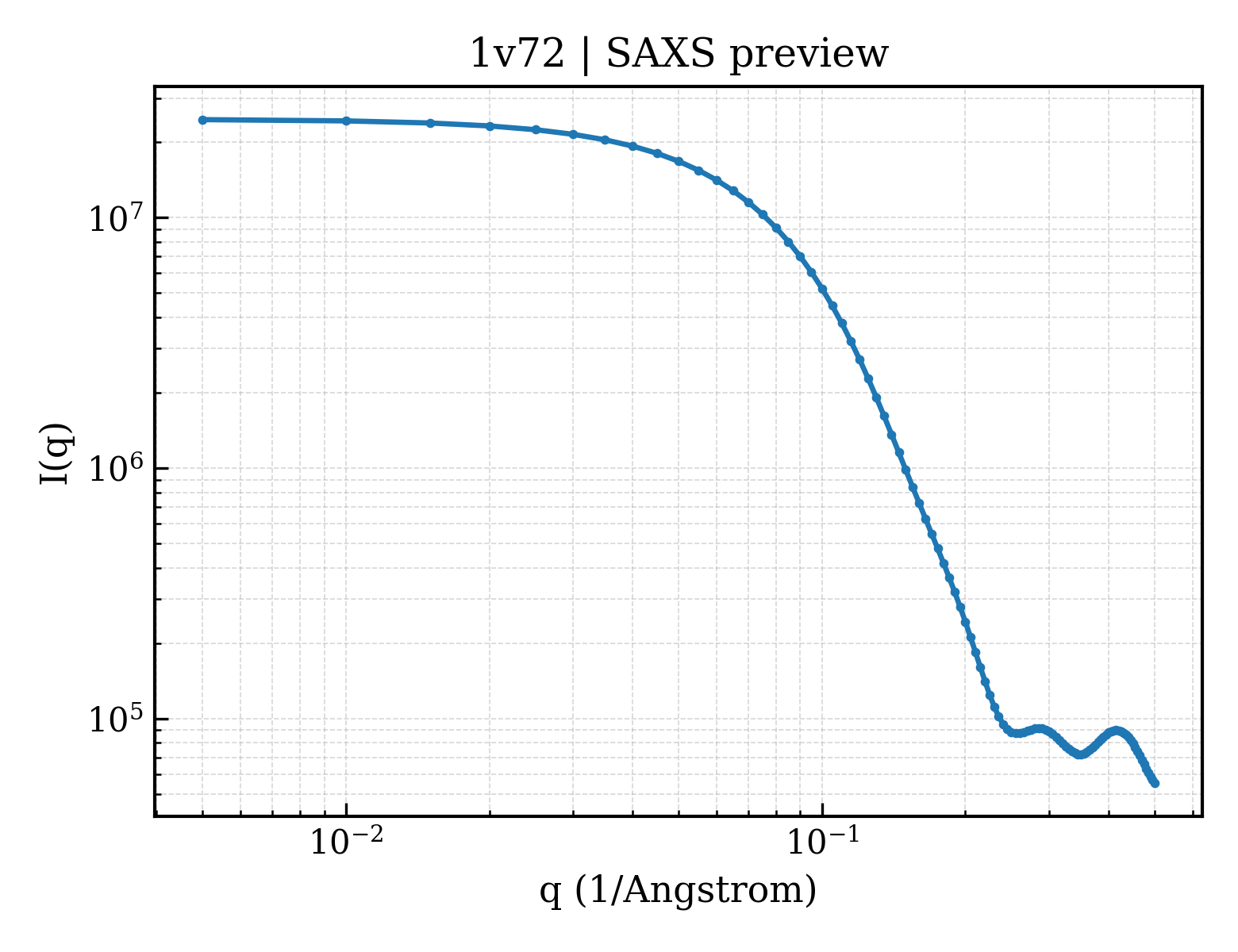

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 34.10 Å |
| Rg (electron density) | 33.64 Å |
| Total Rg | 34.15 Å |
| Atom count | 10384 |
| Residues | 1380 |
| Excluded volume | 183890 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1v72a1 |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.67 — PLP-dependent transferase-like |
| Superfamily Superfamily superfamily | c.67.1 — PLP-dependent transferases |
| Family Family family | c.67.1.1 — AAT-like |
| Domain ID domain_id | 1v72A01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 90 — Alpha-Beta Complex |
| Topology topology | 1150 — Aspartate Aminotransferase, domain 1 |
| Homologous superfamily homologous superfamily | 10 — Aspartate Aminotransferase, domain 1 |
| Domain ID domain_id | 1v72A02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 640 — Aspartate Aminotransferase; domain 2 |
| Homologous superfamily homologous superfamily | 10 — Type I PLP-dependent aspartate aminotransferase-like (Major domain) |
