Thermus thermophilus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q53WB3_THET8 |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–177； UniProt 1–177 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1v7q |
| Deposition date deposition_date | 2003-12-22 |
| Structure title title | Crystal structure of phosphoglycerate mutase from Thermus thermophilus HB8 |
| Keywords keywords | ;phosphoglycerate mutase, Thermus thermophilus, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, ISOMERASE ;; ISOMERASE |
| Experimental Method method | X-RAY DIFFRACTION |

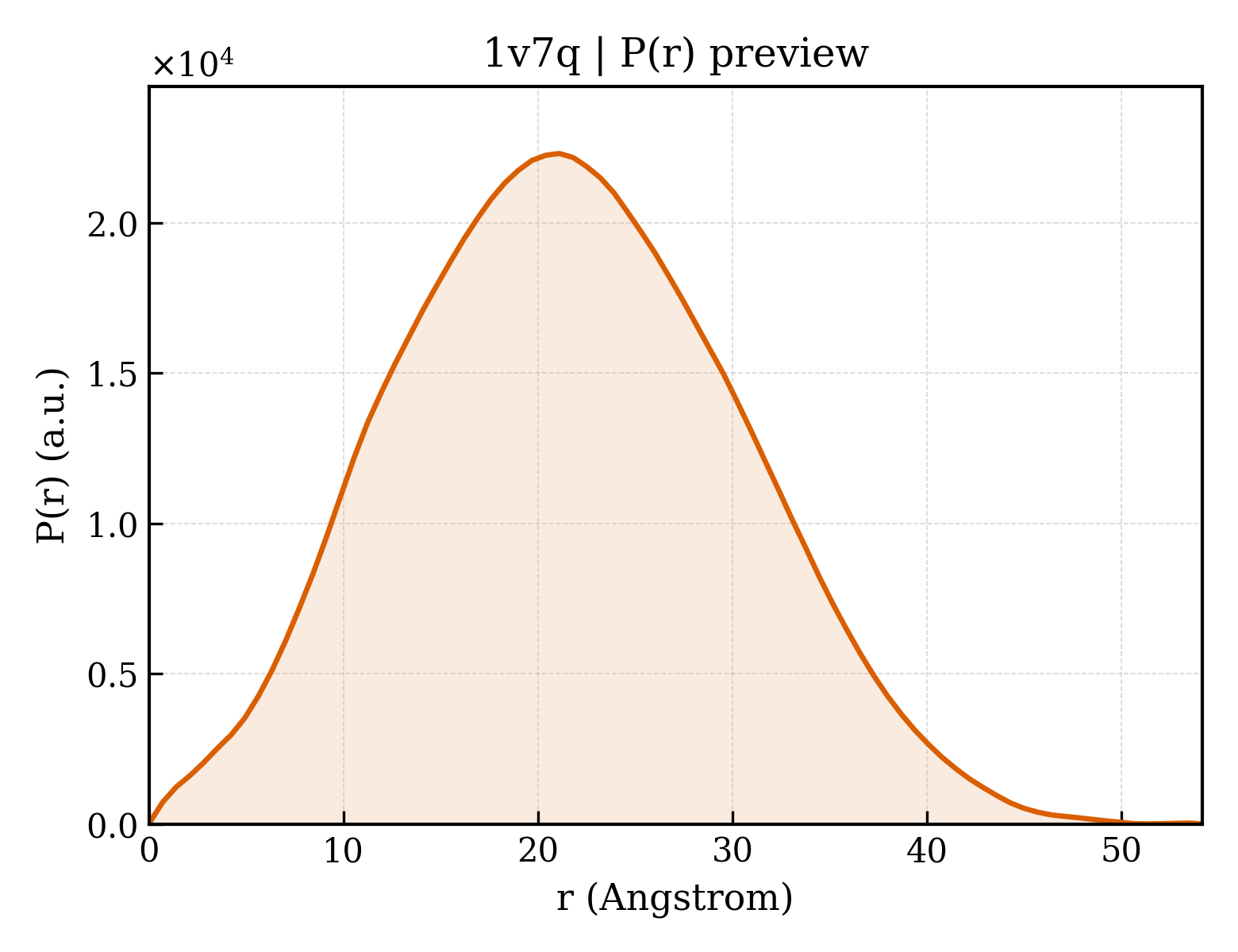

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 16.54 Å |
| Rg (electron density) | 15.29 Å |
| Total Rg | 16.51 Å |
| Atom count | 1335 |
| Residues | 169 |
| Excluded volume | 23819 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1v7qa_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.60 — Phosphoglycerate mutase-like |
| Superfamily Superfamily superfamily | c.60.1 — Phosphoglycerate mutase-like |
| Family Family family | c.60.1.1 — Cofactor-dependent phosphoglycerate mutase |
| Domain ID domain_id | 1v7qA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 1240 — Phosphoglycerate mutase-like |
