SAXSdb — 1va5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Antigen 85-C

Mycobacterium tuberculosis

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	octyl 1-thio-beta-D-glucopyranoside × 2 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	octyl 1-thio-beta-D-glucopyranoside × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A85C_MYCTU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–295； UniProt 47–340 Author chain B； PDBConstruct 2–295； UniProt 47–340

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1va5
Deposition date deposition_date	2004-02-11
Structure title title	Antigen 85C with octylthioglucoside in active site
Keywords keywords	alpha-beta hydrolase, Structural Genomics, PSI, Protein Structure Initiative, TB Structural Genomics Consortium, TBSGC, transferase; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1va5__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

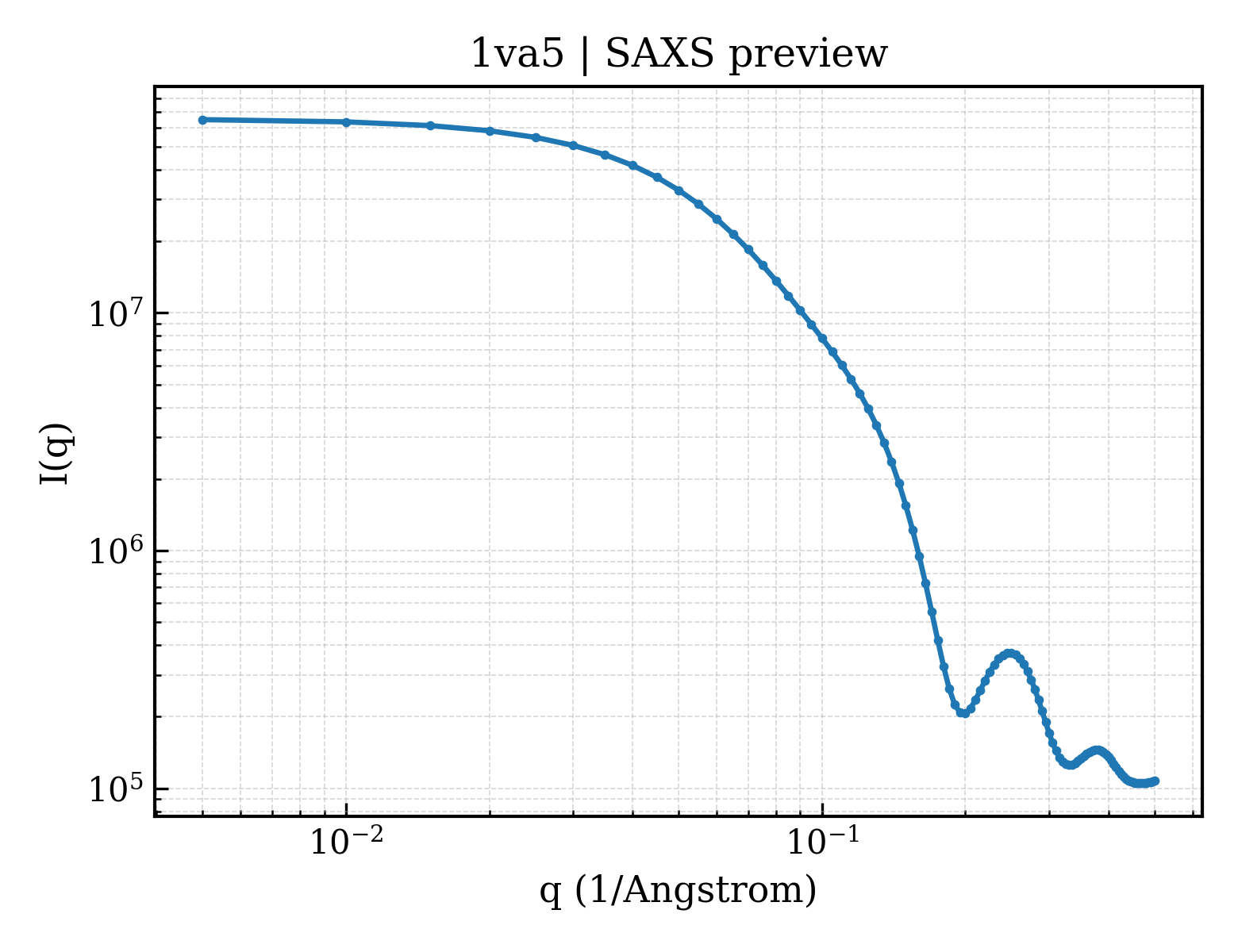

1va5__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

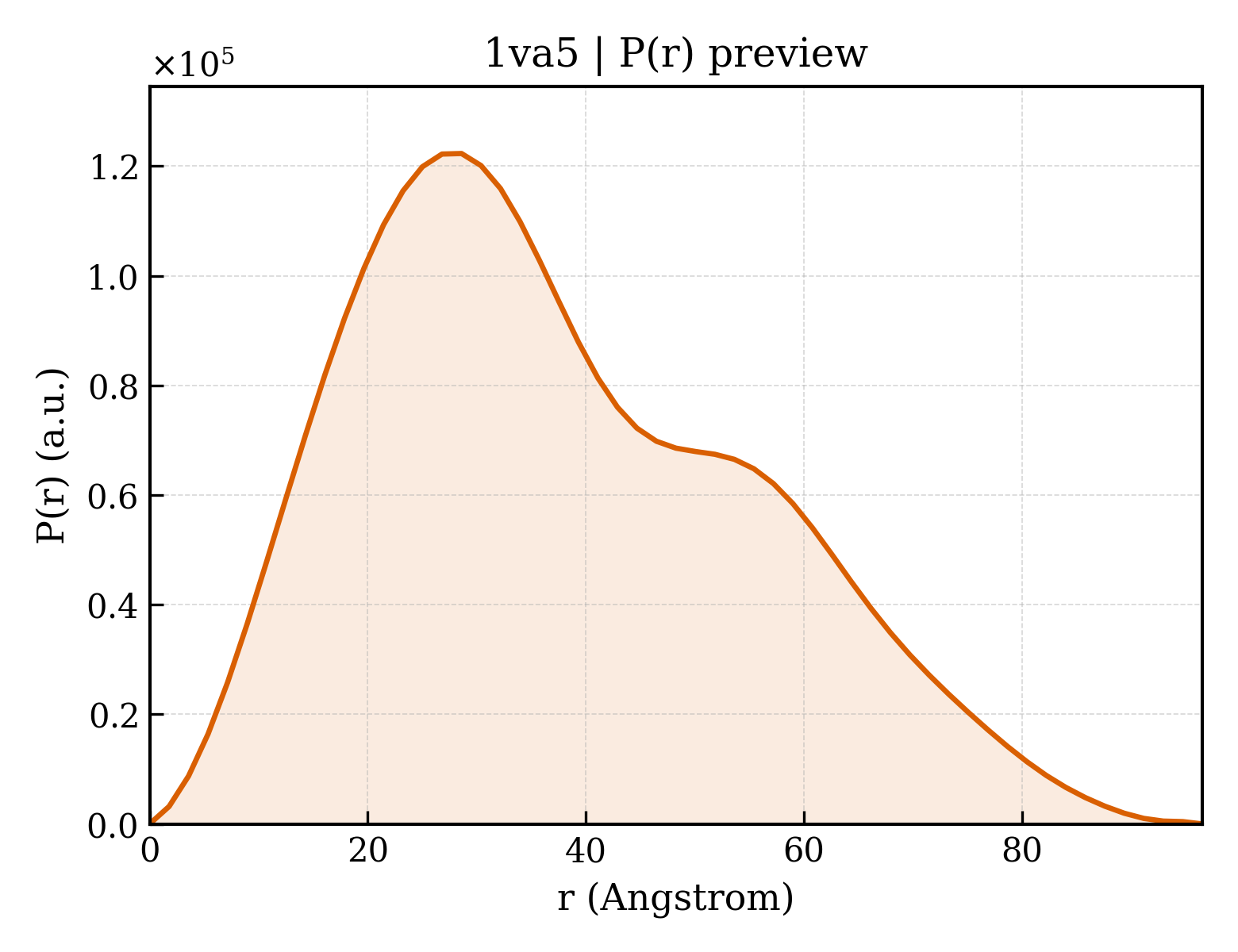

1va5__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.62 Å
Rg (electron density)	17.40 Å
Total Rg	18.36 Å
Atom count	2243
Residues	283
Excluded volume	39536 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1va5__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1va5__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Antigen 85-C
Molecular weight formula_weight	33170.7 kDa
EC 编号 ec_number	2.3.1.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4738

MFSRPGLPVEYLQVPSASMGRDIKVQFQGGGPHAVYLLDGLRAQDDYNGWDINTPAFEEYYQSGLSVIMPVGGQSSFYTDWYQPSQSNGQNYTYKWETFLTREMPAWLQANKGVSPTGNAAVGLSMSGGSALILAAYYPQQFPYAASLSGFLNPSEGWWPTLIGLAMNDSGGYNANSMWGPSSDPAWKRNDPMVQIPRLVANNTRIWVYCGNGTPSDLGGDNIPAKFLEGLTLRTNQTFRDTYAADGGRNGVFNFPPNGTHSWPYWNEQLVAMKADIQHVLNGATPPAAPAAPAALGHHHHHH

Source Source

Source organism organism	Mycobacterium tuberculosis
NCBI taxonomy ID ncbi_taxonomy_id	1773
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	octyl 1-thio-beta-D-glucopyranoside
Molecular weight formula_weight	308.4 kDa
Source method src_method	man
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	252

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1va5a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.3 — Mycobacterial antigens

Domain ID domain_id	d1va5b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.69 — alpha/beta-Hydrolases
Superfamily Superfamily superfamily	c.69.1 — alpha/beta-Hydrolases
Family Family family	c.69.1.3 — Mycobacterial antigens

CATH v4.4 (2 domains)

Domain ID domain_id	1va5A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

Domain ID domain_id	1va5B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1820 — Alpha/Beta hydrolase fold, catalytic domain

▶

Unit-cell length a length_a	144.818 Å
Unit-cell length b length_b	68.117 Å
Unit-cell length c length_c	82.281 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	119.60 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.020 Å
Low-resolution limit resolution_low	38.720 Å
R factor r_factor	0.1870
R_work r_work	0.1870
R_free r_free	0.2110
