1vdm

Crystal structure of purine phosphoribosyltransferase from Pyrococcus horikoshii Ot3

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

purine phosphoribosyltransferase

Pyrococcus horikoshii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 12	water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O57827_PYRHO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–153； UniProt 1–153 Author chain B； PDBConstruct 1–153； UniProt 1–153 Author chain C； PDBConstruct 1–153； UniProt 1–153 Author chain D； PDBConstruct 1–153； UniProt 1–153 Author chain E； PDBConstruct 1–153； UniProt 1–153 Author chain F； PDBConstruct 1–153； UniProt 1–153 Author chain G； PDBConstruct 1–153； UniProt 1–153 Author chain H； PDBConstruct 1–153； UniProt 1–153 Author chain I； PDBConstruct 1–153； UniProt 1–153 Author chain J； PDBConstruct 1–153； UniProt 1–153 Author chain K； PDBConstruct 1–153； UniProt 1–153 Author chain L； PDBConstruct 1–153； UniProt 1–153

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vdm
Deposition date deposition_date	2004-03-23
Structure title title	Crystal structure of purine phosphoribosyltransferase from Pyrococcus horikoshii Ot3
Keywords keywords	;purine phosphoribosyltransferase, Pyrococcus horikoshii, Structural Genomics, RIKEN Structural Genomics/Proteomics Initiative, RSGI, TRANSFERASE ;; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vdm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

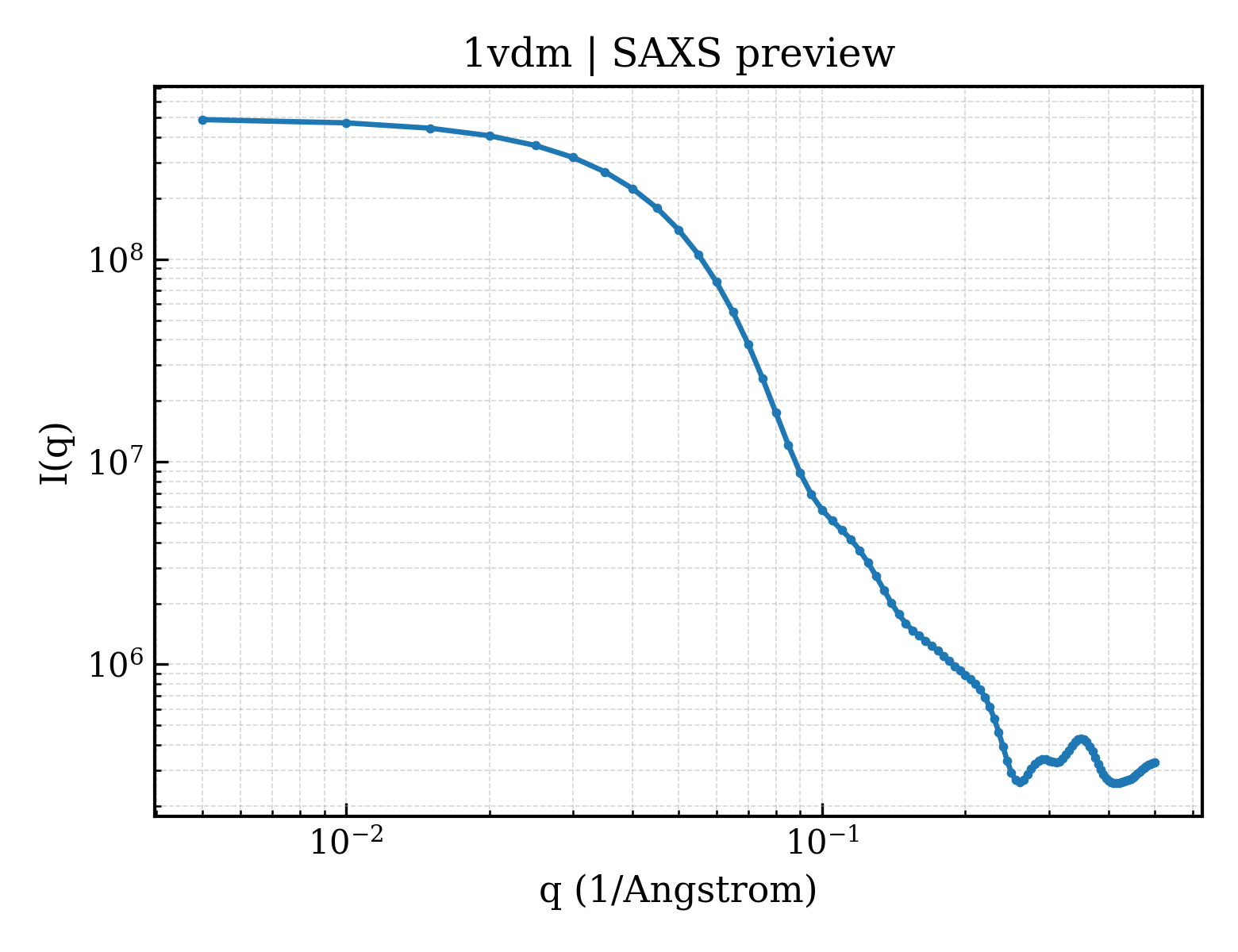

1vdm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1vdm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.29 Å
Rg (electron density)	37.38 Å
Total Rg	38.12 Å
Atom count	14432
Residues	1778
Excluded volume	264920 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vdm__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1vdma1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdmb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdmc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdmd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdme_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdmf_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdmg_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdmh_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdmi_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdmj_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdmk_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

Domain ID domain_id	d1vdml_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.61 — PRTase-like
Superfamily Superfamily superfamily	c.61.1 — PRTase-like
Family Family family	c.61.1.1 — Phosphoribosyltransferases (PRTases)

CATH v4.4 (12 domains)

Domain ID domain_id	1vdmA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmE00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmF00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmG00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmH00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmI00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmJ00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmK00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

Domain ID domain_id	1vdmL00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2020 —

▶

Unit-cell length a length_a	105.603 Å
Unit-cell length b length_b	157.350 Å
Unit-cell length c length_c	170.631 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	39.550 Å
R factor r_factor	0.2110
R_work r_work	0.2090
R_free r_free	0.2410

Description description	purine phosphoribosyltransferase
Molecular weight formula_weight	17601.7 kDa
EC 编号 ec_number	2.4.2.-
Source method src_method	man
Copy count entity_count	12

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	15181

Crystal structure of purine phosphoribosyltransferase from Pyrococcus horikoshii Ot3

1. Protein Identity and Related Structures Protein Identity & Related Structures

purine phosphoribosyltransferase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1vdm__assembly_1__model_1

1vdm__assembly_1__model_1 | I(q)

1vdm__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

7. Citations (1)

Source organism organism	Pyrococcus horikoshii
NCBI taxonomy ID ncbi_taxonomy_id	53953
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	749
