1vg9

The crystal structures of the REP-1 protein in complex with C-terminally truncated Rab7 protein

Method: X-RAY DIFFRACTION D_max: 206.0 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Rab proteins geranylgeranyltransferase component A 1

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–650	Mutation：K231Q, K462R, T473A, A483G	Ras-related protein Rab-7 × 1 （P09527） MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–650	Mutation：K231Q, K462R, T473A, A483G	Ras-related protein Rab-7 × 1 （P09527） MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 1–650	Mutation：K231Q, K462R, T473A, A483G	Ras-related protein Rab-7 × 1 （P09527） MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 1–650	Mutation：K231Q, K462R, T473A, A483G	Ras-related protein Rab-7 × 1 （P09527） MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1VG9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1LTX Structure of Rab Escort Protein-1 in complex with Rab geranylgeranyl transferase and isoprenoid Deposited 2002-05-21	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 1–650（650 aa）	Mutation：A473T, G483A, Q231K	ZN ZINC ION × 1 CL CHLORIDE ION × 1 FAR FARNESYL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；20% PEG 3350, 100mM KSCN, 100mM Namalonate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.70 Å R-free 0.272
1VG0 The crystal structures of the REP-1 protein in complex with monoprenylated Rab7 protein Deposited 2004-04-22	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–650（650 aa）	Mutation：K231Q, K462R, T473A, A483G	CL CHLORIDE ION × 1 GER GERAN-8-YL GERAN × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 3350, 0.4M diAmmonium Tartrate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.233

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RAE1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–650； UniProt 1–650 Author chain C； PDBConstruct 1–650； UniProt 1–650 Author chain E； PDBConstruct 1–650； UniProt 1–650 Author chain G； PDBConstruct 1–650； UniProt 1–650

Ras-related protein Rab-7

Rattus norvegicus

UniProt P09527

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–185	Fragment：GTPase domain	Rab proteins geranylgeranyltransferase component A 1 × 1 （P37727） MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 1–185	Fragment：GTPase domain	Rab proteins geranylgeranyltransferase component A 1 × 1 （P37727） MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 1–185	Fragment：GTPase domain	Rab proteins geranylgeranyltransferase component A 1 × 1 （P37727） MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250
4	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain H； UniProt 1–185	Fragment：GTPase domain	Rab proteins geranylgeranyltransferase component A 1 × 1 （P37727） MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 1VG9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1VG0 The crystal structures of the REP-1 protein in complex with monoprenylated Rab7 protein Deposited 2004-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–207（207 aa）	Not recorded	CL CHLORIDE ION × 1 GER GERAN-8-YL GERAN × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 3350, 0.4M diAmmonium Tartrate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.233
1VG1 GDP-Bound Rab7 Deposited 2004-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–185（185 aa） Fragment：Gtpase Domain	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；25% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.247
1VG8 GPPNHP-Bound Rab7 Deposited 2004-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–207（207 aa）	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；24% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.224
1VG8 GPPNHP-Bound Rab7 Deposited 2004-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–207（207 aa）	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；24% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.224
1VG8 GPPNHP-Bound Rab7 Deposited 2004-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–207（207 aa）	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；24% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.224
1VG8 GPPNHP-Bound Rab7 Deposited 2004-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–207（207 aa）	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；24% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.224

3 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RAB7_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–185； UniProt 1–185 Author chain D； PDBConstruct 1–185； UniProt 1–185 Author chain F； PDBConstruct 1–185； UniProt 1–185 Author chain H； PDBConstruct 1–185； UniProt 1–185

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vg9
Deposition date deposition_date	2004-04-23
Structure title title	The crystal structures of the REP-1 protein in complex with C-terminally truncated Rab7 protein
Keywords keywords	RAB PRENYLATION, POST-TRANSLATIONAL MODIFICATION, PROTEIN BINDING-PROTEIN TRANSPORT COMPLEX; PROTEIN BINDING/PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	72.26 Å
Radius of gyration Rg (electron density) rg_electron	72.82 Å
Forward intensity I(0) i0	1329240000.00
Molecular weight molecular_weight	307440.0 kDa
Excluded volume excluded_volume	383840 Å³
Envelope volume envelope_volume	614990 Å³
Hydration-shell volume shell_volume	70687 Å³
Envelope diameter envelope_diameter	228.6 Å
Shell Rg shell_rg	72.74 Å
Envelope Rg envelope_rg	69.73 Å
Shape Rg shape_rg	72.82 Å
Total Rg total_rg	72.79 Å
Total atoms total_atoms	21562
Residues n_residues	2688
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

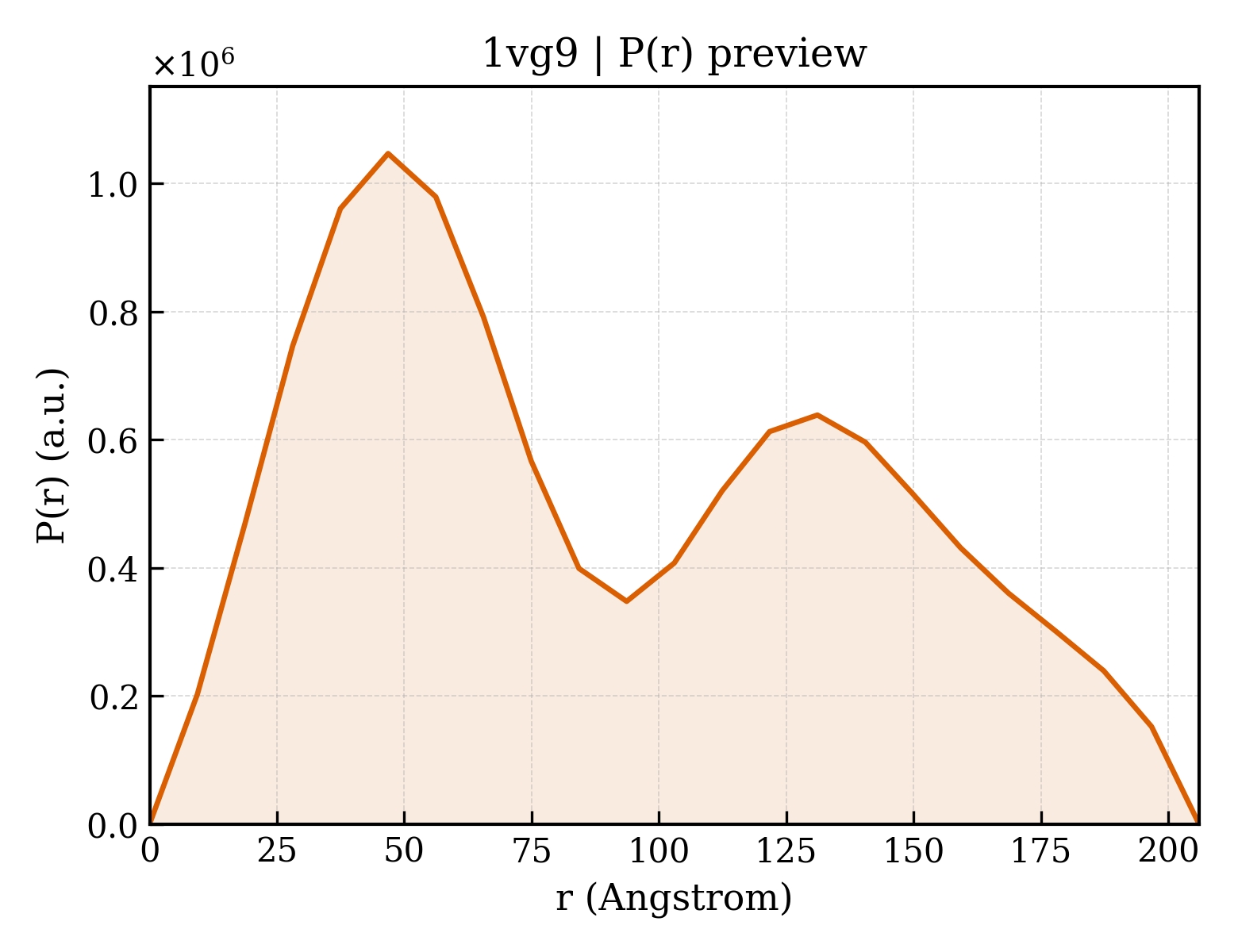

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	206.0 Å
Rg (real space) rg_real	72.68 Å
Rg uncertainty (real space) rg_real_error	1.48 Å
I(0) (real space) i0_real	1.3280e+09
I(0) uncertainty (real space) i0_real_error	2.5050e+07
Rg (reciprocal space) rg_reciprocal	69.83 Å
I(0) (reciprocal space) i0_reciprocal	1321000000.0000
Solution quality estimate total_estimate	0.6593
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	46.8 Å
Skewness Skewness skewness	0.344
Kurtosis Kurtosis kurtosis	-1.095
Angular range angular_range	— – 0.1100 Å⁻¹
Current regularization parameter α current_alpha	0.0060
Highest regularization parameter α highest_alpha	66120000.0000
Real-space data points n_real_points	23
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.335; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.563; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Rab proteins geranylgeranyltransferase component A 1
Molecular weight formula_weight	72622.2 kDa
Mutation mutation	K231Q, K462R, T473A, A483G
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G
Atom count atom_count	22604

MADNLPSDFDVIVIGTGLPESIIAAACSRSGQRVLHVDSRSYYGGNWASFSFSGLLSWLKEYQENNDVVTENSMWQEQILENEEAIPLSSKDKTIQHVEVFCYASQDLHKDVEEAGALQKNHASVTSAQSAEAAEAAETSCLPTAVEPLSMGSCEIPAEQSQCPGPESSPEVNDAEATGKKENSDAKSSTEEPSENVPKVQDNTETPKKNRITYSQIIKEGRRFNIDLVSKLLYSRGLLIDLLIKSNVSRYAEFKNITRILAFREGTVEQVPCSRADVFNSKQLTMVEKRMLMKFLTFCVEYEEHPDEYRAYEGTTFSEYLKTQKLTPNLQYFVLHSIAMTSETTSCTVDGLKATKKFLQCLGRYGNTPFLFPLYGQGELPQCFCRMCAVFGGIYCLRHSVQCLVVDKESRKCKAVIDQFGQRIISKHFIIEDSYLSENTCSRVQYRQISRAVLITDGSVLRTDADQQVSILTVPAEEPGSFAVRVIELCSSTMTCMKGTYLVHLTCMSSKTAREDLERVVQKLFTPYTEIEAENEQVEKPRLLWALYFNMRDSSDISRDCYNDLPSNVYVCSGPDSGLGNDNAVKQAETLFQQICPNEDFCPAPPNPEDIVLDGDSSQQEVPESSVTPETNSETPKESTVLGNPEEPSE

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Ras-related protein Rab-7
Molecular weight formula_weight	21121.0 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H

MTSRKKVLLKVIILGDSGVGKTSLMNQYVNKKFSNQYKATIGADFLTKEVMVDDRLVTMQIWDTAGQERFQSLGVAFYRGADCCVLVFDVTAPNTFKTLDSWRDEFLIQASPRDPENFPFVVLGNKIDLENRQVATKRAQAWCYSKNNIPYFETSAKEAINVEQAFQTIARNALKQETEVELYNE

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL
Molecular weight formula_weight	326.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1042

▼

7. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1vg9a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.3 — GDI-like N domain

Domain ID domain_id	d1vg9a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.6 — GDI-like

Domain ID domain_id	d1vg9b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1vg9c1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.3 — GDI-like N domain

Domain ID domain_id	d1vg9c2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.6 — GDI-like

Domain ID domain_id	d1vg9d_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1vg9e1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.3 — GDI-like N domain

Domain ID domain_id	d1vg9e2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.6 — GDI-like

Domain ID domain_id	d1vg9f_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d1vg9g1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.3 — FAD/NAD(P)-binding domain
Superfamily Superfamily superfamily	c.3.1 — FAD/NAD(P)-binding domain
Family Family family	c.3.1.3 — GDI-like N domain

Domain ID domain_id	d1vg9g2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.16 — FAD-linked reductases, C-terminal domain
Superfamily Superfamily superfamily	d.16.1 — FAD-linked reductases, C-terminal domain
Family Family family	d.16.1.6 — GDI-like

Domain ID domain_id	d1vg9h_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

CATH v4.4 (16 domains)

Domain ID domain_id	1vg9A01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1vg9A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	519 — Guanine Nucleotide Dissociation Inhibitor; domain 2
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 2

Domain ID domain_id	1vg9A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1vg9B00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1vg9C01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1vg9C02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	519 — Guanine Nucleotide Dissociation Inhibitor; domain 2
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 2

Domain ID domain_id	1vg9C03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1vg9D00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1vg9E01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1vg9E02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	519 — Guanine Nucleotide Dissociation Inhibitor; domain 2
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 2

Domain ID domain_id	1vg9E03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1vg9F00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1vg9G01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	1vg9G02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	519 — Guanine Nucleotide Dissociation Inhibitor; domain 2
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 2

Domain ID domain_id	1vg9G03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	405 — Guanine Nucleotide Dissociation Inhibitor; domain 1
Homologous superfamily homologous superfamily	10 — Guanine Nucleotide Dissociation Inhibitor, domain 1

Domain ID domain_id	1vg9H00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

8. Citations (1)

▶

Unit-cell length a length_a	66.392 Å
Unit-cell length b length_b	144.691 Å
Unit-cell length c length_c	200.086 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.13 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	19.420 Å
R factor r_factor	0.2060
R_work r_work	0.2060
R_free r_free	0.2500

The crystal structures of the REP-1 protein in complex with C-terminally truncated Rab7 protein

1. Protein Identity and Related Structures Protein Identity & Related Structures

Rab proteins geranylgeranyltransferase component A 1

State in the Current Structure

Other States of the Same Protein in the Database

Ras-related protein Rab-7

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 non-polymer

Entity 7 Entity 7 water

7. Fold Classification (SCOP + CATH) 28 domains

SCOP 2.08 (12 domains)

CATH v4.4 (16 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

fit	/app/data/saxs_computation/vg/1vg9/1vg9.fit
pddf	/app/data/pr_computation/vg/1vg9/1vg9.pr.out
profile	/app/data/saxs_computation/vg/1vg9/1vg9.dat
