SAXSdb — 1vg1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ras-related protein Rab-7

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–185	Fragment：Gtpase Domain	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；25% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.247

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1VG1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1VG0 The crystal structures of the REP-1 protein in complex with monoprenylated Rab7 protein Deposited 2004-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–207（207 aa）	Not recorded	CL CHLORIDE ION × 1 GER GERAN-8-YL GERAN × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 PG4 TETRAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 3350, 0.4M diAmmonium Tartrate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.233
1VG8 GPPNHP-Bound Rab7 Deposited 2004-04-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–207（207 aa）	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；24% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.224
1VG8 GPPNHP-Bound Rab7 Deposited 2004-04-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–207（207 aa）	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；24% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.224
1VG8 GPPNHP-Bound Rab7 Deposited 2004-04-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–207（207 aa）	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；24% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.224
1VG8 GPPNHP-Bound Rab7 Deposited 2004-04-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 1–207（207 aa）	Not recorded	MG MAGNESIUM ION × 1 GNP PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；24% PEG 3350, 0.25M Ammonium Phosphate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.70 Å R-free 0.224
1VG9 The crystal structures of the REP-1 protein in complex with C-terminally truncated Rab7 protein Deposited 2004-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–185（185 aa） Fragment：GTPase domain	Not recorded	MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250
1VG9 The crystal structures of the REP-1 protein in complex with C-terminally truncated Rab7 protein Deposited 2004-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–185（185 aa） Fragment：GTPase domain	Not recorded	MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250
1VG9 The crystal structures of the REP-1 protein in complex with C-terminally truncated Rab7 protein Deposited 2004-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1–185（185 aa） Fragment：GTPase domain	Not recorded	MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250
1VG9 The crystal structures of the REP-1 protein in complex with C-terminally truncated Rab7 protein Deposited 2004-04-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–185（185 aa） Fragment：GTPase domain	Not recorded	MG MAGNESIUM ION × 1 K POTASSIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 P33 3,6,9,12,15,18-HEXAOXAICOSANE-1,20-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；298 K；23% PEG 2000 MME, 0.4M Potassium Formate, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.250

3 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RAB7_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–185； UniProt 1–185

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vg1
Deposition date deposition_date	2004-04-22
Structure title title	GDP-Bound Rab7
Keywords keywords	GTP-binding protein, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.71 Å
Radius of gyration Rg (electron density) rg_electron	15.48 Å
Forward intensity I(0) i0	7098710.00
Molecular weight molecular_weight	19395.0 kDa
Excluded volume excluded_volume	24240 Å³
Envelope volume envelope_volume	27436 Å³
Hydration-shell volume shell_volume	14814 Å³
Envelope diameter envelope_diameter	56.3 Å
Shell Rg shell_rg	21.59 Å
Envelope Rg envelope_rg	15.93 Å
Shape Rg shape_rg	15.46 Å
Total Rg total_rg	16.61 Å
Total atoms total_atoms	1362
Residues n_residues	166
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

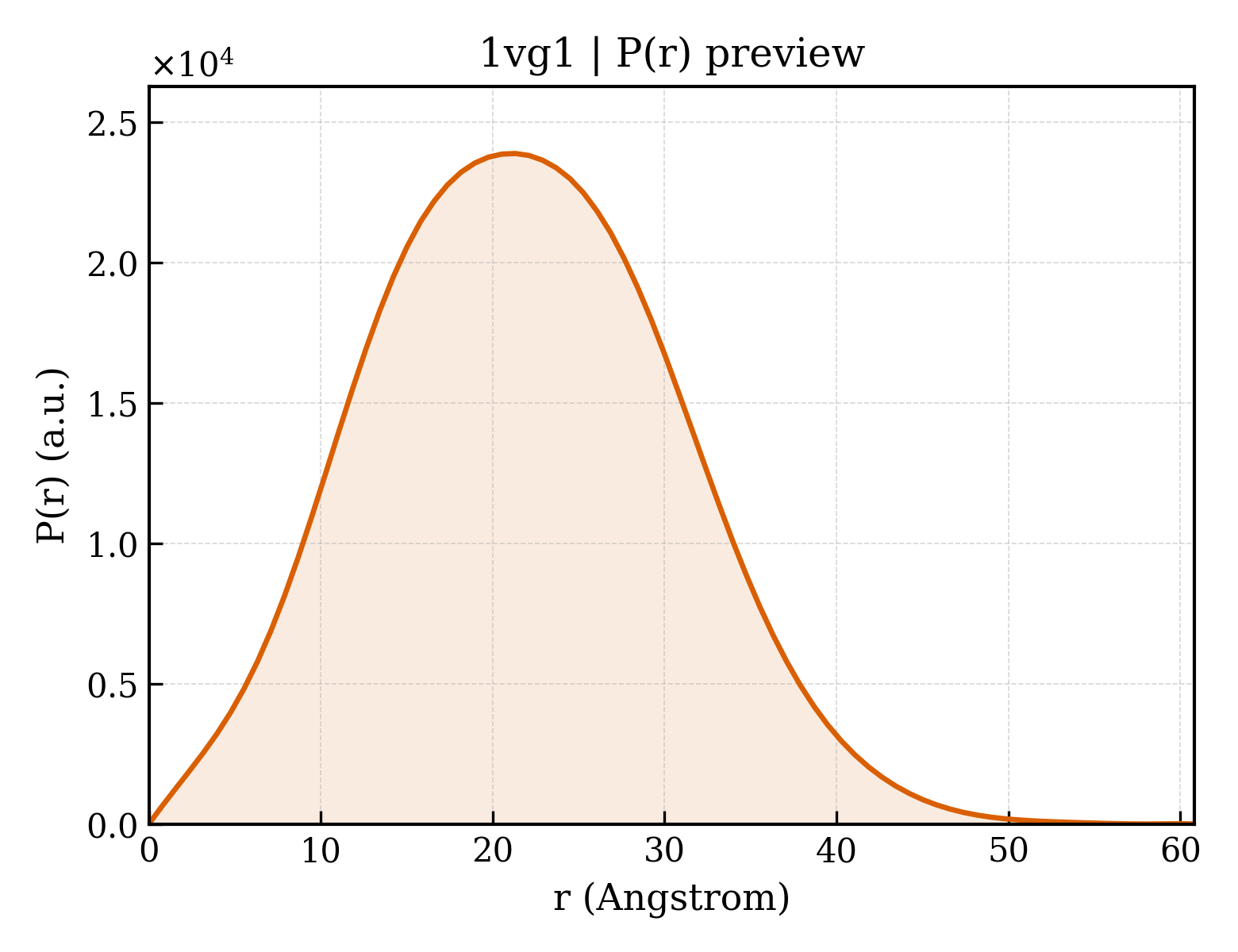

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	60.8 Å
Rg (real space) rg_real	16.62 Å
Rg uncertainty (real space) rg_real_error	0.38 Å
I(0) (real space) i0_real	7.0990e+06
I(0) uncertainty (real space) i0_real_error	9.1180e+04
Rg (reciprocal space) rg_reciprocal	16.63 Å
I(0) (reciprocal space) i0_reciprocal	7099000.0000
Solution quality estimate total_estimate	0.7567
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.3 Å
Skewness Skewness skewness	0.186
Kurtosis Kurtosis kurtosis	-0.283
Angular range angular_range	— – 0.4750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1654000.0000
Real-space data points n_real_points	78
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.617; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ras-related protein Rab-7
Molecular weight formula_weight	21121.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1506

MTSRKKVLLKVIILGDSGVGKTSLMNQYVNKKFSNQYKATIGADFLTKEVMVDDRLVTMQIWDTAGQERFQSLGVAFYRGADCCVLVFDVTAPNTFKTLDSWRDEFLIQASPRDPENFPFVVLGNKIDLENRQVATKRAQAWCYSKNNIPYFETSAKEAINVEQAFQTIARNALKQETEVELYNE

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	144

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1vg1a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

CATH v4.4 (1 domains)

Domain ID domain_id	1vg1A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

8. Citations (1)

▶

Unit-cell length a length_a	64.500 Å
Unit-cell length b length_b	103.200 Å
Unit-cell length c length_c	51.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	18.790 Å
R factor r_factor	0.1870
R_work r_work	0.1870
R_free r_free	0.2470

fit	/app/data/saxs_computation/vg/1vg1/1vg1.fit
pddf	/app/data/pr_computation/vg/1vg1/1vg1.pr.out
profile	/app/data/saxs_computation/vg/1vg1/1vg1.dat
