SAXSdb — 1vga

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Triosephosphate isomerase

Plasmodium falciparum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TPIS_PLAFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–248； UniProt 1–248 Author chain B； PDBConstruct 1–248； UniProt 1–248 Author chain C； PDBConstruct 1–248； UniProt 1–248 Author chain D； PDBConstruct 1–248； UniProt 1–248

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vga
Deposition date deposition_date	2004-04-23
Structure title title	Structures of unligated and inhibitor complexes of W168F mutant of Triosephosphate Isomerase from Plasmodium falciparum
Keywords keywords	Plasmodium falciparum, Triosephosphate Isomerase, Loop6 mutant, flexibility, intermediate position, ISOMERASE; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vga__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vga__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

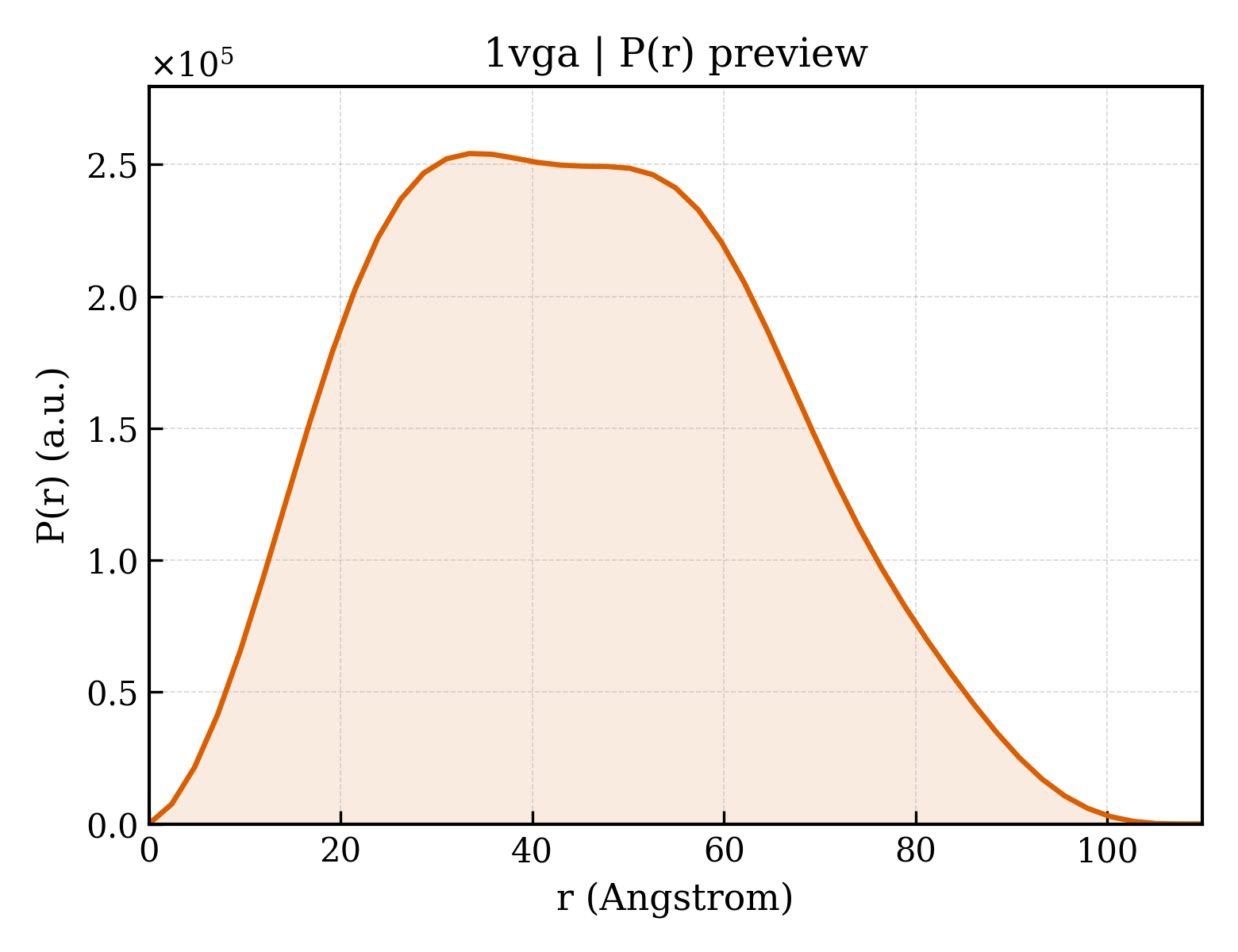

1vga__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.44 Å
Rg (electron density)	24.44 Å
Total Rg	25.42 Å
Atom count	3908
Residues	492
Excluded volume	69652 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vga__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1vga__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1vgaa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1vgab_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1vgac_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

Domain ID domain_id	d1vgad_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

CATH v4.4 (4 domains)

Domain ID domain_id	1vgaA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1vgaB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1vgaC00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1vgaD00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	53.730 Å
Unit-cell length b length_b	106.157 Å
Unit-cell length c length_c	89.526 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	92.42 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	17.200 Å
R factor r_factor	—
R_work r_work	0.2070
R_free r_free	0.2290

Description description	Triosephosphate isomerase
Molecular weight formula_weight	27958.7 kDa
EC 编号 ec_number	5.3.1.1
Mutation mutation	W168F
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	8374

Structures of unligated and inhibitor complexes of W168F mutant of Triosephosphate Isomerase from Plasmodium falciparum

1. Protein Identity and Related Structures Protein Identity & Related Structures

Triosephosphate isomerase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1vga__assembly_1__model_1

1vga__assembly_1__model_1 | I(q)

1vga__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Plasmodium falciparum
Common name common_name	malaria parasite P. falciparum
NCBI taxonomy ID ncbi_taxonomy_id	5833
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	558
