1vh8

Crystal structure of a 2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Haemophilus influenzae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	PYROPHOSPHATE 2- × 1 ACETIC ACID × 3 water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	PYROPHOSPHATE 2- × 1 ACETIC ACID × 3 water × 3	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 12	PYROPHOSPHATE 2- × 4 ACETIC ACID × 12 water × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ISPF_HAEIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–160； UniProt 2–158 Author chain B； PDBConstruct 4–160； UniProt 2–158 Author chain C； PDBConstruct 4–160； UniProt 2–158 Author chain D； PDBConstruct 4–160； UniProt 2–158 Author chain E； PDBConstruct 4–160； UniProt 2–158 Author chain F； PDBConstruct 4–160； UniProt 2–158

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vh8
Deposition date deposition_date	2003-12-01
Structure title title	Crystal structure of a 2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
Keywords keywords	structural genomics, Lyase; LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vh8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vh8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

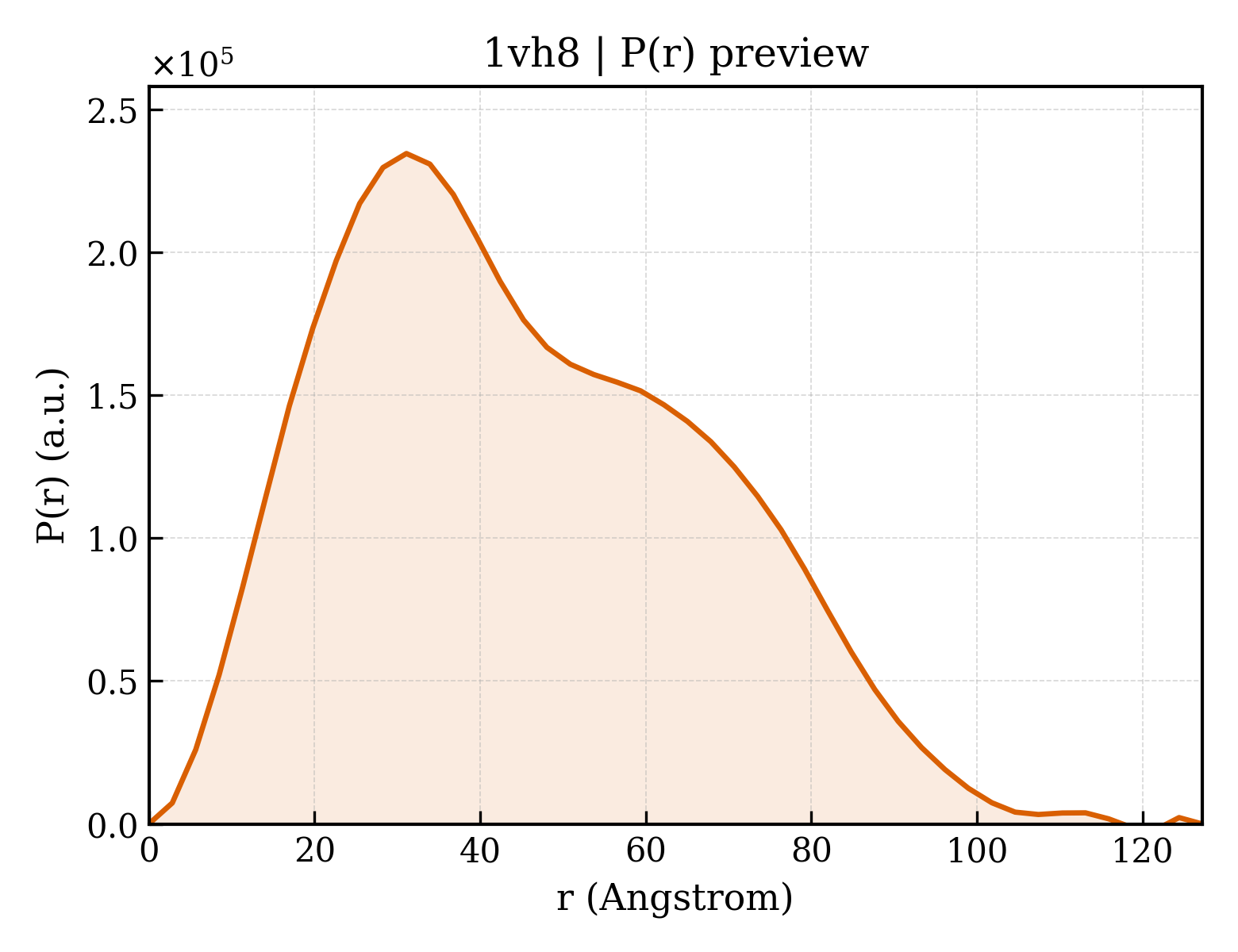

1vh8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.02 Å
Rg (electron density)	22.51 Å
Total Rg	23.16 Å
Atom count	3468
Residues	451
Excluded volume	61656 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vh8__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1vh8__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1vh8__assembly_3__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
Molecular weight formula_weight	18763.7 kDa
EC 编号 ec_number	4.6.1.12
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	7183

MSLIRIGHGFDVHAFGEDRPLIIGGVEVPYHTGFIAHSDGDVALHALTDAILGAAALGDIGKLFPDTDMQYKNADSRGLLREAFRQVQEKGYKIGNVDITIIAQAPKMRPHIDAMRAKIAEDLQCDIEQVNVKATTTEKLGFTGRQEGIACEAVALLIRQEGGSHHHHHH

Source Source

Source organism organism	Haemophilus influenzae
NCBI taxonomy ID ncbi_taxonomy_id	727
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PYROPHOSPHATE 2-
Molecular weight formula_weight	176.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	223

▼

6. Fold Classification (SCOP + CATH) 18 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1vh8a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1vh8a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vh8b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1vh8b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vh8c1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1vh8c2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vh8d1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1vh8d2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vh8e1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1vh8e2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vh8f1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

Domain ID domain_id	d1vh8f2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	1vh8A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1vh8B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1vh8C00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1vh8D00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1vh8E00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

Domain ID domain_id	1vh8F00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

▶

Unit-cell length a length_a	104.850 Å
Unit-cell length b length_b	104.850 Å
Unit-cell length c length_c	195.750 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	I 41
Space-group number int_tables_number	80
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	48.940 Å
R factor r_factor	—
R_work r_work	0.2400
R_free r_free	0.2800
