1vi9
Crystal structure of pyridoxamine kinase
SAXS 散射曲线 SAXS Profile

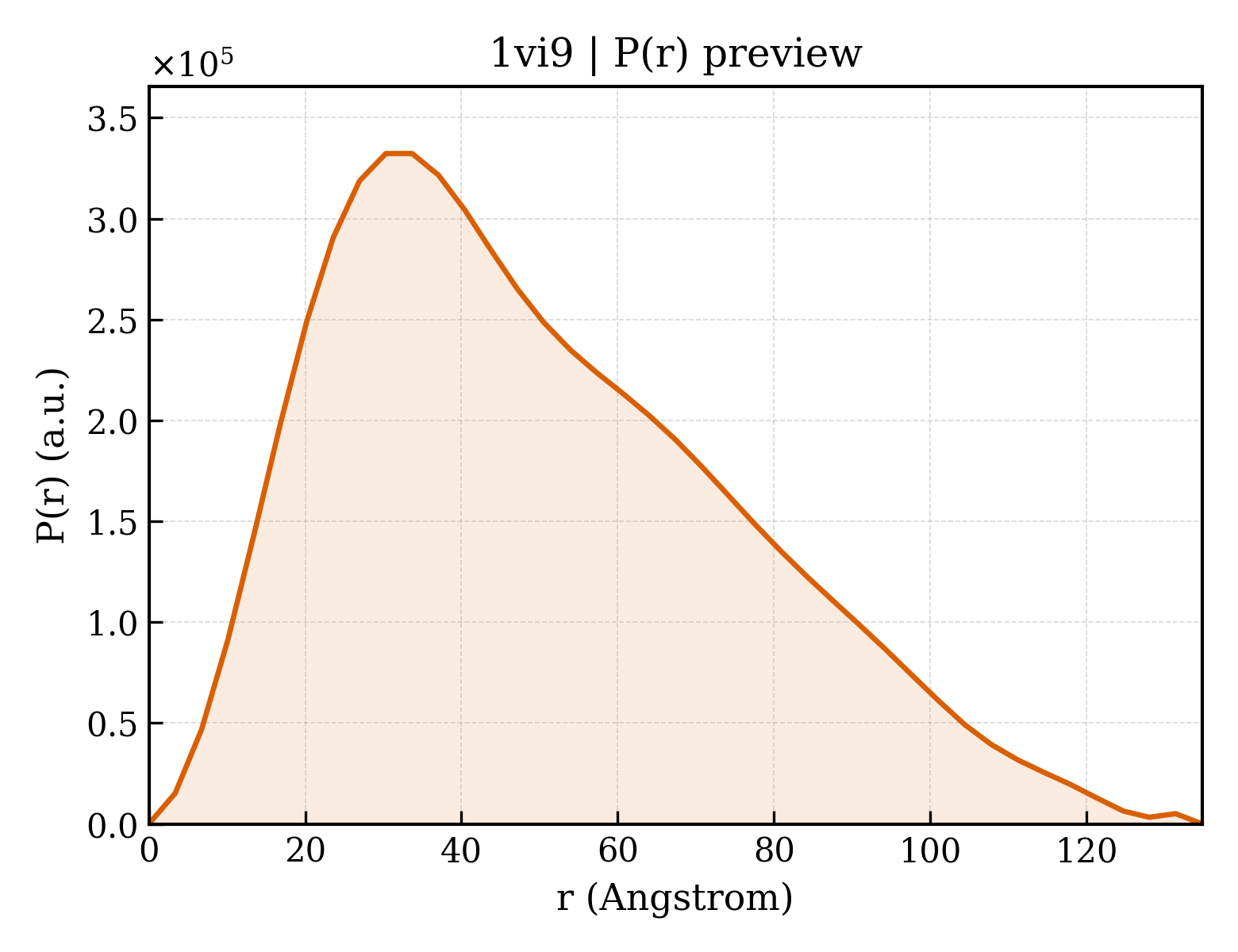

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1vi9 |
| 沉积日期 deposition_date | 2003-12-01 |
| 结构标题 title | Crystal structure of pyridoxamine kinase |
| 关键词 keywords | structural genomics, Transferase; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 39.10 Å |
| 回转半径 Rg (电子) rg_electron | 39.57 Å |
| 零角强度 I(0) i0 | 248838000.00 |
| 分子量 molecular_weight | 127120.0 kDa |
| 排除体积 excluded_volume | 158080 ų |
| 包络体积 envelope_volume | 193570 ų |
| 水化壳体积 shell_volume | 43316 ų |
| 包络直径 envelope_diameter | 143.5 Å |
| 壳层 Rg shell_rg | 41.93 Å |
| 包络 Rg envelope_rg | 39.45 Å |
| 形状 Rg shape_rg | 39.59 Å |
| 总 Rg total_rg | 39.62 Å |
| 总原子数 total_atoms | 8822 |
| 残基数 n_residues | 1116 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 134.8 Å |
| Rg (实空间) rg_real | 39.66 Å |
| Rg 误差 (实空间) rg_real_error | 1.62 Å |
| I(0) (实空间) i0_real | 2.4880e+08 |
| I(0) 误差 (实空间) i0_real_error | 5.2420e+06 |
| Rg (倒空间) rg_reciprocal | 39.32 Å |
| I(0) (倒空间) i0_reciprocal | 248700000.0000 |
| 解质量估计 total_estimate | 0.7772 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 131.4 Å |
| 偏度 Skewness skewness | 0.573 |
| 峰度 Kurtosis kurtosis | -0.341 |
| 角度范围 angular_range | — – 0.2000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 139000000.0000 |
| 实空间数据点数 n_real_points | 41 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.641; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.628; Smooth: 0.548 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (4)
6. 折叠分类 (SCOP + CATH) 16 domains
SCOP 2.08 (12 domains)
| 结构域编号 domain_id | d1vi9a1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.72 — Ribokinase-like |
| 超家族 Superfamily superfamily | c.72.1 — Ribokinase-like |
| 家族 Family family | c.72.1.5 — PfkB-like kinase |
| 结构域编号 domain_id | d1vi9a2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1vi9a3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1vi9b1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.72 — Ribokinase-like |
| 超家族 Superfamily superfamily | c.72.1 — Ribokinase-like |
| 家族 Family family | c.72.1.5 — PfkB-like kinase |
| 结构域编号 domain_id | d1vi9b2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1vi9b3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1vi9c1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.72 — Ribokinase-like |
| 超家族 Superfamily superfamily | c.72.1 — Ribokinase-like |
| 家族 Family family | c.72.1.5 — PfkB-like kinase |
| 结构域编号 domain_id | d1vi9c2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1vi9c3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1vi9d1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.72 — Ribokinase-like |
| 超家族 Superfamily superfamily | c.72.1 — Ribokinase-like |
| 家族 Family family | c.72.1.5 — PfkB-like kinase |
| 结构域编号 domain_id | d1vi9d2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d1vi9d3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1vi9A00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase |
| 同源超家族 H-superfamily homologous superfamily | 20 — Ribokinase |
| 结构域编号 domain_id | 1vi9B00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase |
| 同源超家族 H-superfamily homologous superfamily | 20 — Ribokinase |
| 结构域编号 domain_id | 1vi9C00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase |
| 同源超家族 H-superfamily homologous superfamily | 20 — Ribokinase |
| 结构域编号 domain_id | 1vi9D00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 1190 — UDP-N-acetylmuramoyl-L-alanine:D-glutamate ligase |
| 同源超家族 H-superfamily homologous superfamily | 20 — Ribokinase |
