1vim

Crystal structure of an hypothetical protein

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hypothetical protein AF1796

Archaeoglobus fulgidus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	FORMIC ACID × 5 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Y1796_ARCFU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 15–196； UniProt 2–183 Author chain B； PDBConstruct 15–196； UniProt 2–183 Author chain C； PDBConstruct 15–196； UniProt 2–183 Author chain D； PDBConstruct 15–196； UniProt 2–183

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vim
Deposition date deposition_date	2003-12-01
Structure title title	Crystal structure of an hypothetical protein
Keywords keywords	structural genomics, unknown function; Structural genomics, unknown function
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vim__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vim__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

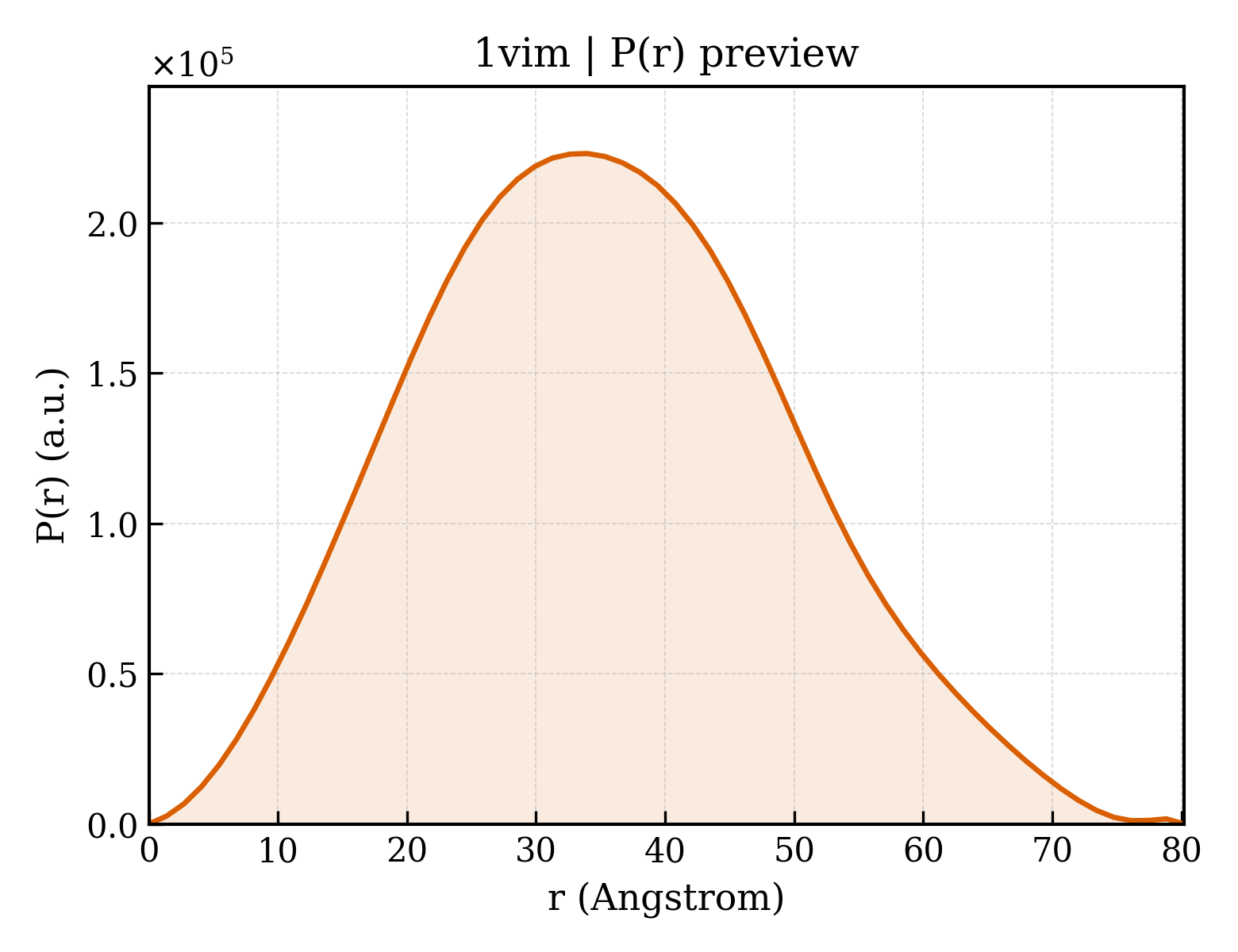

1vim__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.95 Å
Rg (electron density)	25.60 Å
Total Rg	26.58 Å
Atom count	5746
Residues	760
Excluded volume	103940 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vim__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Hypothetical protein AF1796
Molecular weight formula_weight	21960.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	6647

MGHHHHHHGGHMSLLRFLEVVSEHIKNLRNHIDLETVGEMIKLIDSARSIFVIGAGRSGYIAKAFAMRLMHLGYTVYVVGETVTPRITDQDVLVGISGSGETTSVVNISKKAKDIGSKLVAVTGKRDSSLAKMADVVMVVKGKMKQERDEILSQLAPLGTMFELTAMIFLDALVAEIMMQKHLTEKDLEARHAVLEEGGS

Source Source

Source organism organism	Archaeoglobus fulgidus
NCBI taxonomy ID ncbi_taxonomy_id	2234
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	793

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1vima1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.80 — SIS domain
Superfamily Superfamily superfamily	c.80.1 — SIS domain
Family Family family	c.80.1.3 — mono-SIS domain

Domain ID domain_id	d1vima2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vima3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vimb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.80 — SIS domain
Superfamily Superfamily superfamily	c.80.1 — SIS domain
Family Family family	c.80.1.3 — mono-SIS domain

Domain ID domain_id	d1vimb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vimb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vimc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.80 — SIS domain
Superfamily Superfamily superfamily	c.80.1 — SIS domain
Family Family family	c.80.1.3 — mono-SIS domain

Domain ID domain_id	d1vimc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vimc3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vimd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.80 — SIS domain
Superfamily Superfamily superfamily	c.80.1 — SIS domain
Family Family family	c.80.1.3 — mono-SIS domain

Domain ID domain_id	d1vimd2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vimd3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	1vimA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

Domain ID domain_id	1vimB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

Domain ID domain_id	1vimC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

Domain ID domain_id	1vimD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	10490 — Glucose-6-phosphate isomerase like protein; domain 1

▶

Unit-cell length a length_a	73.661 Å
Unit-cell length b length_b	91.829 Å
Unit-cell length c length_c	101.957 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.360 Å
Low-resolution limit resolution_low	32.410 Å
R factor r_factor	—
R_work r_work	0.1700
R_free r_free	0.2020
