SAXSdb — 1vkj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

heparan sulfate (glucosamine) 3-O-sulfotransferase 1

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	SULFATE ION × 2 ADENOSINE-3'-5'-DIPHOSPHATE × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	OST1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–285； UniProt 48–311 Author chain B； PDBConstruct 22–285； UniProt 48–311 Author chain C； PDBConstruct 22–285； UniProt 48–311

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vkj
Deposition date deposition_date	2004-05-25
Structure title title	Crystal structure of heparan sulfate 3-O-sulfotransferase isoform 1 in the presence of PAP
Keywords keywords	sulfotransferase, heparan sulfate, PAP, PAPSS, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vkj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vkj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

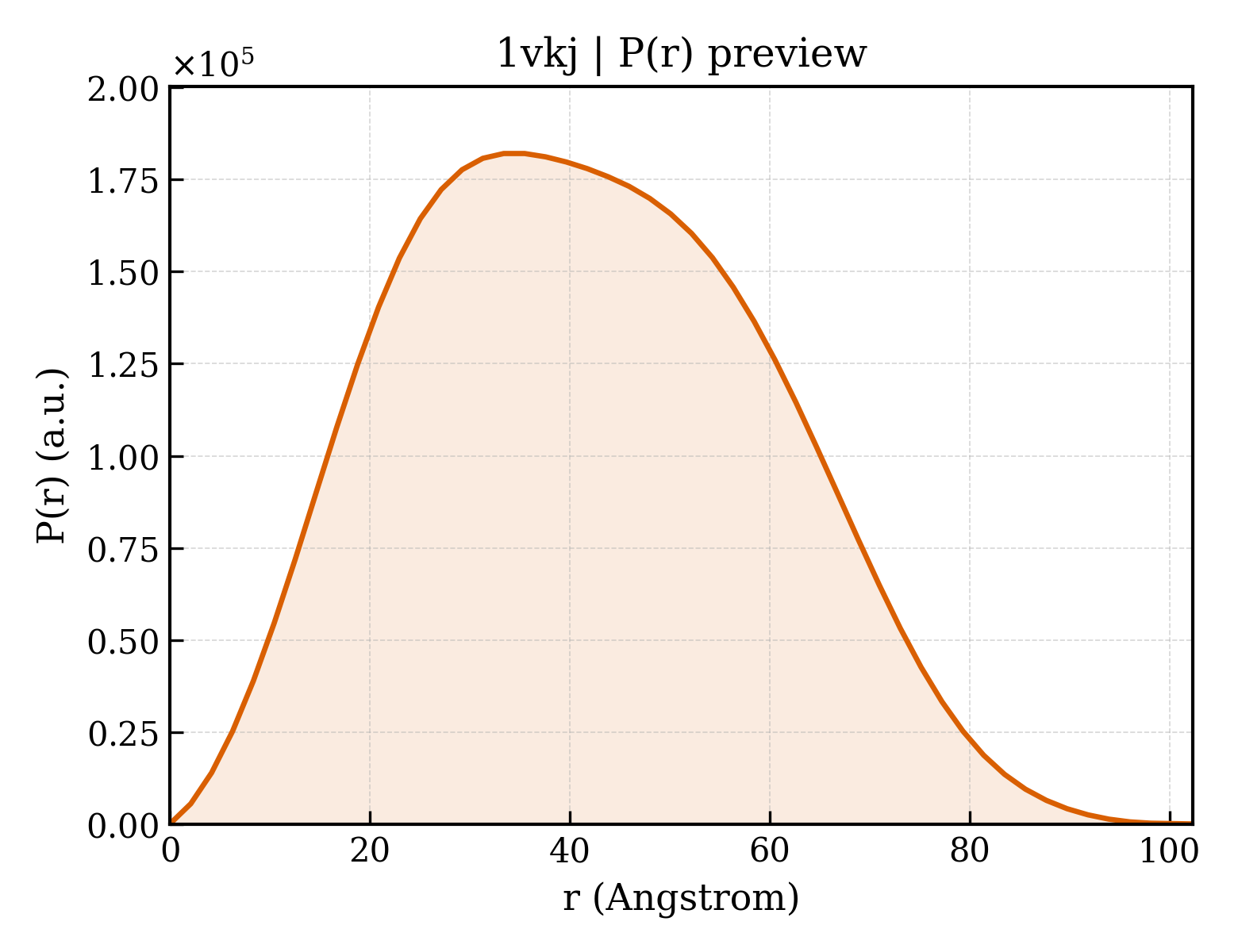

1vkj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.00 Å
Rg (electron density)	31.49 Å
Total Rg	31.94 Å
Atom count	6087
Residues	763
Excluded volume	107380 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vkj__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	heparan sulfate (glucosamine) 3-O-sulfotransferase 1
Molecular weight formula_weight	33264.0 kDa
EC 编号 ec_number	2.8.2.23
Mutation mutation	catalytic domain
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	6265

MGSSHHHHHHSSGLVPRGSHMGTASNGSTQQLPQTIIIGVRKGGTRALLEMLSLHPDVAAAENEVHFFDWEEHYSQGLGWYLTQMPFSSPHQLTVEKTPAYFTSPKVPERIHSMNPTIRLLLILRDPSERVLSDYTQVLYNHLQKHKPYPPIEDLLMRDGRLNLDYKALNRSLYHAHMLNWLRFFPLGHIHIVDGDRLIRDPFPEIQKVERFLKLSPQINASNFYFNKTKGFYCLRDSGKDRCLHESKGRAHPQVDPKLLDKLHEYFHEPNKKFFKLVGRTFDWH

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Mutation mutation	PAP
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-3'-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	178

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1vkja_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.5 — PAPS sulfotransferase

Domain ID domain_id	d1vkjb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.5 — PAPS sulfotransferase

Domain ID domain_id	d1vkjc_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.5 — PAPS sulfotransferase

CATH v4.4 (3 domains)

Domain ID domain_id	1vkjA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1vkjB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	1vkjC00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

Unit-cell length a length_a	300.136 Å
Unit-cell length b length_b	300.136 Å
Unit-cell length c length_c	84.196 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	I 41 2 2
Space-group number int_tables_number	98
Crystal system crystal_system	—

Resolution resolution	2.500 Å
Low-resolution limit resolution_low	24.840 Å
R factor r_factor	0.2430
R_work r_work	0.2430
R_free r_free	0.2640
