SAXSdb — 1vl1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

6-phosphogluconolactonase

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CITRIC ACID × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	6PGL_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–232； UniProt 1–220

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vl1
Deposition date deposition_date	2004-06-30
Structure title title	Crystal structure of 6-phosphogluconolactonase (TM1154) from Thermotoga maritima at 1.70A resolution
Keywords keywords	;TM1154, 6-PHOSPHOGLUCONOLACTONASE, STRUCTURAL GENOMICS, JCSG, PROTEIN STRUCTURE INITIATIVE, PSI, Joint Center for Structural Genomics, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vl1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vl1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

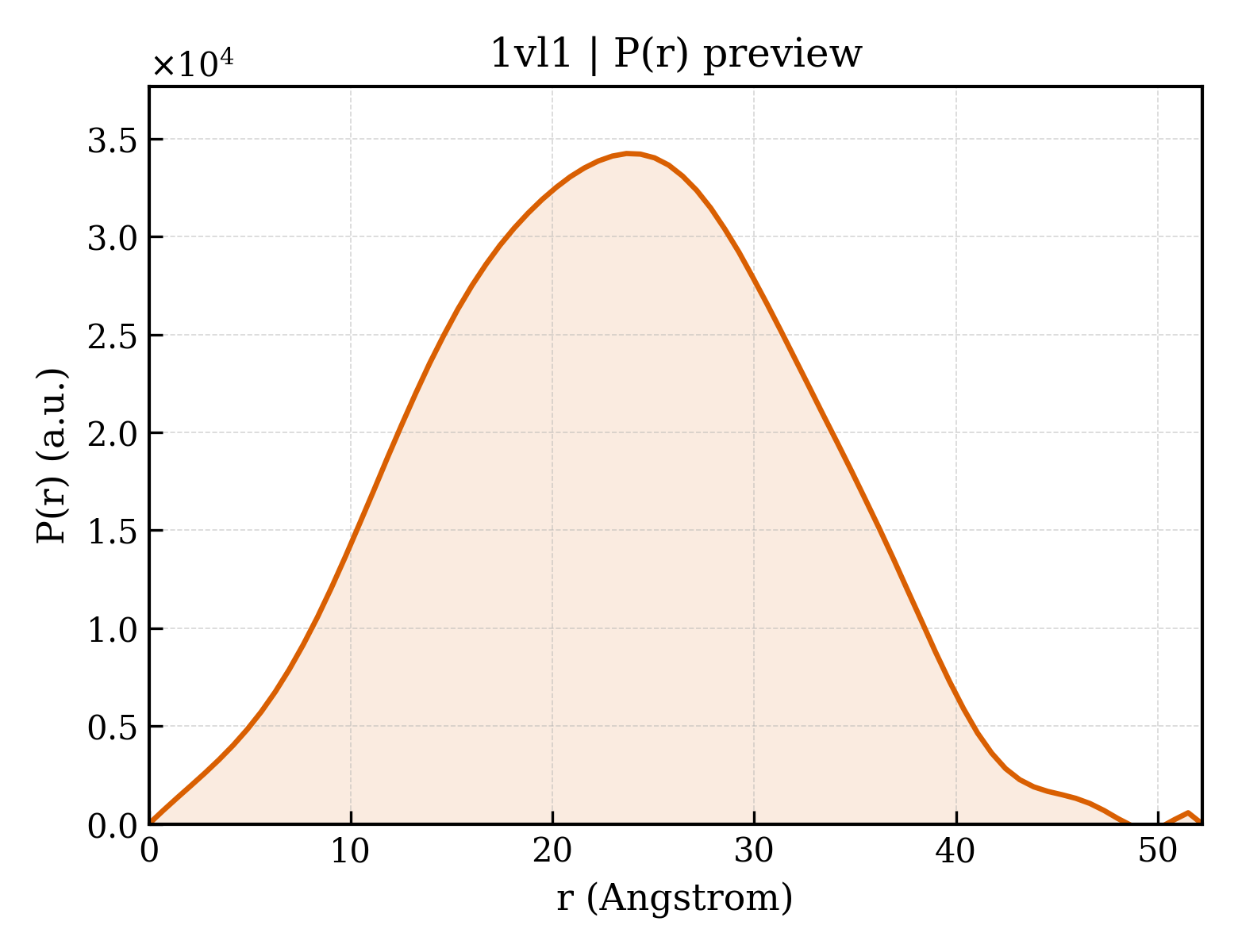

1vl1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.72 Å
Rg (electron density)	16.35 Å
Total Rg	17.51 Å
Atom count	1779
Residues	218
Excluded volume	31987 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vl1__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	6-phosphogluconolactonase
Molecular weight formula_weight	26821.8 kDa
EC 编号 ec_number	3.1.1.31
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1949

MGSDKIHHHHHHMEKTVIYLLEDGYVDFVVEKIRTKMEKLLEEKDKIFVVLAGGRTPLPVYEKLAEQKFPWNRIHFFLSDERYVPLDSDQSNFRNINEVLFSRAKIPSGNVHYVDTSLPIEKACEKYEREIRSATDQFDLAILGMGPDGHVASIFDLETGNKDNLVTFTDPSGDPKVPRVTLTFRALNTSLYVLFLIRGKEKINRLTEILKDTPLPAYFVRGKEKTVWFVGK

Source Source

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	2336
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	167

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1vl1a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.124 — NagB/RpiA/CoA transferase-like
Superfamily Superfamily superfamily	c.124.1 — NagB/RpiA/CoA transferase-like
Family Family family	c.124.1.1 — NagB-like

CATH v4.4 (1 domains)

Domain ID domain_id	1vl1A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1360 —

▶

Unit-cell length a length_a	37.733 Å
Unit-cell length b length_b	75.146 Å
Unit-cell length c length_c	148.443 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.550 Å
Low-resolution limit resolution_low	37.110 Å
R factor r_factor	0.1672
R_work r_work	0.1652
R_free r_free	0.2039
