SAXSdb — 1vl4

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

pmbA-related protein

Thermotoga maritima

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9WZI6_THEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–447； UniProt 1–435 Author chain B； PDBConstruct 13–447； UniProt 1–435

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vl4
Deposition date deposition_date	2004-07-09
Structure title title	CRYSTAL STRUCTURE OF A PUTATIVE MODULATOR OF A DNA GYRASE (TM0727) FROM THERMOTOGA MARITIMA MSB8 AT 1.95 A RESOLUTION
Keywords keywords	;PMBA-RELATED PROTEIN, STRUCTURAL GENOMICS, JOINT CENTER FOR STRUCTURAL GENOMICS, JCSG, PROTEIN STRUCTURE INITIATIVE, PSI, GENE REGULATION ;; GENE REGULATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vl4__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vl4__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

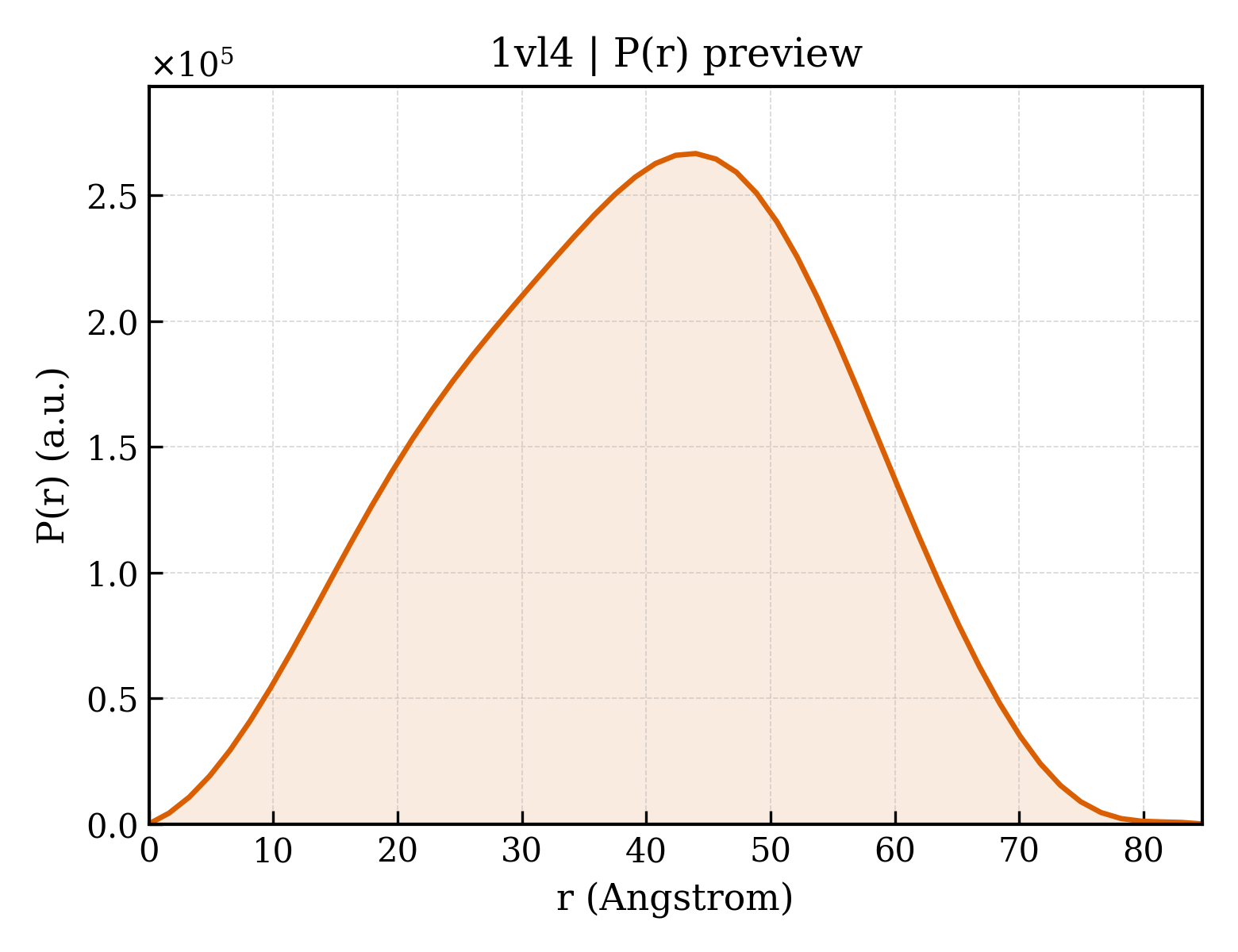

1vl4__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.21 Å
Rg (electron density)	29.09 Å
Total Rg	29.88 Å
Atom count	6596
Residues	858
Excluded volume	118240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vl4__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1vl4a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.283 — Putative modulator of DNA gyrase, PmbA/TldD
Superfamily Superfamily superfamily	d.283.1 — Putative modulator of DNA gyrase, PmbA/TldD
Family Family family	d.283.1.1 — Putative modulator of DNA gyrase, PmbA/TldD

Domain ID domain_id	d1vl4b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.283 — Putative modulator of DNA gyrase, PmbA/TldD
Superfamily Superfamily superfamily	d.283.1 — Putative modulator of DNA gyrase, PmbA/TldD
Family Family family	d.283.1.1 — Putative modulator of DNA gyrase, PmbA/TldD

CATH v4.4 (2 domains)

Domain ID domain_id	1vl4A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2290 — PmbA/TldD fold
Homologous superfamily homologous superfamily	10 — PmbA/TldD superfamily

Domain ID domain_id	1vl4B01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	2290 — PmbA/TldD fold
Homologous superfamily homologous superfamily	10 — PmbA/TldD superfamily

▶

Unit-cell length a length_a	80.367 Å
Unit-cell length b length_b	106.637 Å
Unit-cell length c length_c	120.382 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	48.750 Å
R factor r_factor	0.1763
R_work r_work	0.1739
R_free r_free	0.2210

Description description	pmbA-related protein
Molecular weight formula_weight	49827.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7177

CRYSTAL STRUCTURE OF A PUTATIVE MODULATOR OF A DNA GYRASE (TM0727) FROM THERMOTOGA MARITIMA MSB8 AT 1.95 A RESOLUTION

1. Protein Identity and Related Structures Protein Identity & Related Structures

pmbA-related protein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1vl4__assembly_1__model_1

1vl4__assembly_1__model_1 | I(q)

1vl4__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	Thermotoga maritima
NCBI taxonomy ID ncbi_taxonomy_id	243274
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	493
