1vqy

CRYSTAL STRUCTURE OF a NIPSNAP FAMILY PROTEIN (ATU5224) FROM AGROBACTERIUM TUMEFACIENS STR. C58 AT 2.40 A RESOLUTION

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

hypothetical protein AGR_pAT_315

Agrobacterium tumefaciens str. C58

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	PHOSPHATE ION × 1 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8UK99_AGRT5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–116； UniProt 1–104 Author chain B； PDBConstruct 13–116； UniProt 1–104 Author chain C； PDBConstruct 13–116； UniProt 1–104 Author chain D； PDBConstruct 13–116； UniProt 1–104 Author chain E； PDBConstruct 13–116； UniProt 1–104 Author chain F； PDBConstruct 13–116； UniProt 1–104 Author chain G； PDBConstruct 13–116； UniProt 1–104 Author chain H； PDBConstruct 13–116； UniProt 1–104

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vqy
Deposition date deposition_date	2005-01-07
Structure title title	CRYSTAL STRUCTURE OF a NIPSNAP FAMILY PROTEIN (ATU5224) FROM AGROBACTERIUM TUMEFACIENS STR. C58 AT 2.40 A RESOLUTION
Keywords keywords	STRUCTURAL GENOMICS, JOINT CENTER FOR STRUCTURAL GENOMICS, JCSG, PROTEIN STRUCTURE INITIATIVE, PSI, UNKNOWN FUNCTION; UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vqy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vqy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

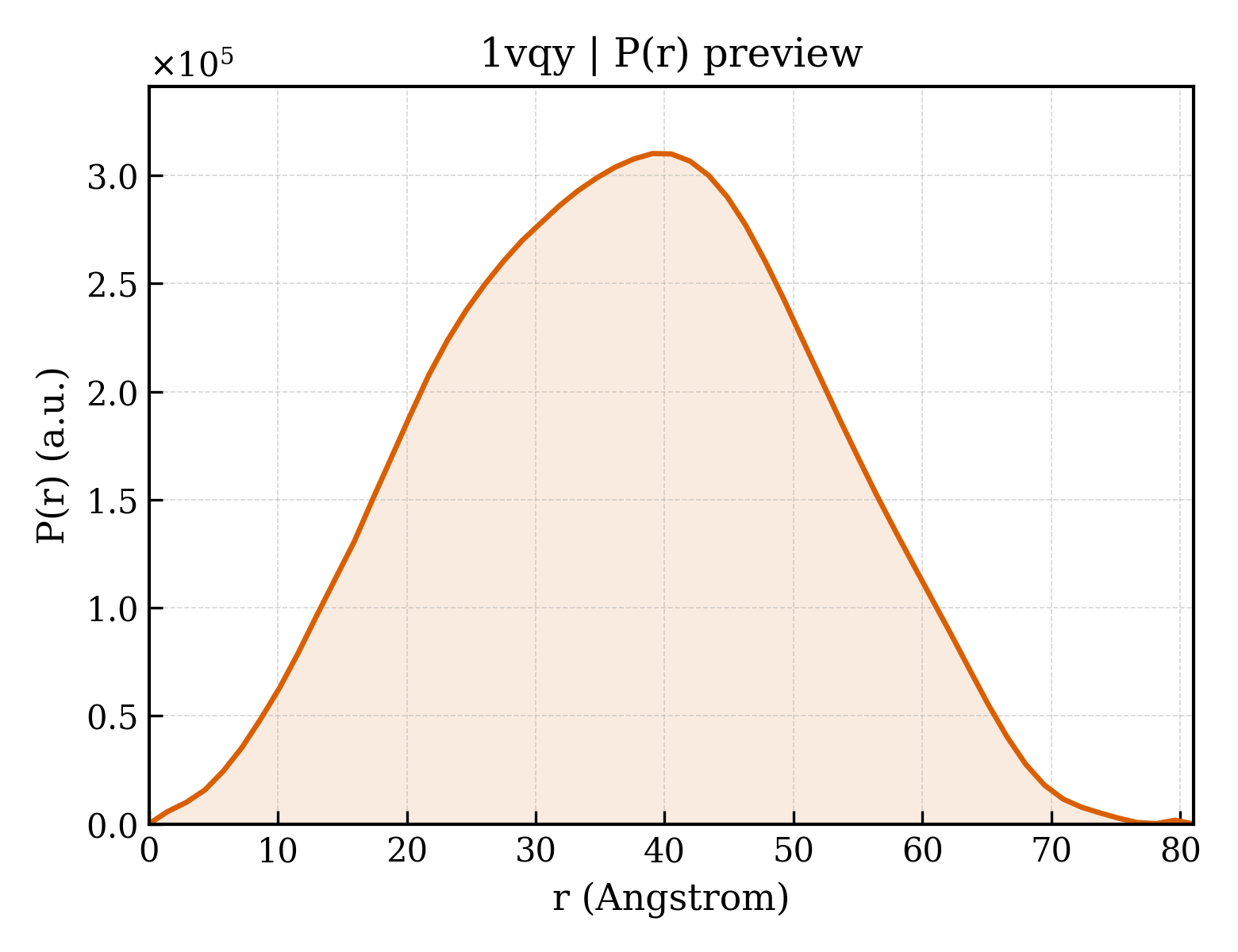

1vqy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.42 Å
Rg (electron density)	27.05 Å
Total Rg	27.87 Å
Atom count	6803
Residues	823
Excluded volume	122410 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vqy__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	hypothetical protein AGR_pAT_315
Molecular weight formula_weight	13693.1 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	7283

MGSDKIHHHHHHMIVEERIYRIRGGKMQEYLKLVREEGIAIQAPILGNLIGYFVTDIGPLSQVIHMWGYASLDDRAERRGKLAEDQRWQAFIPRLSVLIESSENRILLPTDFSPLR

Source Source

Source organism organism	Agrobacterium tumefaciens str. C58
NCBI taxonomy ID ncbi_taxonomy_id	176299
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	480

▼

6. Fold Classification (SCOP + CATH) 22 domains

SCOP 2.08 (14 domains)

Domain ID domain_id	d1vqya1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.13 — NIPSNAP

Domain ID domain_id	d1vqya2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vqyb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.0 — automated matches

Domain ID domain_id	d1vqyb3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vqyc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.0 — automated matches

Domain ID domain_id	d1vqyc3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vqyd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.0 — automated matches

Domain ID domain_id	d1vqye_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.0 — automated matches

Domain ID domain_id	d1vqyf2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.0 — automated matches

Domain ID domain_id	d1vqyf3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vqyg2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.0 — automated matches

Domain ID domain_id	d1vqyg3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1vqyh2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.4 — Dimeric alpha+beta barrel
Family Family family	d.58.4.0 — automated matches

Domain ID domain_id	d1vqyh3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (8 domains)

Domain ID domain_id	1vqyA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1vqyB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1vqyC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1vqyD00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1vqyE00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1vqyF00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1vqyG00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1vqyH00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	100 —

▶

Unit-cell length a length_a	68.035 Å
Unit-cell length b length_b	110.924 Å
Unit-cell length c length_c	129.927 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.400 Å
Low-resolution limit resolution_low	29.080 Å
R factor r_factor	0.1893
R_work r_work	0.1863
R_free r_free	0.2444
