1vrd
;Crystal structure of Inosine-5'-monophosphate dehydrogenase (TM1347) from THERMOTOGA MARITIMA at 2.18 A resolution ;
SAXS 散射曲线 SAXS Profile

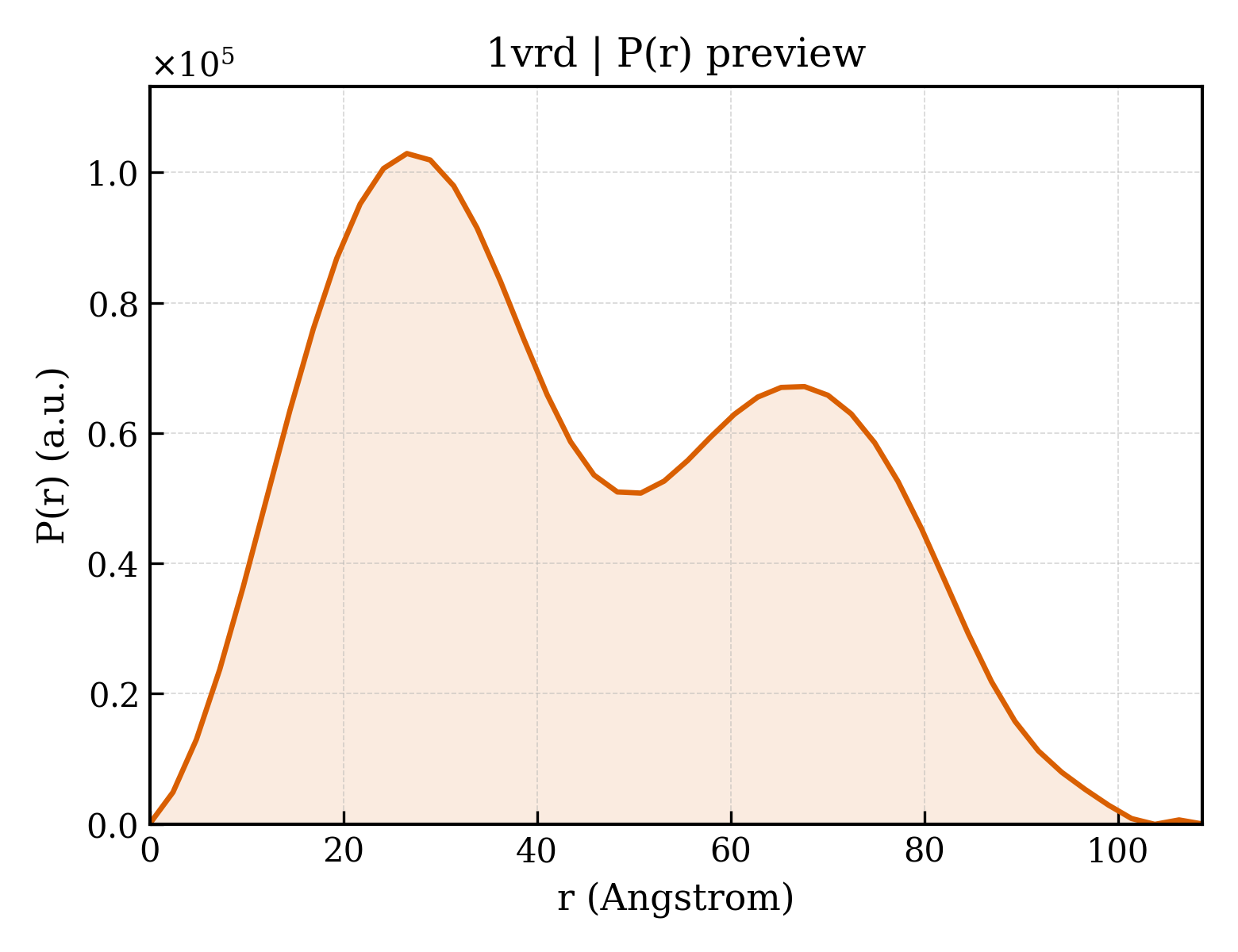

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1vrd |
| 沉积日期 deposition_date | 2005-02-22 |
| 结构标题 title | ;Crystal structure of Inosine-5'-monophosphate dehydrogenase (TM1347) from THERMOTOGA MARITIMA at 2.18 A resolution ; |
| 关键词 keywords | ;TM1347, Inosine-5'-monophosphate dehydrogenase, Structural Genomics, Joint Center for Structural Genomics, JCSG, Protein Structure Initiative, PSI, OXIDOREDUCTASE ;; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 35.03 Å |
| 回转半径 Rg (电子) rg_electron | 34.75 Å |
| 零角强度 I(0) i0 | 67675500.00 |
| 分子量 molecular_weight | 66568.0 kDa |
| 排除体积 excluded_volume | 84012 ų |
| 包络体积 envelope_volume | 115000 ų |
| 水化壳体积 shell_volume | 28427 ų |
| 包络直径 envelope_diameter | 112.8 Å |
| 壳层 Rg shell_rg | 40.08 Å |
| 包络 Rg envelope_rg | 33.63 Å |
| 形状 Rg shape_rg | 34.72 Å |
| 总 Rg total_rg | 35.27 Å |
| 总原子数 total_atoms | 4670 |
| 残基数 n_residues | 638 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 108.7 Å |
| Rg (实空间) rg_real | 35.24 Å |
| Rg 误差 (实空间) rg_real_error | 1.06 Å |
| I(0) (实空间) i0_real | 6.7680e+07 |
| I(0) 误差 (实空间) i0_real_error | 1.1740e+06 |
| Rg (倒空间) rg_reciprocal | 35.11 Å |
| I(0) (倒空间) i0_reciprocal | 67670000.0000 |
| 解质量估计 total_estimate | 0.7089 |
| 解质量评级 solution_quality | REASONABLE a REASONABLE solution |
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 26.6 Å |
| 偏度 Skewness skewness | 0.292 |
| 峰度 Kurtosis kurtosis | -1.014 |
| 角度范围 angular_range | — – 0.2250 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 12090000.0000 |
| 实空间数据点数 n_real_points | 46 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.511; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.677; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (2)
6. 折叠分类 (SCOP + CATH) 4 domains
SCOP 2.08 (2 domains)
| 结构域编号 domain_id | d1vrda1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.5 — Inosine monophosphate dehydrogenase (IMPDH) |
| 家族 Family family | c.1.5.1 — Inosine monophosphate dehydrogenase (IMPDH) |
| 结构域编号 domain_id | d1vrdb1 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.1 — TIM beta/alpha-barrel |
| 超家族 Superfamily superfamily | c.1.5 — Inosine monophosphate dehydrogenase (IMPDH) |
| 家族 Family family | c.1.5.1 — Inosine monophosphate dehydrogenase (IMPDH) |
CATH v4.4 (2 domains)
| 结构域编号 domain_id | 1vrdA00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 70 — Aldolase class I |
| 结构域编号 domain_id | 1vrdB00 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 20 — TIM Barrel |
| 同源超家族 H-superfamily homologous superfamily | 70 — Aldolase class I |
