1vrp
The 2.1 Structure of T. californica Creatine Kinase Complexed with the Transition-State Analogue Complex, ADP-Mg 2+ /NO3-/Creatine
SAXS 散射曲线 SAXS Profile

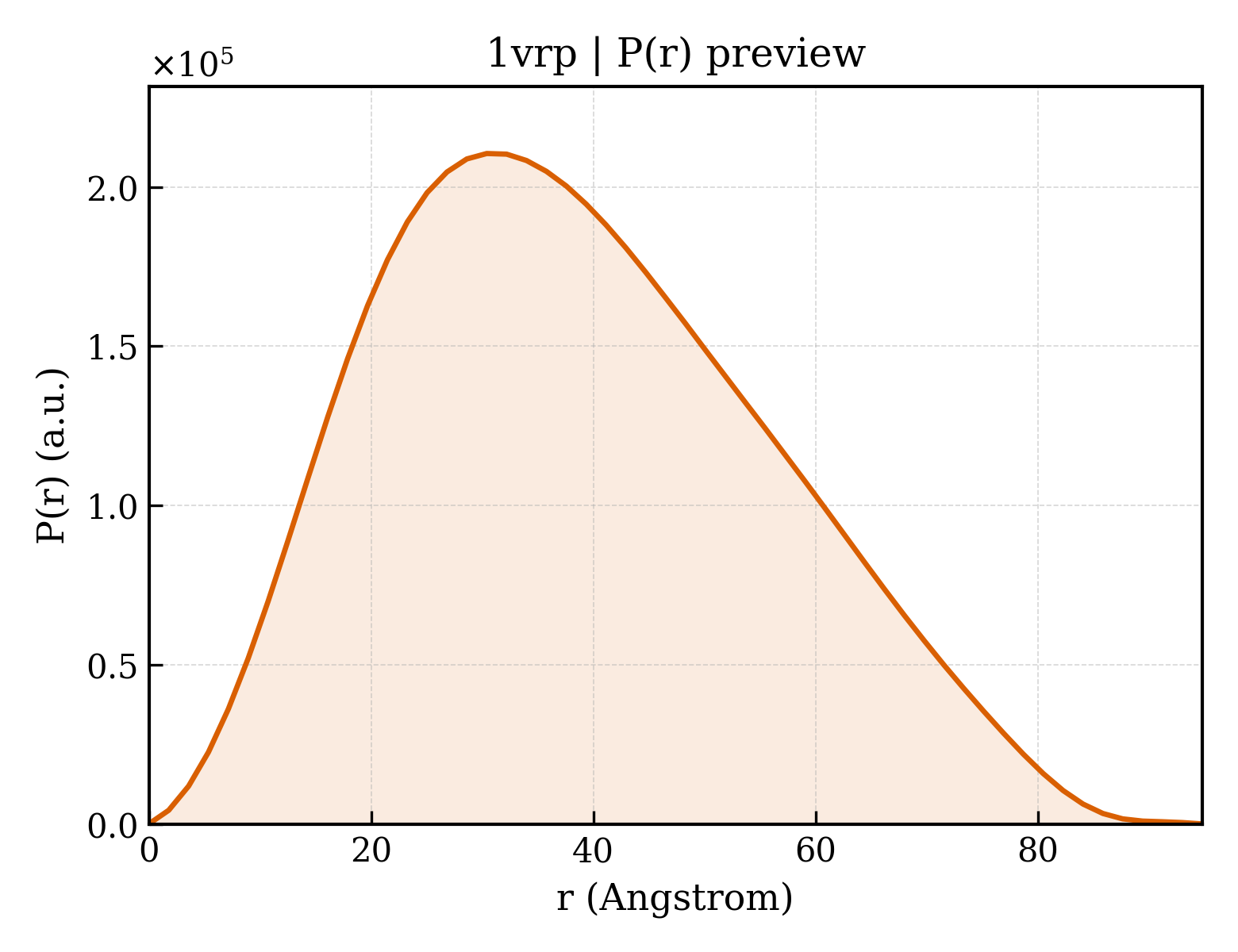

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1vrp |
| 沉积日期 deposition_date | 2005-04-25 |
| 结构标题 title | The 2.1 Structure of T. californica Creatine Kinase Complexed with the Transition-State Analogue Complex, ADP-Mg 2+ /NO3-/Creatine |
| 关键词 keywords | Creatine kinase, transition-state analogue complex, guanidino kinases, phosphocreatine, arginine kinases, transferase; TRANSFERASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 29.83 Å |
| 回转半径 Rg (电子) rg_electron | 29.36 Å |
| 零角强度 I(0) i0 | 120469000.00 |
| 分子量 molecular_weight | 84830.0 kDa |
| 排除体积 excluded_volume | 105250 ų |
| 包络体积 envelope_volume | 128480 ų |
| 水化壳体积 shell_volume | 36453 ų |
| 包络直径 envelope_diameter | 97.9 Å |
| 壳层 Rg shell_rg | 36.78 Å |
| 包络 Rg envelope_rg | 29.09 Å |
| 形状 Rg shape_rg | 29.35 Å |
| 总 Rg total_rg | 30.04 Å |
| 总原子数 total_atoms | 5951 |
| 残基数 n_residues | 744 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 94.8 Å |
| Rg (实空间) rg_real | 29.84 Å |
| Rg 误差 (实空间) rg_real_error | 0.60 Å |
| I(0) (实空间) i0_real | 1.2050e+08 |
| I(0) 误差 (实空间) i0_real_error | 1.8640e+06 |
| Rg (倒空间) rg_reciprocal | 29.84 Å |
| I(0) (倒空间) i0_reciprocal | 120500000.0000 |
| 解质量估计 total_estimate | 0.8993 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 30.4 Å |
| 偏度 Skewness skewness | 0.328 |
| 峰度 Kurtosis kurtosis | -0.545 |
| 角度范围 angular_range | — – 0.2650 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 42860000.0000 |
| 实空间数据点数 n_real_points | 54 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.925; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.926 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (6)
6. 折叠分类 (SCOP + CATH) 8 domains
SCOP 2.08 (4 domains)
| 结构域编号 domain_id | d1vrpa1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.83 — Guanido kinase N-terminal domain |
| 超家族 Superfamily superfamily | a.83.1 — Guanido kinase N-terminal domain |
| 家族 Family family | a.83.1.1 — Guanido kinase N-terminal domain |
| 结构域编号 domain_id | d1vrpa2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.128 — Glutamine synthetase/guanido kinase |
| 超家族 Superfamily superfamily | d.128.1 — Glutamine synthetase/guanido kinase |
| 家族 Family family | d.128.1.2 — Guanido kinase catalytic domain |
| 结构域编号 domain_id | d1vrpb1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.83 — Guanido kinase N-terminal domain |
| 超家族 Superfamily superfamily | a.83.1 — Guanido kinase N-terminal domain |
| 家族 Family family | a.83.1.1 — Guanido kinase N-terminal domain |
| 结构域编号 domain_id | d1vrpb2 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.128 — Glutamine synthetase/guanido kinase |
| 超家族 Superfamily superfamily | d.128.1 — Glutamine synthetase/guanido kinase |
| 家族 Family family | d.128.1.2 — Guanido kinase catalytic domain |
CATH v4.4 (4 domains)
| 结构域编号 domain_id | 1vrpA01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 135 — Transferase Creatine Kinase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — ATP:guanido phosphotransferase, N-terminal domain |
| 结构域编号 domain_id | 1vrpA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 590 — Creatine Kinase; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Glutamine synthetase/guanido kinase, catalytic domain |
| 结构域编号 domain_id | 1vrpB01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 135 — Transferase Creatine Kinase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — ATP:guanido phosphotransferase, N-terminal domain |
| 结构域编号 domain_id | 1vrpB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 30 — 2-Layer Sandwich |
| 拓扑 Topology topology | 590 — Creatine Kinase; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Glutamine synthetase/guanido kinase, catalytic domain |
