SAXSdb — 1vsg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

VARIANT SURFACE GLYCOPROTEIN MITAT 1.2

Trypanosoma brucei brucei

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 2	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VSM2_TRYBB
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–364； UniProt 27–390 Author chain B； PDBConstruct 1–364； UniProt 27–390

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vsg
Deposition date deposition_date	1990-10-22
Structure title title	2.9 ANGSTROMS RESOLUTION STRUCTURE OF THE N-TERMINAL DOMAIN OF A VARIANT SURFACE GLYCOPROTEIN FROM TRYPANOSOMA BRUCEI
Keywords keywords	GLYCOPROTEIN; GLYCOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vsg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vsg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

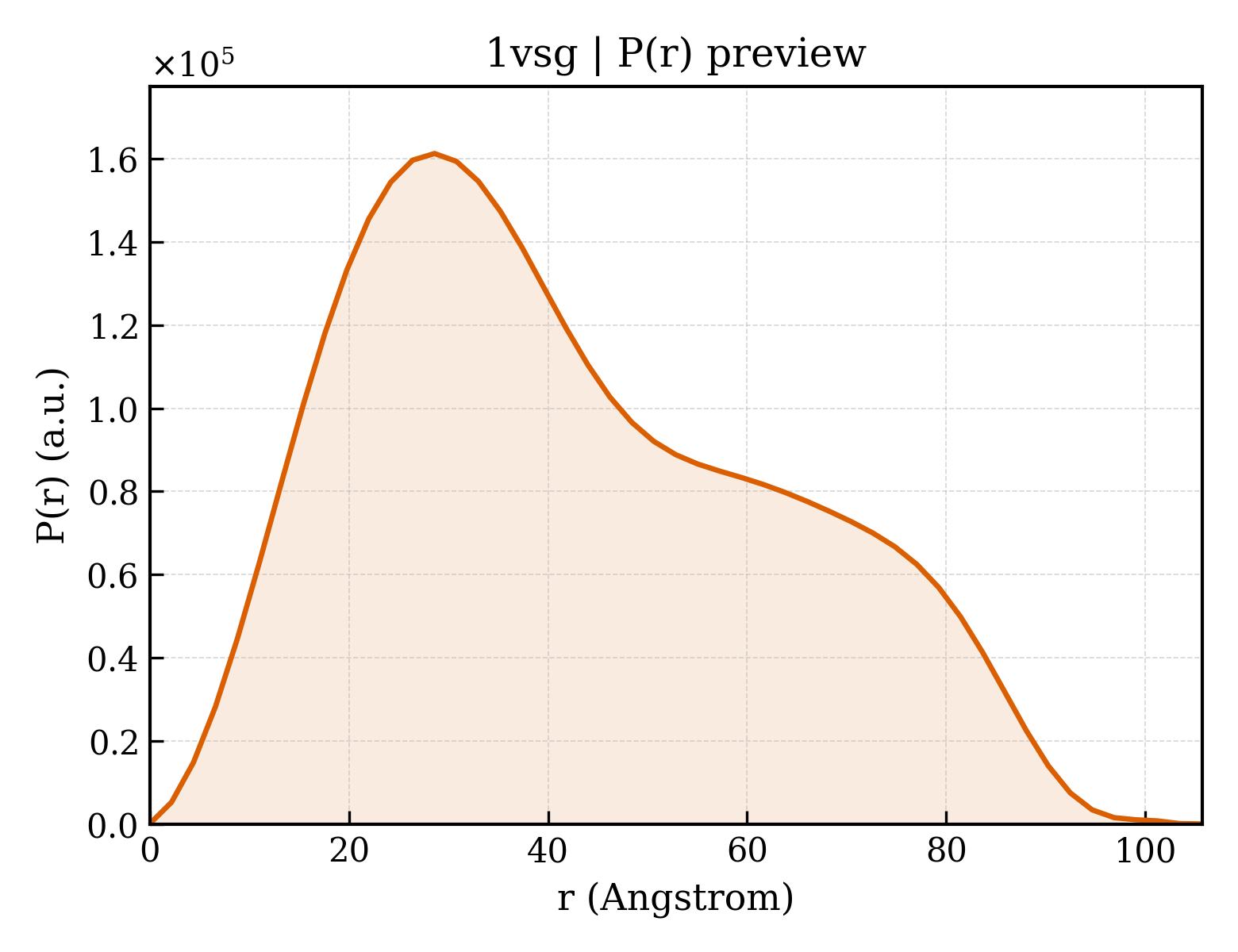

1vsg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.05 Å
Rg (electron density)	32.58 Å
Total Rg	32.99 Å
Atom count	5490
Residues	724
Excluded volume	97330 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vsg__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	VARIANT SURFACE GLYCOPROTEIN MITAT 1.2
Molecular weight formula_weight	38844.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5508

AAEKGFKQAFWQPLCQVSEELDDQPKGALFTLQAAASKIQKMRDAALRASIYAEINHGTNRAKAAVIVANHYAMKADSGLEALKQTLSSQEVTATATASYLKGRIDEYLNLLLQTKESGTSGCMMDTSGTNTVTKAGGTIGGVPCKLQLSPIQPKRPAATYLGKAGYVGLTRQADAANNFHDNDAECRLASGHNTNGLGKSGQLSAAVTMAAGYVTVANSQTAVTVQALDALQEASGAAHQPWIDAWKAKKALTGAETAEFRNETAGIAGKTGVTKLVEEALLKKKDSEASEIQTELKKYFSGHENEQWTAIEKLISEQPVAQNLVGDNQPTKLGELEGNAKLTTILAYYRMETAGKFEVLTQK

Source Source

Source organism organism	Trypanosoma brucei brucei
NCBI taxonomy ID ncbi_taxonomy_id	5702

Entity 2 Entity 2 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 branched

Description description	alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	18

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1vsga_
Class class	h — Coiled coil proteins
Fold Fold fold	h.4 — Antiparallel coiled-coil
Superfamily Superfamily superfamily	h.4.1 — Variant surface glycoprotein (N-terminal domain)
Family Family family	h.4.1.1 — Variant surface glycoprotein (N-terminal domain)

Domain ID domain_id	d1vsgb_
Class class	h — Coiled coil proteins
Fold Fold fold	h.4 — Antiparallel coiled-coil
Superfamily Superfamily superfamily	h.4.1 — Variant surface glycoprotein (N-terminal domain)
Family Family family	h.4.1.1 — Variant surface glycoprotein (N-terminal domain)

CATH v4.4 (4 domains)

Domain ID domain_id	1vsgA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	150 — Variant Surface Glycoprotein; Chain A domain 1
Homologous superfamily homologous superfamily	10 — Variant Surface Glycoprotein, subunit A domain 1

Domain ID domain_id	1vsgA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	470 — Variant Surface Glycoprotein, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Variant Surface Glycoprotein, subunit A, domain 2

Domain ID domain_id	1vsgB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	150 — Variant Surface Glycoprotein; Chain A domain 1
Homologous superfamily homologous superfamily	10 — Variant Surface Glycoprotein, subunit A domain 1

Domain ID domain_id	1vsgB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	470 — Variant Surface Glycoprotein, subunit A; domain 2
Homologous superfamily homologous superfamily	10 — Variant Surface Glycoprotein, subunit A, domain 2

▶

Unit-cell length a length_a	95.500 Å
Unit-cell length b length_b	97.500 Å
Unit-cell length c length_c	123.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	0.2200
R_free r_free	—

2.9 ANGSTROMS RESOLUTION STRUCTURE OF THE N-TERMINAL DOMAIN OF A VARIANT SURFACE GLYCOPROTEIN FROM TRYPANOSOMA BRUCEI
