SAXSdb — 1vub

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CCDB

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	CHLORIDE ION × 2 water × 2	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 8	CHLORIDE ION × 8 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCDB_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–101； UniProt 1–101 Author chain B； PDBConstruct 1–101； UniProt 1–101 Author chain C； PDBConstruct 1–101； UniProt 1–101 Author chain D； PDBConstruct 1–101； UniProt 1–101

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vub
Deposition date deposition_date	1998-04-17
Structure title title	CCDB, A TOPOISOMERASE POISON FROM E. COLI
Keywords keywords	PLASMID, CCDB, TOPOISOMERASE POISON, PLASMID ADDICTION; PLASMID
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vub__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

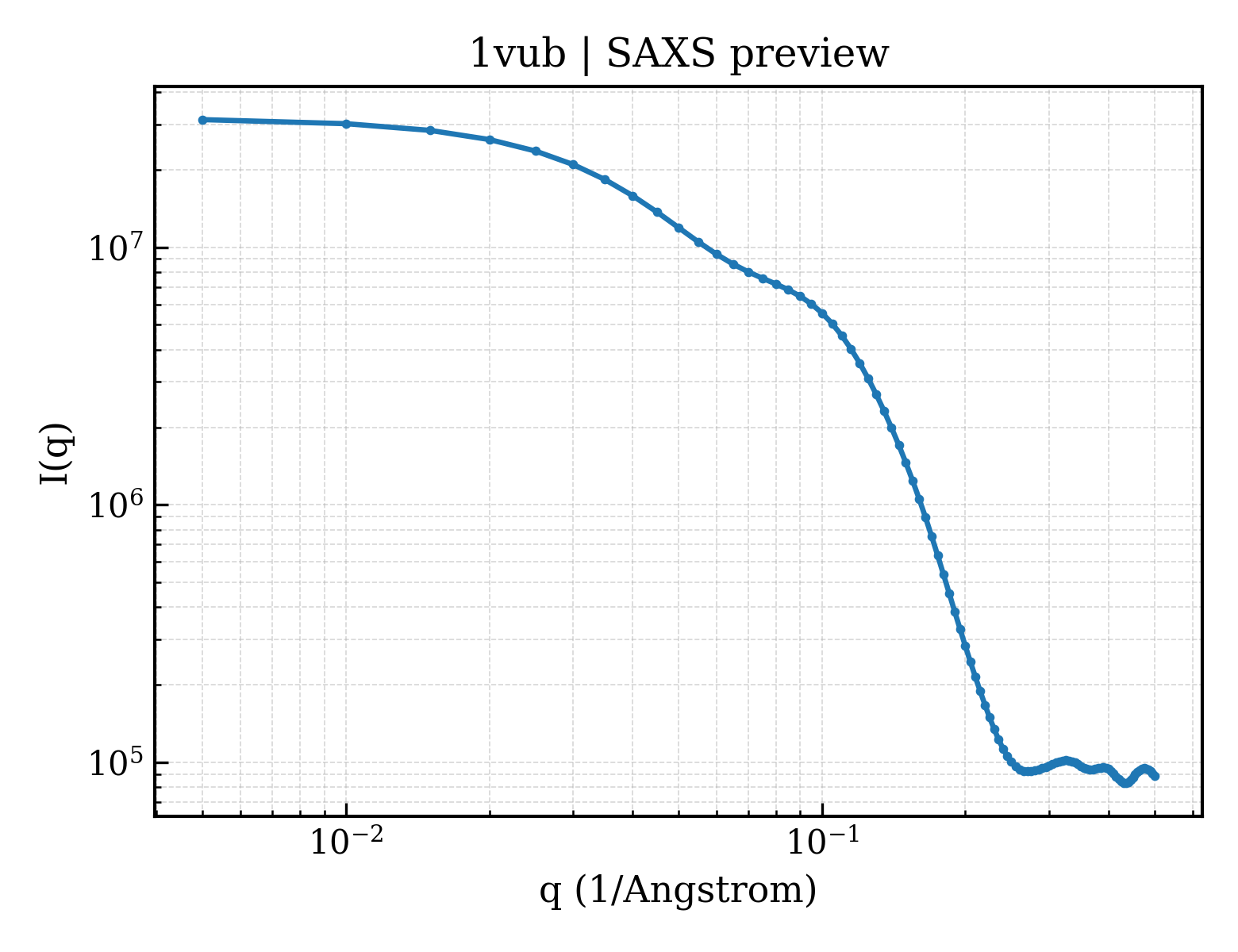

1vub__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

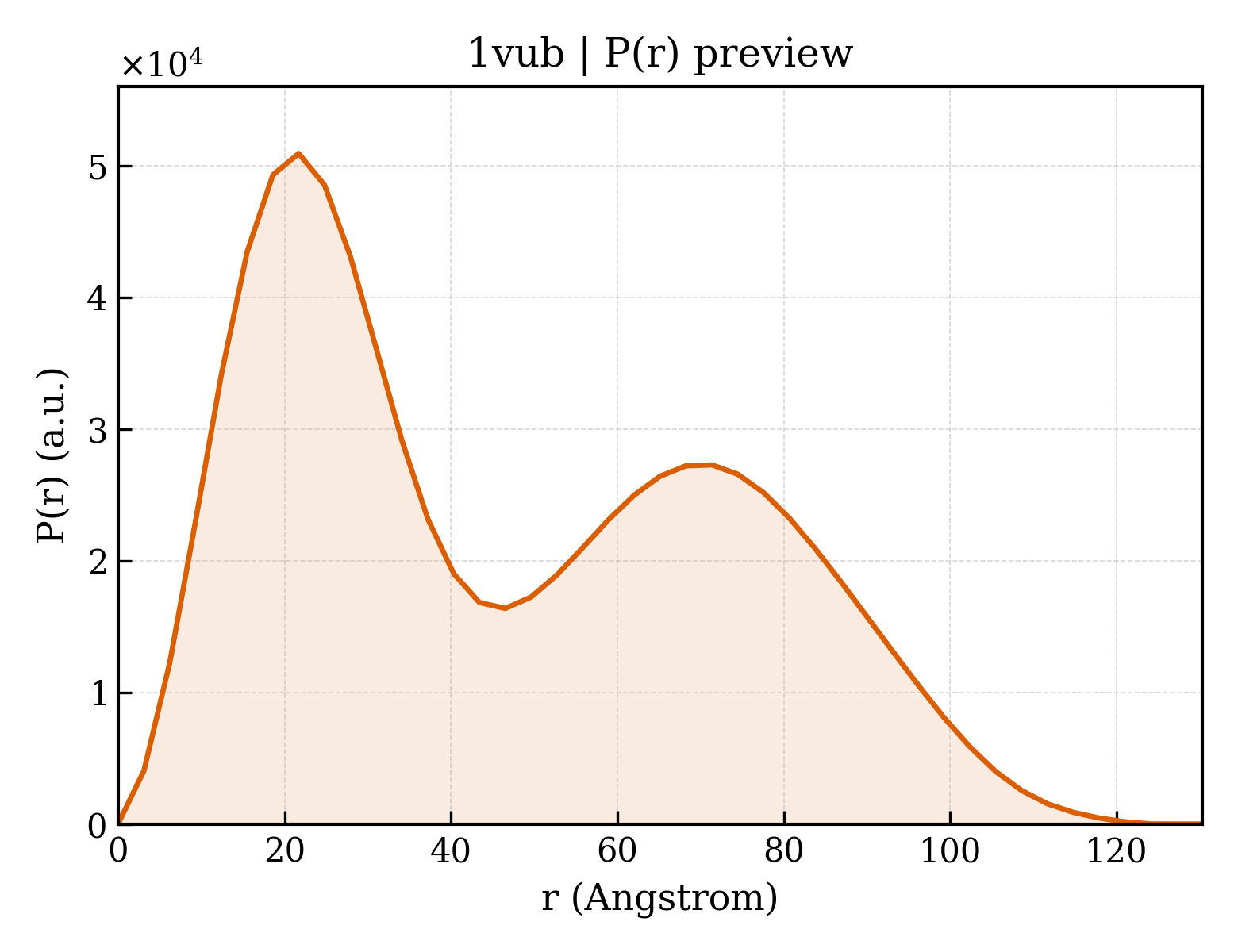

1vub__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.19 Å
Rg (electron density)	16.92 Å
Total Rg	17.88 Å
Atom count	1586
Residues	196
Excluded volume	28398 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vub__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1vub__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1vub__assembly_3__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CCDB
Molecular weight formula_weight	11721.5 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	3224

MQFKVYTYKRESRYRLFVDVQSDIIDTPGRRMVIPLASARLLSDKVSRELYPVVHIGDESWRMMTTDMASVPVSVIGEEVADLSHRENDIKNAINLMFWGI

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	37

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1vuba_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.6 — Cell growth inhibitor/plasmid maintenance toxic component
Family Family family	b.34.6.1 — CcdB

Domain ID domain_id	d1vubb_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.6 — Cell growth inhibitor/plasmid maintenance toxic component
Family Family family	b.34.6.1 — CcdB

Domain ID domain_id	d1vubc_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.6 — Cell growth inhibitor/plasmid maintenance toxic component
Family Family family	b.34.6.1 — CcdB

Domain ID domain_id	d1vubd_
Class class	b — All beta proteins
Fold Fold fold	b.34 — SH3-like barrel
Superfamily Superfamily superfamily	b.34.6 — Cell growth inhibitor/plasmid maintenance toxic component
Family Family family	b.34.6.1 — CcdB

CATH v4.4 (4 domains)

Domain ID domain_id	1vubA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1vubB00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1vubC00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	110 —

Domain ID domain_id	1vubD00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	110 —

▶

Unit-cell length a length_a	104.520 Å
Unit-cell length b length_b	104.520 Å
Unit-cell length c length_c	88.420 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	32

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1990
R_work r_work	0.1990
R_free r_free	0.2460
