Vaccinia virus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | VCP_VACCV |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–118； UniProt 146–263 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1vvc |
| Deposition date deposition_date | 1997-06-25 |
| Structure title title | C-TERMINAL HALF OF VACCINIA VIRUS COMPLEMENT CONTROL PROTEIN, NMR, MINIMIZED AVERAGE STRUCTURE |
| Keywords keywords | COMPLEMENT INHIBITOR, COMPLEMENT MODULE, SCR, SUSHI DOMAIN, MODULE PAIR; COMPLEMENT INHIBITOR |
| Experimental Method method | SOLUTION NMR |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

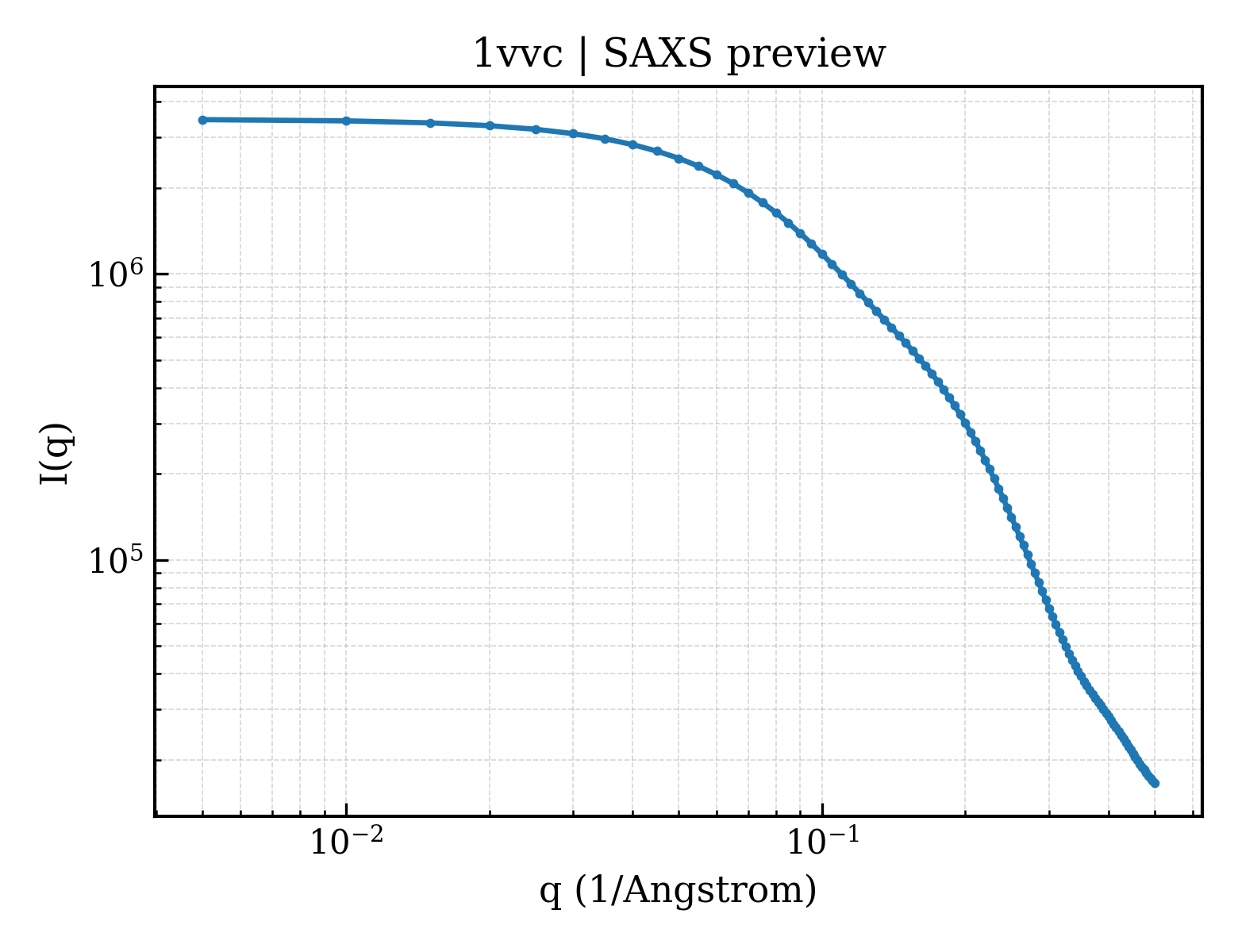

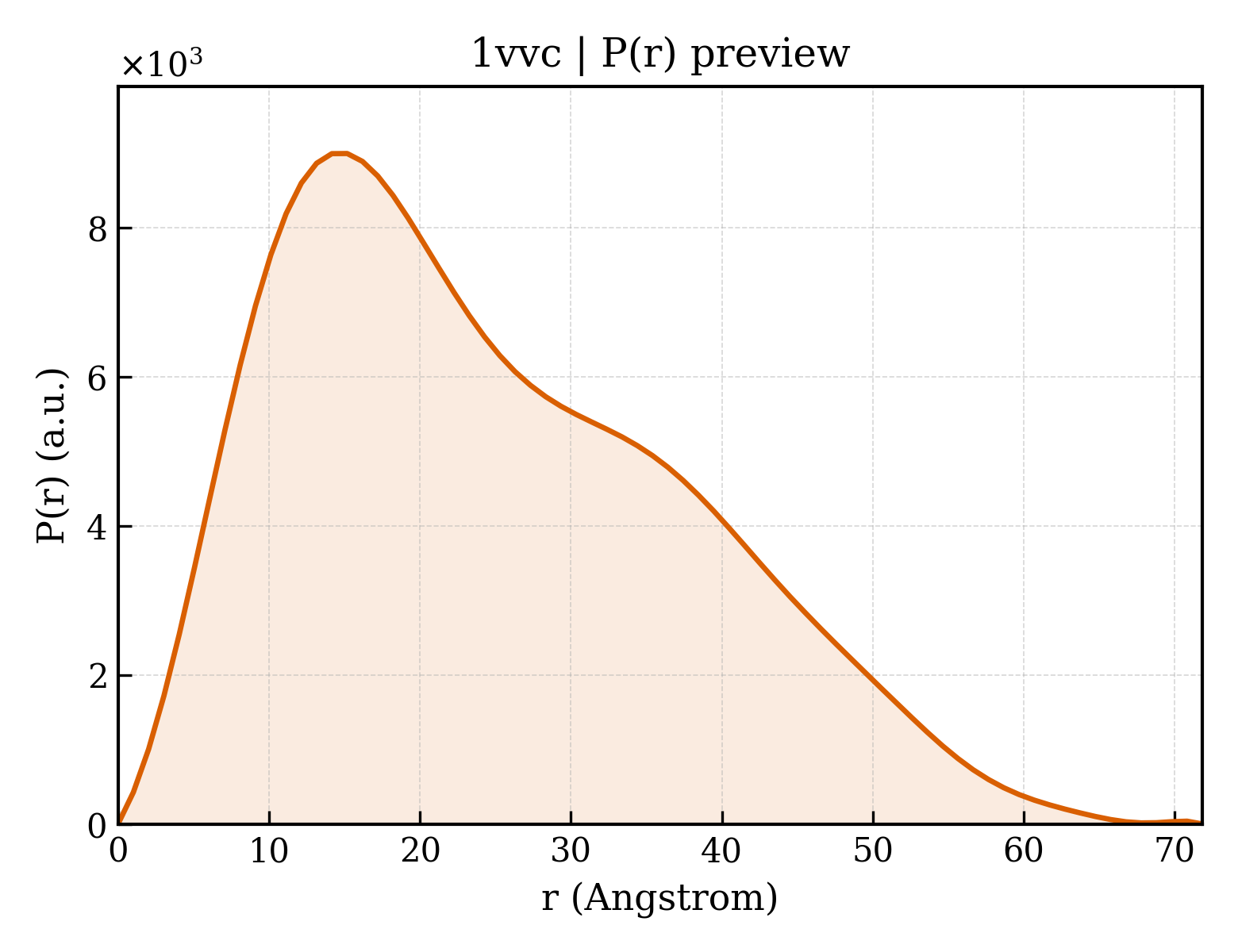

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 19.43 Å |
| Rg (electron density) | 19.42 Å |
| Total Rg | 20.05 Å |
| Atom count | 1728 |
| Residues | 118 |
| Excluded volume | 15656 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1vvca1 |
| Class class | g — Small proteins |
| Fold Fold fold | g.18 — Complement control module/SCR domain |
| Superfamily Superfamily superfamily | g.18.1 — Complement control module/SCR domain |
| Family Family family | g.18.1.1 — Complement control module/SCR domain |
| Domain ID domain_id | d1vvca2 |
| Class class | g — Small proteins |
| Fold Fold fold | g.18 — Complement control module/SCR domain |
| Superfamily Superfamily superfamily | g.18.1 — Complement control module/SCR domain |
| Family Family family | g.18.1.1 — Complement control module/SCR domain |
| Domain ID domain_id | 1vvcA01 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 10 — Ribbon |
| Topology topology | 70 — Complement Module; domain 1 |
| Homologous superfamily homologous superfamily | 10 — Complement Module, domain 1 |
| Domain ID domain_id | 1vvcA02 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 10 — Ribbon |
| Topology topology | 70 — Complement Module; domain 1 |
| Homologous superfamily homologous superfamily | 10 — Complement Module, domain 1 |
