SAXSdb — 1w17

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROBABLE POLYSACCHARIDE DEACETYLASE PDAA

BACILLUS SUBTILIS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PDAA_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–263； UniProt 1–263 Author chain B； PDBConstruct 1–263； UniProt 1–263

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w17
Deposition date deposition_date	2004-06-17
Structure title title	Structure of Bacillus subtilis PdaA, a family 4 Carbohydrate esterase.
Keywords keywords	HYDROLASE, FAMILY 4 CARBOHYDRATE ESTERASE, DEACETYLASE, PEPTIDOGLYCAN, NODB HOMOLOGY DOMAIN; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w17__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1w17__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

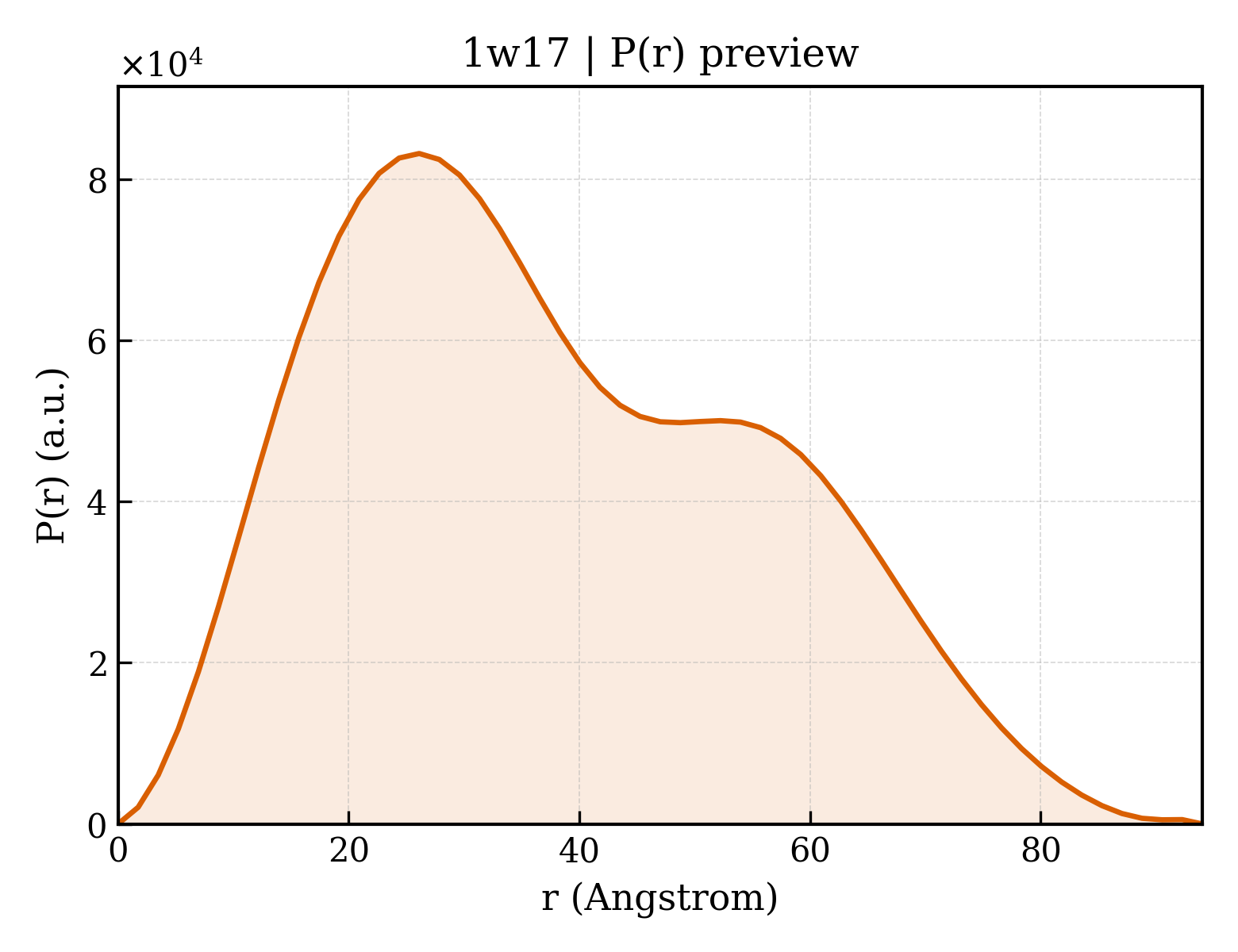

1w17__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.33 Å
Rg (electron density)	17.15 Å
Total Rg	18.29 Å
Atom count	1927
Residues	236
Excluded volume	34204 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w17__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1w17__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1w17a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.6 — 7-stranded beta/alpha barrel
Superfamily Superfamily superfamily	c.6.2 — Glycoside hydrolase/deacetylase
Family Family family	c.6.2.3 — NodB-like polysaccharide deacetylase

Domain ID domain_id	d1w17b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.6 — 7-stranded beta/alpha barrel
Superfamily Superfamily superfamily	c.6.2 — Glycoside hydrolase/deacetylase
Family Family family	c.6.2.3 — NodB-like polysaccharide deacetylase

CATH v4.4 (2 domains)

Domain ID domain_id	1w17A00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	370 — Glycoside hydrolase/deacetylase

Domain ID domain_id	1w17B00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	370 — Glycoside hydrolase/deacetylase

▶

Unit-cell length a length_a	88.115 Å
Unit-cell length b length_b	88.115 Å
Unit-cell length c length_c	120.957 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	14.980 Å
R factor r_factor	0.2010
R_work r_work	0.2010
R_free r_free	0.2620

Description description	PROBABLE POLYSACCHARIDE DEACETYLASE PDAA
Molecular weight formula_weight	30112.3 kDa
EC 编号 ec_number	3.-.-.-
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4212

Structure of Bacillus subtilis PdaA, a family 4 Carbohydrate esterase.

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROBABLE POLYSACCHARIDE DEACETYLASE PDAA

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1w17__assembly_1__model_1

1w17__assembly_1__model_1 | I(q)

1w17__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	BACILLUS SUBTILIS
NCBI taxonomy ID ncbi_taxonomy_id	1423
Host organism host_organism	ESCHERICHIA COLI BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	366
