1w1w

Sc Smc1hd:Scc1-C complex, ATPgS

Method: X-RAY DIFFRACTION D_max: 155.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

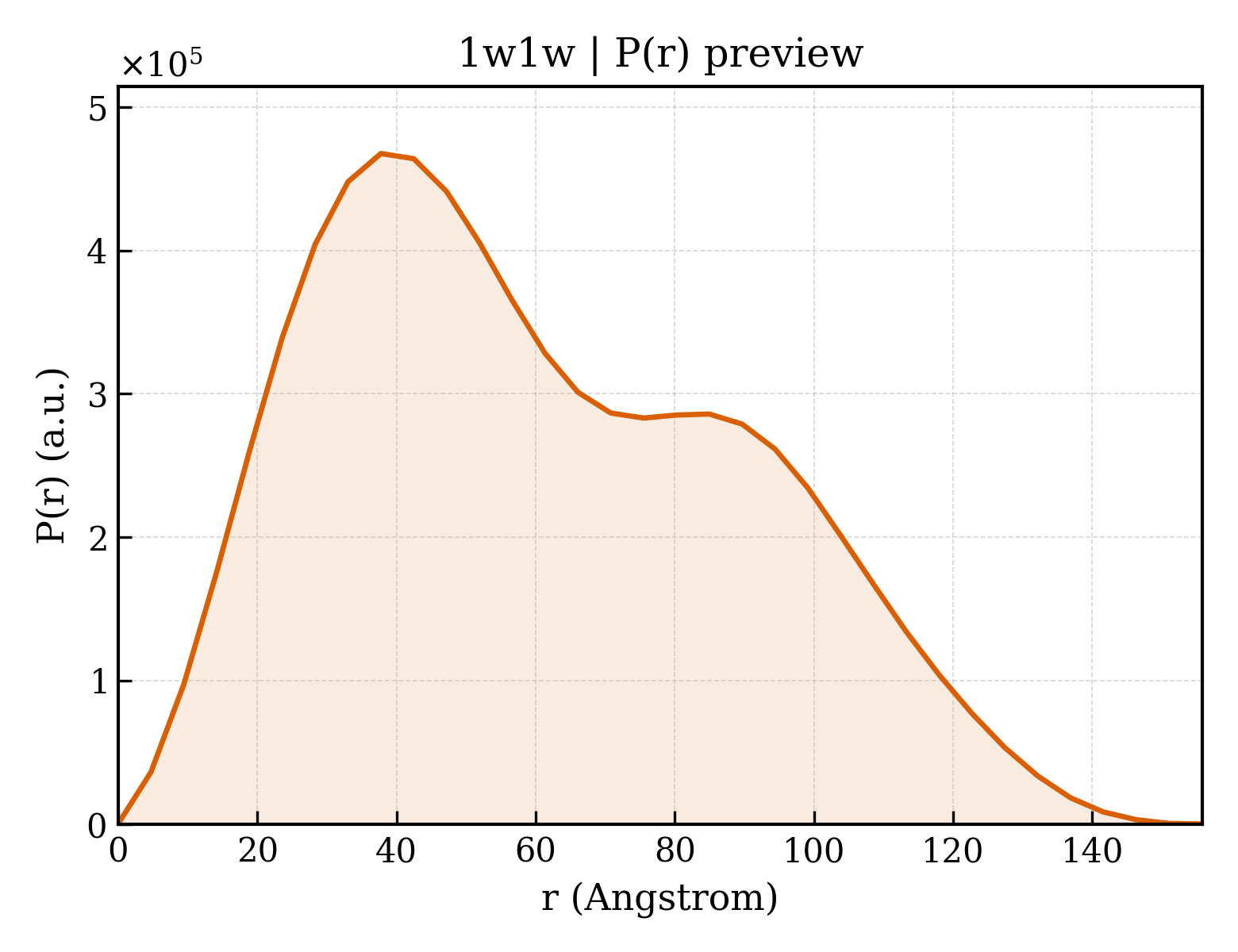

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1w1w
沉积日期 deposition_date	2004-06-24
结构标题 title	Sc Smc1hd:Scc1-C complex, ATPgS
关键词 keywords	COHESIN, CHROMOSOME SEGREGATION, CELL ADHESION, KLEISIN, MITOSIS, CELL CYCLE; CELL ADHESION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	47.15 Å
回转半径 Rg (电子) rg_electron	47.60 Å
零角强度 I(0) i0	429892000.00
分子量 molecular_weight	175620.0 kDa
排除体积 excluded_volume	221700 Å³
包络体积 envelope_volume	300350 Å³
水化壳体积 shell_volume	54354 Å³
包络直径 envelope_diameter	160.7 Å
壳层 Rg shell_rg	49.10 Å
包络 Rg envelope_rg	46.88 Å
形状 Rg shape_rg	47.60 Å
总 Rg total_rg	47.64 Å
总原子数 total_atoms	12360
残基数 n_residues	1539
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	155.8 Å
Rg (实空间) rg_real	47.53 Å
Rg 误差 (实空间) rg_real_error	1.35 Å
I(0) (实空间) i0_real	4.2990e+08
I(0) 误差 (实空间) i0_real_error	8.0560e+06
Rg (倒空间) rg_reciprocal	47.15 Å
I(0) (倒空间) i0_reciprocal	429700000.0000
解质量估计 total_estimate	0.8029
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.8 Å
偏度 Skewness skewness	0.390
峰度 Kurtosis kurtosis	-0.730
角度范围 angular_range	— – 0.1650 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	44640000.0000
实空间数据点数 n_real_points	34
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.722; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.866; Smooth: 0.403

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	STRUCTURAL MAINTENANCE OF CHROMOSOME 1
分子量 formula_weight	48855.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	12360

MGRLVGLELSNFKSYRGVTKVGFGESNFTSIIGPNGSGKSNMMDAISFVLGVRSNHLRSNILKDLIYRGVLNDENSDDYDNEGAASSNPQSAYVKAFYQKGNKLVELMRIISRNGDTSYKIDGKTVSYKDYSIFLENENILIKAKNFLVFQGDVEQIAAQSPVELSRMFEEVSGSIQYKKEYEELKEKIEKLSKSATESIKNRRRIHGELKTYKSPGLEVLFQGPRGSRYDEAEGRFEVINNETEQLKAEEKKILNQFLKIKKKRKELFEKTFDYVSDHLDAIYRELTKNPNSNVELAGGNASLTIEDEDEPFNAGIKYHATPPLKRFKDMEYLSGGEKTVAALALLFAINSYQPSPFFVLDEVDAALDITNVQRIAAYIRRHRNPDLQFIVISLKNTMFEKSDALVGVYRQQQENSSKIITLDLSNYAE

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	SISTER CHROMATID COHESION PROTEIN 1
分子量 formula_weight	13746.6 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F,G,H

MHHHHHHFPEENIIDAKTRNEQTTIQTEKVRPTPGEVASKAIVQMAKILRKELSEEKEVIFTDVLKSQANTEPENITKREASRGFFDILSLATEGCIGLSQTEAFGNIKIDAKPALFERFI

来源 Source

来源生物 organism	SACCHAROMYCES CEREVISIAE
通用名 common_name	;BAKER'S YEAST ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1w1wa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.12 — ABC transporter ATPase domain-like

结构域编号 domain_id	d1w1wb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.12 — ABC transporter ATPase domain-like

结构域编号 domain_id	d1w1wc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.12 — ABC transporter ATPase domain-like

结构域编号 domain_id	d1w1wd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.12 — ABC transporter ATPase domain-like

结构域编号 domain_id	d1w1we_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
家族 Family family	a.4.5.57 — Rad21/Rec8-like

结构域编号 domain_id	d1w1wf_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
家族 Family family	a.4.5.57 — Rad21/Rec8-like

结构域编号 domain_id	d1w1wg_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
家族 Family family	a.4.5.57 — Rad21/Rec8-like

结构域编号 domain_id	d1w1wh_
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.5 — 'Winged helix' DNA-binding domain
家族 Family family	a.4.5.57 — Rad21/Rec8-like

CATH v4.4 (8 domains)

结构域编号 domain_id	1w1wA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1w1wB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1w1wC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1w1wD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1w1wE00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	580 — Structural maintenance of chromosome 1. Chain E

结构域编号 domain_id	1w1wF00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	580 — Structural maintenance of chromosome 1. Chain E

结构域编号 domain_id	1w1wG00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	580 — Structural maintenance of chromosome 1. Chain E

结构域编号 domain_id	1w1wH00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	580 — Structural maintenance of chromosome 1. Chain E

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	138.465 Å
晶胞边长 b length_b	138.465 Å
晶胞边长 c length_c	284.074 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	32

空间群 space_group	P 43 21 2
空间群编号 int_tables_number	96
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	50.000 Å
R 因子 r_factor	0.2417
R_work r_work	0.2417
R_free r_free	0.2749

fit	/app/data/saxs_computation/w1/1w1w/1w1w.fit
pddf	/app/data/pr_computation/w1/1w1w/1w1w.pr.out
profile	/app/data/saxs_computation/w1/1w1w/1w1w.dat
