1w25

Response regulator PleD in complex with c-diGMP

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

STALKED-CELL DIFFERENTIATION CONTROLLING PROTEIN

CAULOBACTER VIBRIOIDES

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	ZINC ION × 1 MAGNESIUM ION × 2 ;9,9'-[(2R,3R,3aS,5S,7aR,9R,10R,10aS,12S,14aR)-3,5,10,12-tetrahydroxy-5,12-dioxidooctahydro-2H,7H-difuro[3,2-d:3',2'-j][1,3,7,9,2,8]tetraoxadiphosphacyclododecine-2,9-diyl]bis(2-amino-1,9-dihydro-6H-purin-6-one) ; × 5 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PLED_CAUCR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–453； UniProt 2–454 Author chain B； PDBConstruct 1–453； UniProt 2–454

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w25
Deposition date deposition_date	2004-06-28
Structure title title	Response regulator PleD in complex with c-diGMP
Keywords keywords	;TWO-COMPONENT SYSTEM, GGDEF DOMAIN, CYCLIC DINUCLEOTIDE, CYCLIC-DIGMP, ALLOSTERIC PRODUCT INHIBITION, PHOSPHORYLATION, SIGNALING PROTEIN ;; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w25__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1w25__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

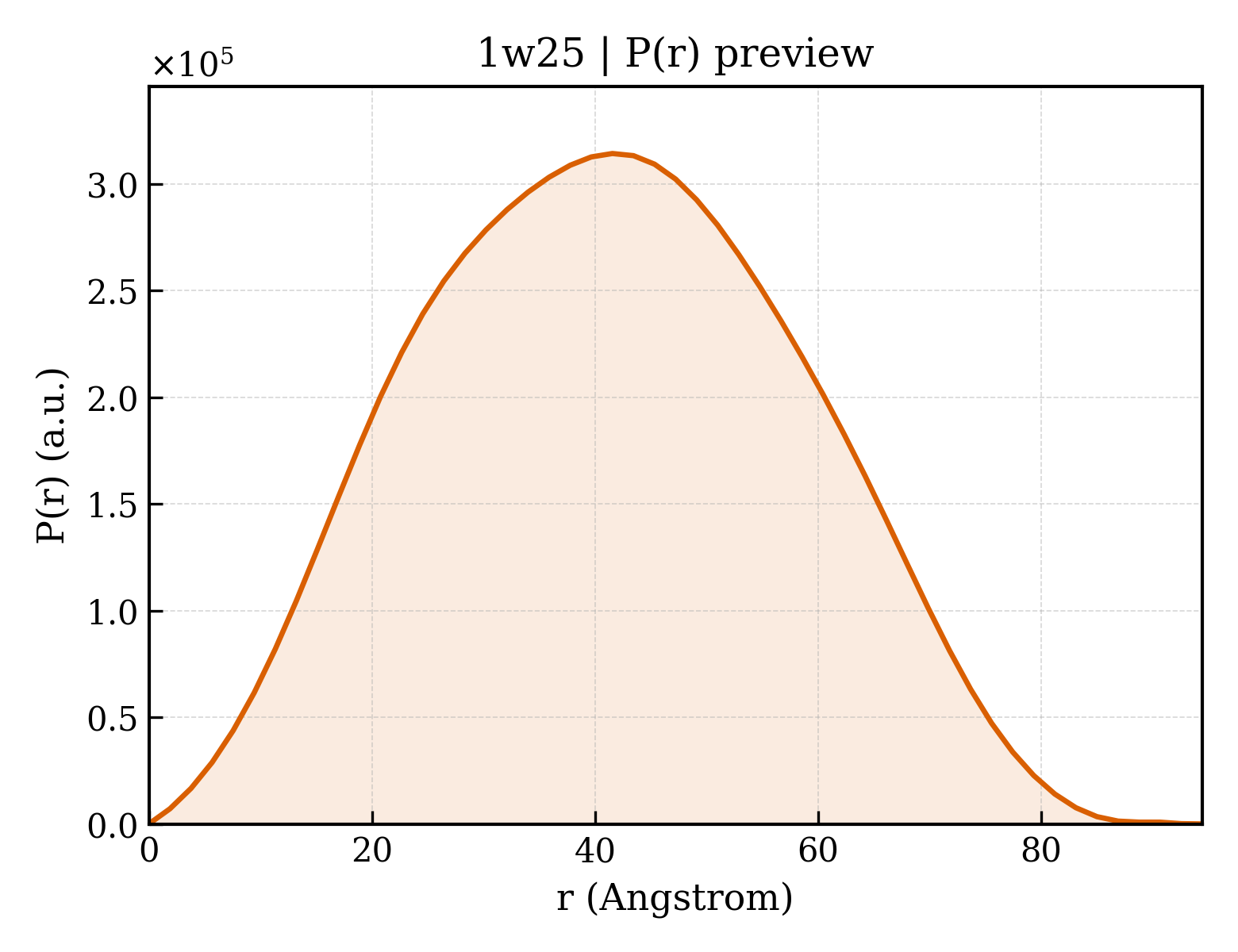

1w25__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.73 Å
Rg (electron density)	30.71 Å
Total Rg	31.47 Å
Atom count	7195
Residues	908
Excluded volume	126950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w25__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	STALKED-CELL DIFFERENTIATION CONTROLLING PROTEIN
Molecular weight formula_weight	50388.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7210

SARILVVDDIEANVRLLEAKLTAEYYEVSTAMDGPTALAMAARDLPDIILLDVMMPGMDGFTVCRKLKDDPTTRHIPVVLITALDGRGDRIQGLESGASDFLTKPIDDVMLFARVRSLTRFKLVIDELRQREASGRRMGVIAGAAARLDGLGGRVLIVDDNERQAQRVAAELGVEHRPVIESDPEKAKISAGGPVDLVIVNAAAKNFDGLRFTAALRSEERTRQLPVLAMVDPDDRGRMVKALEIGVNDILSRPIDPQELSARVKTQIQRKRYTDYLRNNLDHSLELAVTDQLTGLHNRRYMTGQLDSLVKRATLGGDPVSALLIDIDFFKKINDTFGHDIGDEVLREFALRLASNVRAIDLPCRYGGEEFVVIMPDTALADALRIAERIRMHVSGSPFTVAHGREMLNVTISIGVSATAGEGDTPEALLKRADEGVYQAKASGRNAVVGKAAHHHHHH

Source Source

Source organism organism	CAULOBACTER VIBRIOIDES
NCBI taxonomy ID ncbi_taxonomy_id	190650
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	;9,9'-[(2R,3R,3aS,5S,7aR,9R,10R,10aS,12S,14aR)-3,5,10,12-tetrahydroxy-5,12-dioxidooctahydro-2H,7H-difuro[3,2-d:3',2'-j][1,3,7,9,2,8]tetraoxadiphosphacyclododecine-2,9-diyl]bis(2-amino-1,9-dihydro-6H-purin-6-one) ;
Molecular weight formula_weight	690.4 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	15

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1w25a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

Domain ID domain_id	d1w25a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

Domain ID domain_id	d1w25a3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.29 — Nucleotide cyclase
Family Family family	d.58.29.2 — GGDEF domain

Domain ID domain_id	d1w25a4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1w25b1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

Domain ID domain_id	d1w25b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.1 — CheY-like
Family Family family	c.23.1.1 — CheY-related

Domain ID domain_id	d1w25b3
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.29 — Nucleotide cyclase
Family Family family	d.58.29.2 — GGDEF domain

Domain ID domain_id	d1w25b4
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	1w25A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1w25A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1w25A03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	1w25B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1w25B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	2300 — Response regulator

Domain ID domain_id	1w25B03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

▶

Unit-cell length a length_a	135.870 Å
Unit-cell length b length_b	135.870 Å
Unit-cell length c length_c	169.247 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2120
R_work r_work	0.2100
R_free r_free	0.2390
