SAXSdb — 1w2s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

COMPLEMENT C3 PRECURSOR

HOMO SAPIENS

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	COMPLEMENT RECEPTOR TYPE 2 PRECURSOR, × 1 （P20023）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CO3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–294； UniProt 996–1287 Author chain A； PDBConstruct 296–307； UniProt 1288–1299

COMPLEMENT RECEPTOR TYPE 2 PRECURSOR,

HOMO SAPIENS

UniProt P20023

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	COMPLEMENT C3 PRECURSOR × 1 （P01024）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CR2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–137； UniProt 21–153

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w2s
Deposition date deposition_date	2004-07-08
Structure title title	Solution structure of CR2 SCR 1-2 in its complex with C3d by X-ray scattering
Keywords keywords	;IMMUNE SYSTEM, X-RAY SCATTERING, ANALYTICAL ULTRACENTRIFUGATION, COMPLEMENT, THROMBOSPONDIN TYPE I REPEATS, CONSTRAINED MODELLING, GLYCOPROTEIN, IMMUNOLOGY ;; IMMUNE SYSTEM
Experimental Method method	SOLUTION SCATTERING

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w2s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

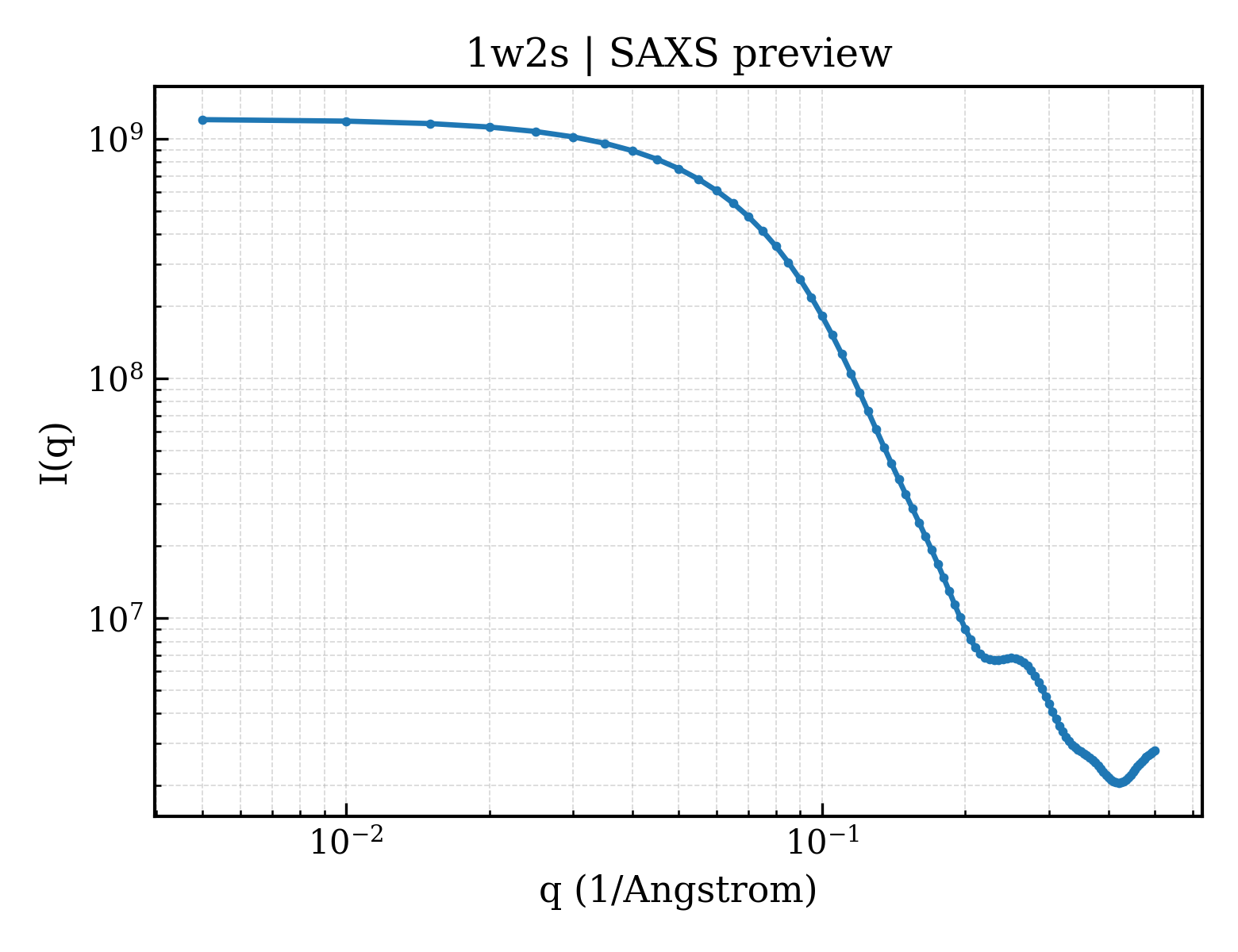

1w2s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1w2s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.88 Å
Rg (electron density)	23.18 Å
Total Rg	23.52 Å
Atom count	0
Residues	0
Excluded volume	61297 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w2s__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	2	`1w2s__assembly_1__model_2`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	3	`1w2s__assembly_1__model_3`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	4	`1w2s__assembly_1__model_4`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	5	`1w2s__assembly_1__model_5`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
1	6	`1w2s__assembly_1__model_6`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	COMPLEMENT C3 PRECURSOR
Molecular weight formula_weight	34379.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2694

MLDAERLKHLIVTPSGAGEQNMIGMTPTVIAVHYLDETEQWEKFGLEKRQGALELIKKGYTQQLAFRQPSSAFAAFVKRAPSTWLTAYVVKVFSLAVNLIAIDSQVLCGAVKWLILEKQKPDGVFQEDAPVIHQEMIGGLRNNNEKDMALTAFVLISLQEAKDICEEQVNSLPGSITKAGDFLEANYMNLQRSYTVAIAGYALAQMGRLKGPLLNKFLTTAKDKNRWEDPGKQLYNVEATSYALLALLQLKDFDFVPPVVRWLNEQRYYGGGYGSTQATFMVFQALAQYQKDAPSDHQELNLDVSLQ

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	COMPLEMENT RECEPTOR TYPE 2 PRECURSOR,
Molecular weight formula_weight	15611.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

EAEAISCGSPPPILNGRISYYSTPIAVGTVIRYSCSGTFRLIGEKSLLCITKDKVDGTWDKPAPKCQYFNKYSSCPEPIVPGGYKIRGSTPYRHGDSVTFACKTNFSMNGNKSVWCQANNMWGPTRLPTCVSVFPLEQKLIS

Source Source

Source organism organism	HOMO SAPIENS
Common name common_name	HUMAN
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	PICHIA PASTORIS

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1w2sa1
Class class	a — All alpha proteins
Fold Fold fold	a.102 — alpha/alpha toroid
Superfamily Superfamily superfamily	a.102.4 — Terpenoid cyclases/Protein prenyltransferases
Family Family family	a.102.4.4 — Complement components

Domain ID domain_id	d1w2sa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1w2sb1
Class class	g — Small proteins
Fold Fold fold	g.18 — Complement control module/SCR domain
Superfamily Superfamily superfamily	g.18.1 — Complement control module/SCR domain
Family Family family	g.18.1.1 — Complement control module/SCR domain

Domain ID domain_id	d1w2sb2
Class class	g — Small proteins
Fold Fold fold	g.18 — Complement control module/SCR domain
Superfamily Superfamily superfamily	g.18.1 — Complement control module/SCR domain
Family Family family	g.18.1.1 — Complement control module/SCR domain

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—
