SAXSdb — 1w33

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BBCRASP-1

BORRELIA BURGDORFERI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	GLYCEROL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7AUV9
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–181； UniProt 70–250 Author chain B； PDBConstruct 1–181； UniProt 70–250

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w33
Deposition date deposition_date	2004-07-13
Structure title title	BbCRASP-1 from Borrelia Burgdorferi
Keywords keywords	COMPLEMENT REGULATOR, COMPLEMENT REGULATOR ACQUIRING SURFACE PROTEIN, LYME BORRELIOSIS, FACTOR H BINDING, TICK, MEMBRANE PROTEIN; COMPLEMENT REGULATOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w33__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1w33__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

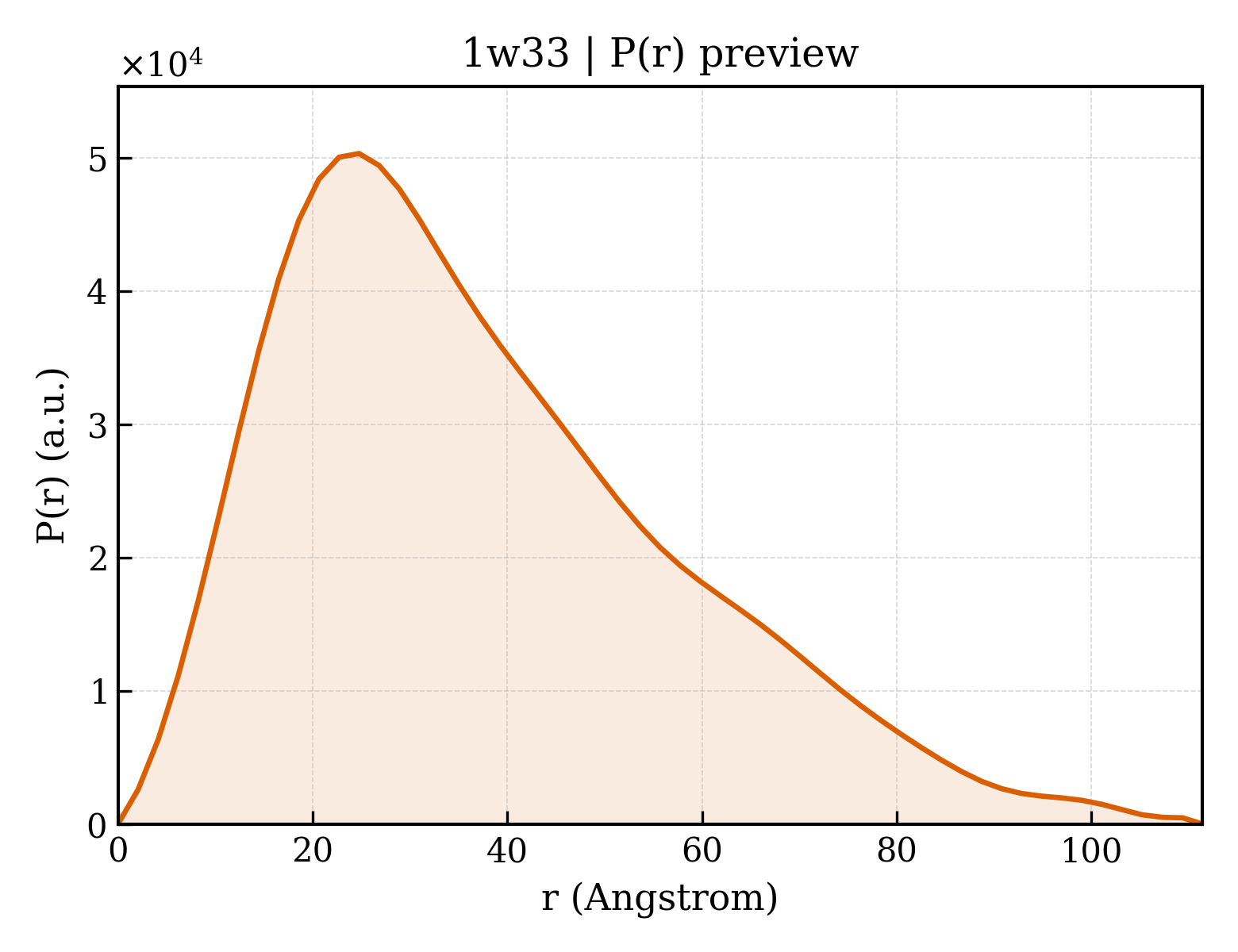

1w33__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.47 Å
Rg (electron density)	29.35 Å
Total Rg	29.83 Å
Atom count	3009
Residues	361
Excluded volume	54225 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w33__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	BBCRASP-1
Molecular weight formula_weight	21478.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3054

ETIASELKAIGKELEDQKKEENIQIAKIAKEKFDFLSTFKVGPYDLIDEDIQMKIKRTLYSSLDYKKENIEKLKEILEILKKNSEHYNIIGRLIYHISWGIQFQIEQNLELIQNGVENLSQEESKSLLMQIKSNLEIKQRLKKTLNETLKVYNQNTQDNEKILAEHFNKYYKDFDTLKPAF

Source Source

Source organism organism	BORRELIA BURGDORFERI
Common name common_name	LYME DISEASE SPIROCHETE
NCBI taxonomy ID ncbi_taxonomy_id	445985
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	41

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	1w33A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3160 — Bbcrasp-1
Homologous superfamily homologous superfamily	10 — Bbcrasp-1

Domain ID domain_id	1w33B00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3160 — Bbcrasp-1
Homologous superfamily homologous superfamily	10 — Bbcrasp-1

▶

Unit-cell length a length_a	89.803 Å
Unit-cell length b length_b	89.803 Å
Unit-cell length c length_c	145.580 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	19.880 Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—
