SAXSdb — 1w55

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ISPD/ISPF BIFUNCTIONAL ENZYME

CAMPYLOBACTER JEJUNI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	MAGNESIUM ION × 6 CYTIDINE-5'-MONOPHOSPHATE × 12 GERANYL DIPHOSPHATE × 6 1,2-ETHANEDIOL × 6 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ISDF_CAMJE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–371； UniProt 1–371

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w55
Deposition date deposition_date	2004-08-05
Structure title title	Structure of the Bifunctional IspDF from Campylobacter jejuni
Keywords keywords	BIFUNCTIONAL ENZYME, BIOSYNTHETIC PATHWAY, ISOPRENOIDS, BIFUNCTIONAL, NONMEVALONATE, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w55__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1w55__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

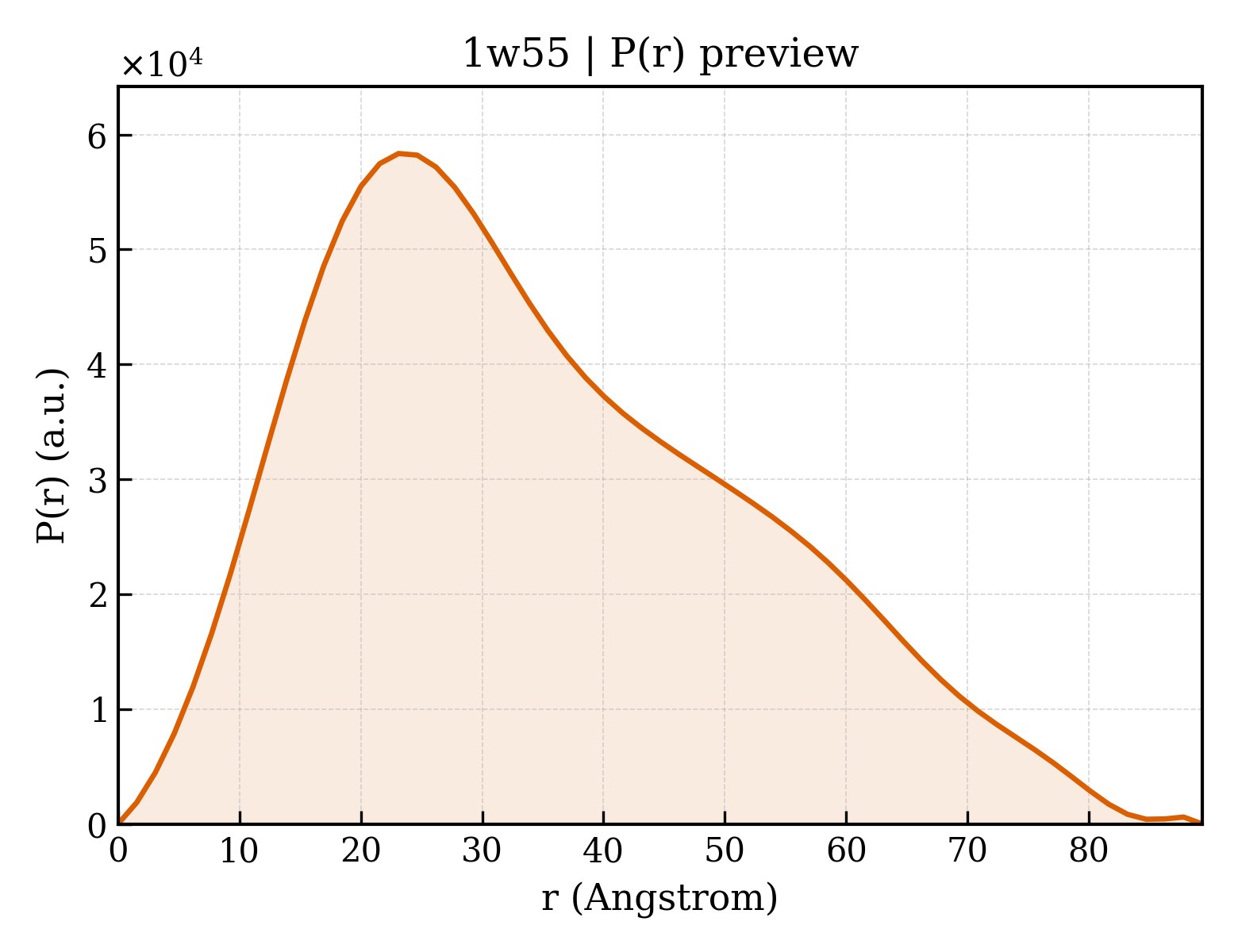

1w55__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	43.61 Å
Rg (electron density)	42.59 Å
Total Rg	43.21 Å
Atom count	17880
Residues	2214
Excluded volume	321310 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w55__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	ISPD/ISPF BIFUNCTIONAL ENZYME
Molecular weight formula_weight	41744.1 kDa
EC 编号 ec_number	2.7.7.60, 4.6.1.12
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3236

MSEMSLIMLAAGNSTRFNTKVKKQFLRLGNDPLWLYATKNLSSFYPFKKIVVTSSNITYMKKFTKNYEFIEGGDTRAESLKKALELIDSEFVMVSDVARVLVSKNLFDRLIENLDKADCITPALKVADTTLFDNEALQREKIKLIQTPQISKTKLLKKALDQNLEFTDDSTAIAAMGGKIWFVEGEENARKLTFKEDLKKLDLPTPSFEIFTGNGFDVHEFGENRPLLLAGVQIHPTMGLKAHSDGDVLAHSLTDAILGAAGLGDIGELYPDTDMKFKNANSMELLKQAYDKVREIGFELINIDICVMAQSPKLKDFKQAMQSNIAHTLDLDEFRINVKATTTEKLGFIGRKEGMAVLSSVNLKYFDWTRL

Source Source

Source organism organism	CAMPYLOBACTER JEJUNI
NCBI taxonomy ID ncbi_taxonomy_id	197
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CYTIDINE-5'-MONOPHOSPHATE
Molecular weight formula_weight	323.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	GERANYL DIPHOSPHATE
Molecular weight formula_weight	314.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	248

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1w55a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.13 — Cytidylytransferase

Domain ID domain_id	d1w55a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.79 — Bacillus chorismate mutase-like
Superfamily Superfamily superfamily	d.79.5 — IpsF-like
Family Family family	d.79.5.1 — IpsF-like

CATH v4.4 (2 domains)

Domain ID domain_id	1w55A01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1w55A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1330 — 60s Ribosomal Protein L30; Chain: A;
Homologous superfamily homologous superfamily	50 — 2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase

▶

Unit-cell length a length_a	108.758 Å
Unit-cell length b length_b	108.758 Å
Unit-cell length c length_c	161.262 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	14.960 Å
R factor r_factor	0.1700
R_work r_work	0.1670
R_free r_free	0.2220
