SAXSdb — 1w6j

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1w6j
沉积日期 deposition_date	2004-08-18
结构标题 title	Structure of human OSC in complex with Ro 48-8071
关键词 keywords	CYCLASE, CHOLESTEROL, LANOSTEROL, MONOTOPIC MEMBRANE PROTEIN, B-OCTYL-GLUCOSIDE, ISOMERASE, STEROID BIOSYNTHESIS; ISOMERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	26.47 Å
回转半径 Rg (电子) rg_electron	25.40 Å
零角强度 I(0) i0	113140000.00
分子量 molecular_weight	83936.0 kDa
排除体积 excluded_volume	104900 Å³
包络体积 envelope_volume	119350 Å³
水化壳体积 shell_volume	37320 Å³
包络直径 envelope_diameter	87.6 Å
壳层 Rg shell_rg	34.36 Å
包络 Rg envelope_rg	25.70 Å
形状 Rg shape_rg	25.40 Å
总 Rg total_rg	26.28 Å
总原子数 total_atoms	5914
残基数 n_residues	727
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	81.3 Å
Rg (实空间) rg_real	26.32 Å
Rg 误差 (实空间) rg_real_error	0.48 Å
I(0) (实空间) i0_real	1.1310e+08
I(0) 误差 (实空间) i0_real_error	1.6070e+06
Rg (倒空间) rg_reciprocal	26.37 Å
I(0) (倒空间) i0_reciprocal	113100000.0000
解质量估计 total_estimate	0.8996
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.9 Å
偏度 Skewness skewness	0.200
峰度 Kurtosis kurtosis	-0.399
角度范围 angular_range	— – 0.3000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	28480000.0000
实空间数据点数 n_real_points	61
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.984

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	LANOSTEROL SYNTHASE
分子量 formula_weight	83406.6 kDa
EC 编号 ec_number	5.4.99.7
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	6330

MTEGTCLRRRGGPYKTEPATDLGRWRLNCERGRQTWTYLQDERAGREQTGLEAYALGLDTKNYFKDLPKAHTAFEGALNGMTFYVGLQAEDGHWTGDYGGPLFLLPGLLITCHVARIPLPAGYREEIVRYLRSVQLPDGGWGLHIEDKSTVFGTALNYVSLRILGVGPDDPDLVRARNILHKKGGAVAIPSWGKFWLAVLNVYSWEGLNTLFPEMWLFPDWAPAHPSTLWCHCRQVYLPMSYCYAVRLSAAEDPLVQSLRQELYVEDFASIDWLAQRNNVAPDELYTPHSWLLRVVYALLNLYEHHHSAHLRQRAVQKLYEHIVADDRFTKSISIGPISKTINMLVRWYVDGPASTAFQEHVSRIPDYLWMGLDGMKMQGTNGSQIWDTAFAIQALLEAGGHHRPEFSSCLQKAHEFLRLSQVPDNPPDYQKYYRQMRKGGFSFSTLDCGWIVSDCTAEALKAVLLLQEKCPHVTEHIPRERLCDAVAVLLNMRNPDGGFATYETKRGGHLLELLNPSEVFGDIMIDYTYVECTSAVMQALKYFHKRFPEHRAAEIRETLTQGLEFCRRQQRADGSWEGSWGVCFTYGTWFGLEAFACMGQTYRDGTACAEVSRACDFLLSRQMADGGWGEDFESCEERRYLQSAQSQIHNTCWAMMGLMAVRHPDIEAQERGVRCLLEKQLPNGDWPQENIAGVFNKSCAISYTSYRNIFPIWALGRFSQLYPERALAGHP

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	PICHIA PASTORIS

Entity 2 non-polymer

描述 description	[4-({6-[ALLYL(METHYL)AMINO]HEXYL}OXY)-2-FLUOROPHENYL](4-BROMOPHENYL)METHANONE
分子量 formula_weight	448.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	octyl beta-D-glucopyranoside
分子量 formula_weight	292.4 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 4 non-polymer

描述 description	TETRADECANE
分子量 formula_weight	198.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	416

▼

6. 折叠分类 (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1w6ja1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.102 — alpha/alpha toroid
超家族 Superfamily superfamily	a.102.4 — Terpenoid cyclases/Protein prenyltransferases
家族 Family family	a.102.4.2 — Terpene synthases

结构域编号 domain_id	d1w6ja2
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.102 — alpha/alpha toroid
超家族 Superfamily superfamily	a.102.4 — Terpenoid cyclases/Protein prenyltransferases
家族 Family family	a.102.4.2 — Terpene synthases

CATH v4.4 (3 domains)

结构域编号 domain_id	1w6jA01
类 Class class	6 — Special
架构 Architecture architecture	20 — Other non-globular
拓扑 Topology topology	120 — OB fold (Dihydrolipoamide Acetyltransferase, E2P)
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1w6jA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	50 — Alpha/alpha barrel
拓扑 Topology topology	10 — Glycosyltransferase
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1w6jA03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	50 — Alpha/alpha barrel
拓扑 Topology topology	10 — Glycosyltransferase
同源超家族 H-superfamily homologous superfamily	20 —

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	189.915 Å
晶胞边长 b length_b	202.424 Å
晶胞边长 c length_c	62.638 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 2 2 21
空间群编号 int_tables_number	20
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	141.420 Å
R 因子 r_factor	0.1710
R_work r_work	0.1700
R_free r_free	0.1990

fit	/app/data/saxs_computation/w6/1w6j/1w6j.fit
pddf	/app/data/pr_computation/w6/1w6j/1w6j.pr.out
profile	/app/data/saxs_computation/w6/1w6j/1w6j.dat

Structure of human OSC in complex with Ro 48-8071

SAXS 散射曲线 SAXS Profile

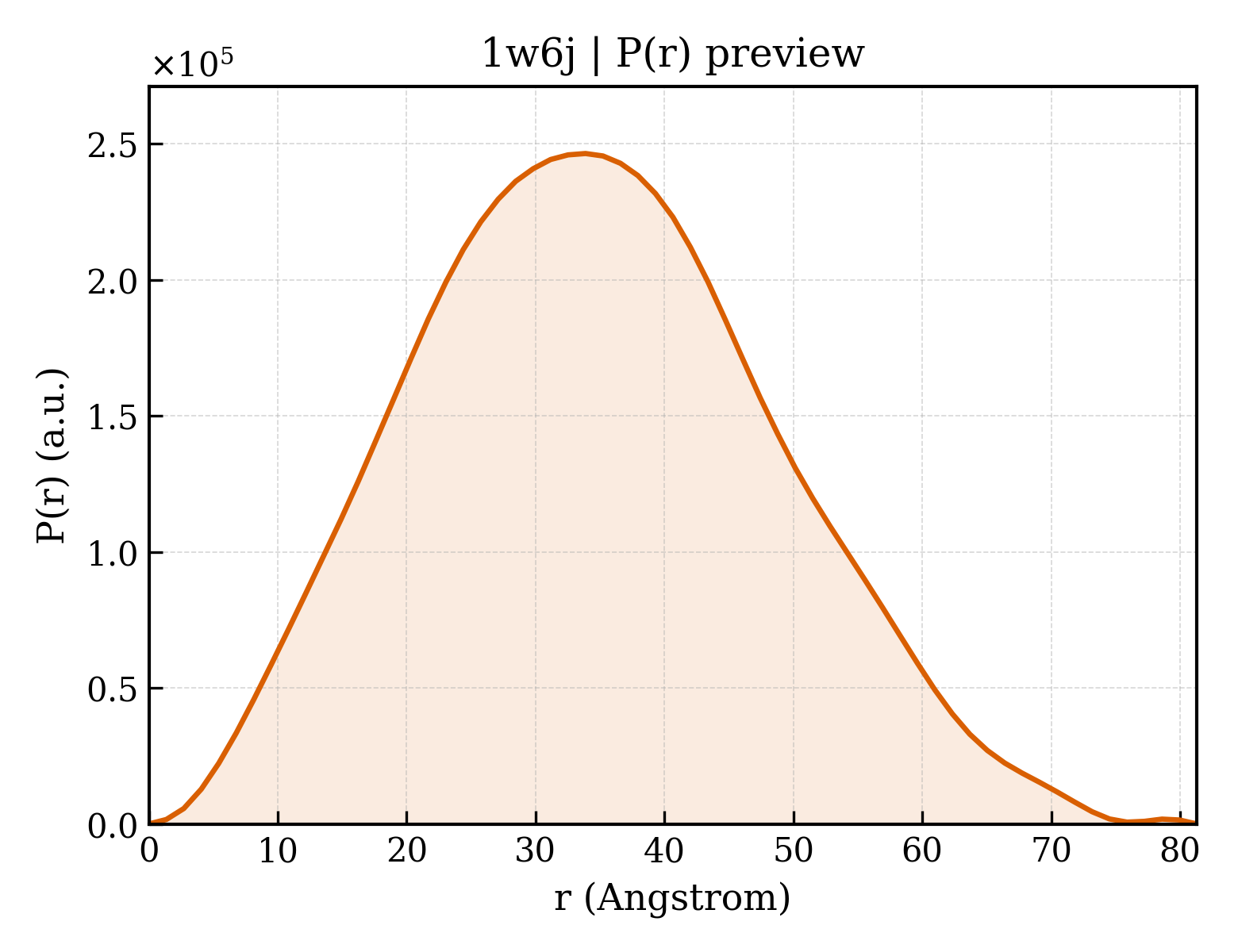

P(r) 距离分布 P(r) Distribution
