SACCHAROMYCES CEREVISIAE
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | COAC_YEAST |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–553； UniProt 14–566 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1w93 |
| Deposition date deposition_date | 2004-10-05 |
| Structure title title | Crystal Structure of Biotin Carboxylase Domain of Acetyl-Coenzyme A Carboxylase from Saccharomyces cerevisiae |
| Keywords keywords | OBESITY, DIABETES, FATTY ACID METABOLISM, STRUCTURE-BASED DRUG DESIGN, ALLOSTERIC INHIBITION, POLYKETIDE, LIGASE; LIGASE |
| Experimental Method method | X-RAY DIFFRACTION |

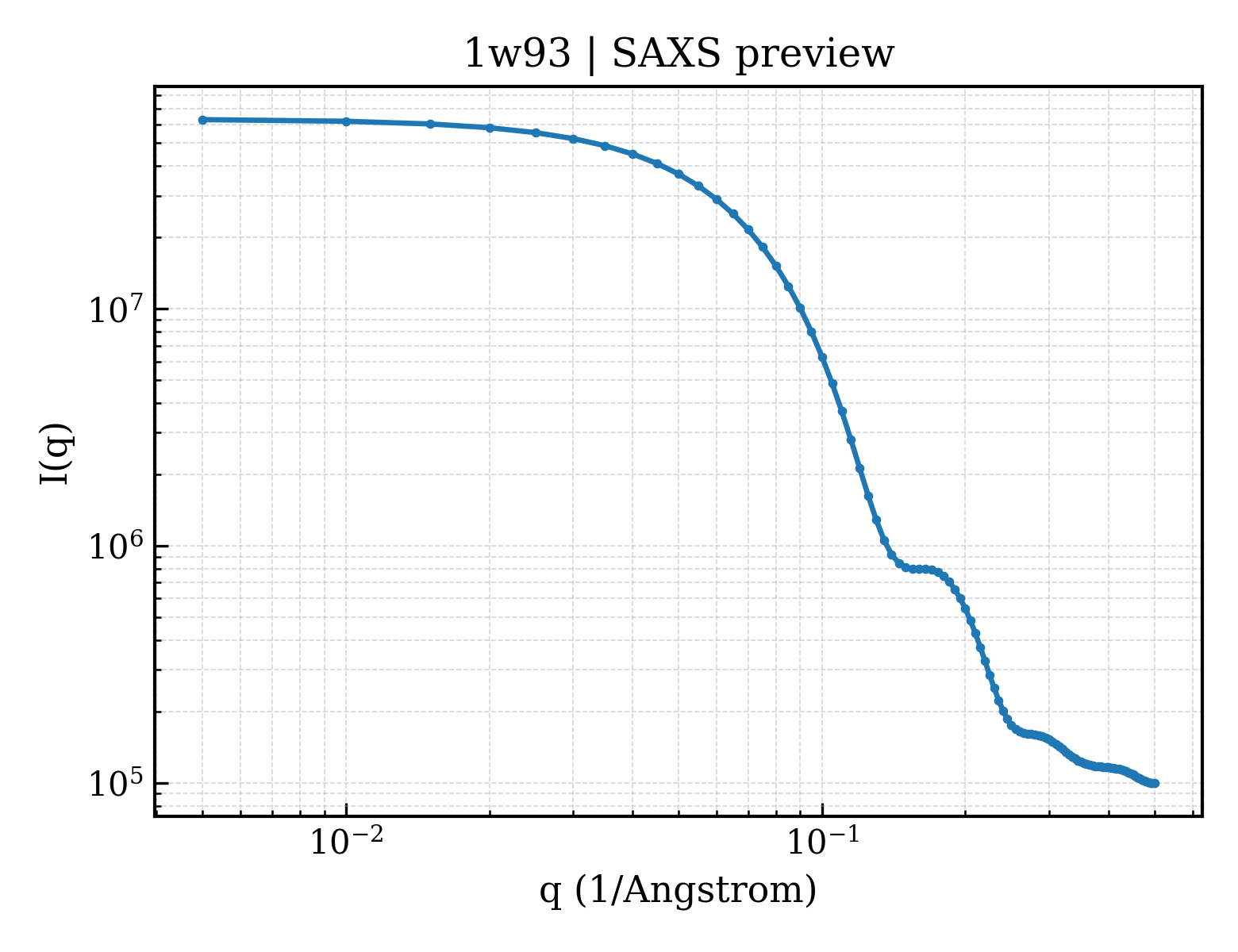

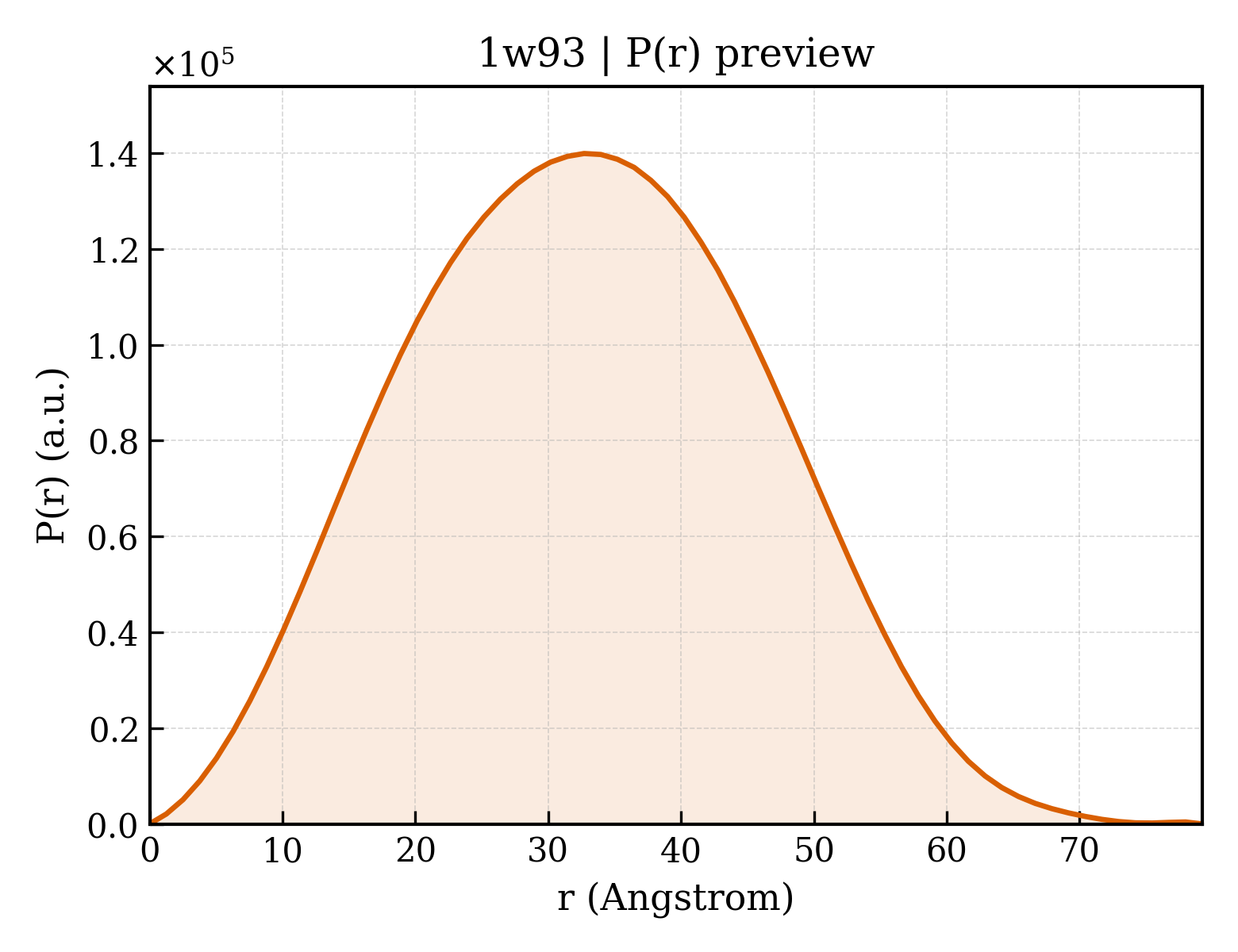

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 25.16 Å |
| Rg (electron density) | 24.02 Å |
| Total Rg | 24.90 Å |
| Atom count | 4289 |
| Residues | 549 |
| Excluded volume | 75776 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1w93a1 |
| Class class | b — All beta proteins |
| Fold Fold fold | b.84 — Barrel-sandwich hybrid |
| Superfamily Superfamily superfamily | b.84.2 — Rudiment single hybrid motif |
| Family Family family | b.84.2.1 — BC C-terminal domain-like |
| Domain ID domain_id | d1w93a2 |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.30 — PreATP-grasp domain |
| Superfamily Superfamily superfamily | c.30.1 — PreATP-grasp domain |
| Family Family family | c.30.1.1 — BC N-terminal domain-like |
| Domain ID domain_id | d1w93a3 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.142 — ATP-grasp |
| Superfamily Superfamily superfamily | d.142.1 — Glutathione synthetase ATP-binding domain-like |
| Family Family family | d.142.1.2 — BC ATP-binding domain-like |
| Domain ID domain_id | 1w93A01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 20 — |
| Domain ID domain_id | 1w93A02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 90 — Alpha-Beta Complex |
| Topology topology | 1770 — PreATP-grasp fold |
| Homologous superfamily homologous superfamily | 10 — PreATP-grasp domain |
| Domain ID domain_id | 1w93A03 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 1490 — Dna Ligase; domain 1 |
| Homologous superfamily homologous superfamily | 20 — ATP-grasp fold, A domain |
| Domain ID domain_id | 1w93A04 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 470 — D-amino Acid Aminotransferase; Chain A, domain 1 |
| Homologous superfamily homologous superfamily | 20 — ATP-grasp fold, B domain |
