1wdw

Structural basis of mutual activation of the tryptophan synthase a2b2 complex from a hyperthermophile, Pyrococcus furiosus

Method: X-RAY DIFFRACTION D_max: 236.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1wdw
沉积日期 deposition_date	2004-05-19
结构标题 title	Structural basis of mutual activation of the tryptophan synthase a2b2 complex from a hyperthermophile, Pyrococcus furiosus
关键词 keywords	alpha/beta, alpha+beta, RIKEN Structural Genomics/Proteomics Initiative, RSGI, Structural Genomics, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	90.23 Å
回转半径 Rg (电子) rg_electron	91.06 Å
零角强度 I(0) i0	2223450000.00
分子量 molecular_weight	416090.0 kDa
排除体积 excluded_volume	526910 Å³
包络体积 envelope_volume	860170 Å³
水化壳体积 shell_volume	81945 Å³
包络直径 envelope_diameter	291.1 Å
壳层 Rg shell_rg	81.71 Å
包络 Rg envelope_rg	86.82 Å
形状 Rg shape_rg	91.05 Å
总 Rg total_rg	90.98 Å
总原子数 total_atoms	29342
残基数 n_residues	3760
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

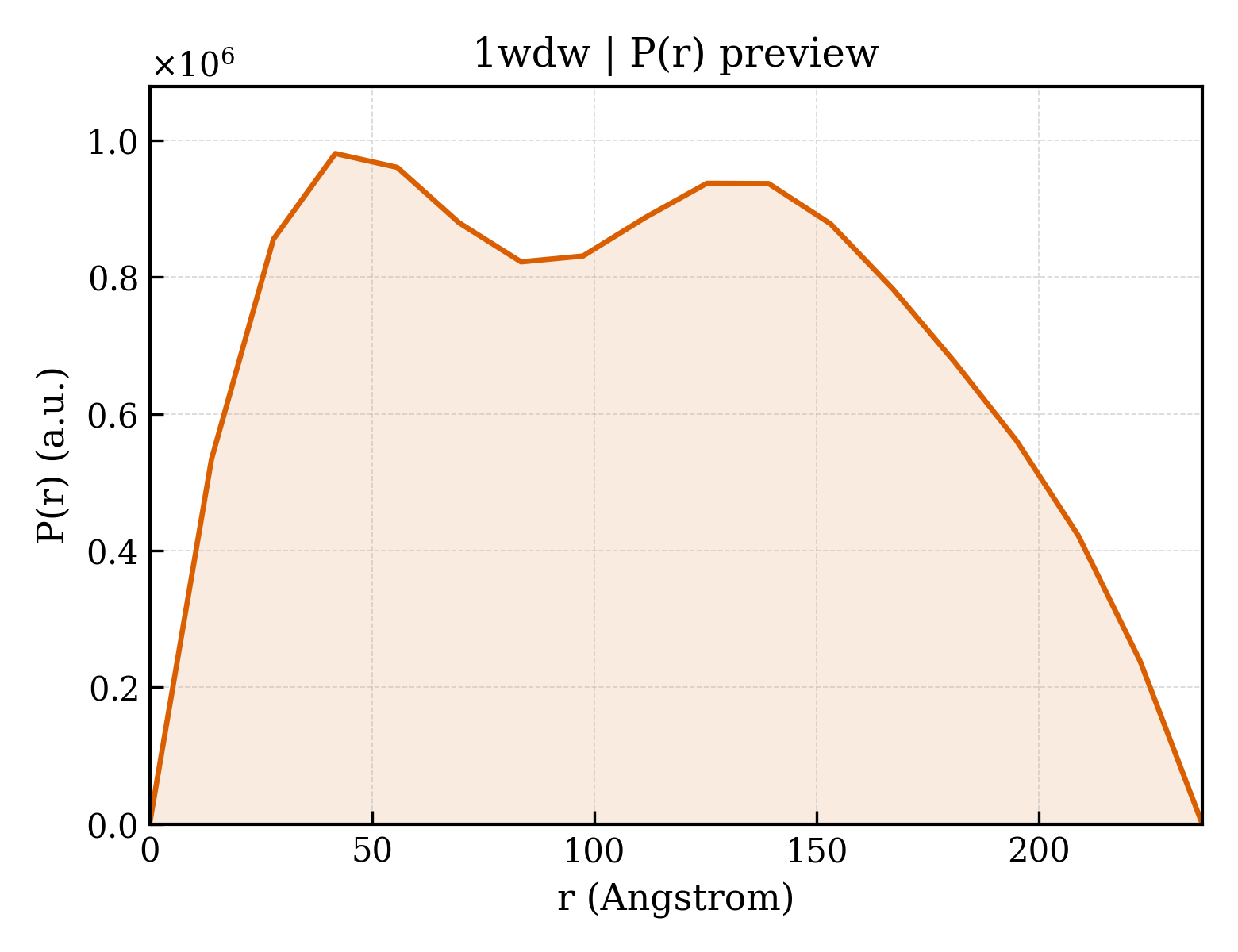

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	236.7 Å
Rg (实空间) rg_real	86.74 Å
Rg 误差 (实空间) rg_real_error	0.93 Å
I(0) (实空间) i0_real	2.1310e+09
I(0) 误差 (实空间) i0_real_error	4.6300e+07
Rg (倒空间) rg_reciprocal	86.51 Å
I(0) (倒空间) i0_reciprocal	2198000000.0000
解质量估计 total_estimate	0.6132
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	41.8 Å
偏度 Skewness skewness	0.119
峰度 Kurtosis kurtosis	-1.060
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	1.3340
最高正则化参数 α highest_alpha	25360000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.904; Stabil: 0.936; Sysdev: 0.000; Positv: 1.000; Valcen: 0.554; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Tryptophan synthase alpha chain
分子量 formula_weight	27535.8 kDa
EC 编号 ec_number	4.2.1.20
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,I,K
原子数 atom_count	29563

MFKDGSLIPYLTAGDPDKQSTLNFLLALDEYAGAIELGIPFSDPIADGKTIQESHYRALKNGFKLREAFWIVKEFRRHSSTPIVLMTYYNPIYRAGVRNFLAEAKASGVDGILVVDLPVFHAKEFTEIAREEGIKTVFLAAPNTPDERLKVIDDMTTGFVYLVSLYGTTGAREEIPKTAYDLLRRAKRICRNKVAVGFGVSKREHVVSLLKEGANGVVVGSALVKIIGEKGREATEFLKKKVEELLGI

来源 Source

来源生物 organism	Pyrococcus furiosus
NCBI 分类编号 ncbi_taxonomy_id	2261
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Tryptophan synthase beta chain 1
分子量 formula_weight	42315.5 kDa
EC 编号 ec_number	4.2.1.20
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H,J,L

MWFGEFGGQYVPETLIEPLKELEKAYKRFKDDEEFNRQLNYYLKTWAGRPTPLYYAKRLTEKIGGAKIYLKREDLVHGGAHKTNNAIGQALLAKFMGKTRLIAETGAGQHGVATAMAGALLGMKVDIYMGAEDVERQKMNVFRMKLLGANVIPVNSGSRTLKDAINEALRDWVATFEYTHYLIGSVVGPHPYPTIVRDFQSVIGREAKAQILEAEGQLPDVIVACVGGGSNAMGIFYPFVNDKKVKLVGVEAGGKGLESGKHSASLNAGQVGVFHGMLSYFLQDEEGQIKPTHSIAPGLDYPGVGPEHAYLKKIQRAEYVTVTDEEALKAFHELSRTEGIIPALESAHAVAYAMKLAKEMSRDEIIIVNLSGRGDKDLDIVLKVS

来源 Source

来源生物 organism	Pyrococcus furiosus
NCBI 分类编号 ncbi_taxonomy_id	2261
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	PYRIDOXAL-5'-PHOSPHATE
分子量 formula_weight	247.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	221

▼

6. 折叠分类 (SCOP + CATH) 30 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1wdwa_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
家族 Family family	c.1.2.4 — Tryptophan biosynthesis enzymes

结构域编号 domain_id	d1wdwb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1wdwc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
家族 Family family	c.1.2.4 — Tryptophan biosynthesis enzymes

结构域编号 domain_id	d1wdwd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1wdwe_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
家族 Family family	c.1.2.4 — Tryptophan biosynthesis enzymes

结构域编号 domain_id	d1wdwf_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1wdwg_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
家族 Family family	c.1.2.4 — Tryptophan biosynthesis enzymes

结构域编号 domain_id	d1wdwh_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1wdwi_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
家族 Family family	c.1.2.4 — Tryptophan biosynthesis enzymes

结构域编号 domain_id	d1wdwj_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1wdwk_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.2 — Ribulose-phoshate binding barrel
家族 Family family	c.1.2.4 — Tryptophan biosynthesis enzymes

结构域编号 domain_id	d1wdwl_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

CATH v4.4 (18 domains)

结构域编号 domain_id	1wdwA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

结构域编号 domain_id	1wdwB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

结构域编号 domain_id	1wdwD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwE00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

结构域编号 domain_id	1wdwF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwF02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwG00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

结构域编号 domain_id	1wdwH01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwH02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwI00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

结构域编号 domain_id	1wdwJ01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwK00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	70 — Aldolase class I

结构域编号 domain_id	1wdwL01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1wdwL02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	89.056 Å
晶胞边长 b length_b	220.257 Å
晶胞边长 c length_c	292.560 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	3.000 Å
最低分辨率 resolution_low	89.170 Å
R 因子 r_factor	0.1960
R_work r_work	0.1960
R_free r_free	0.2310
