SAXSdb — 1wek

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1wek
沉积日期 deposition_date	2004-05-25
结构标题 title	Crystal structure of the conserved hypothetical protein TT1465 from Thermus thermophilus HB8
关键词 keywords	Rossmann fold, Structural genomics, RIKEN Structural Genomics/Proteomics Initiative, RSGI, unknown function; Structural genomics, unknown function
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.11 Å
回转半径 Rg (电子) rg_electron	34.07 Å
零角强度 I(0) i0	278368000.00
分子量 molecular_weight	139640.0 kDa
排除体积 excluded_volume	176370 Å³
包络体积 envelope_volume	213460 Å³
水化壳体积 shell_volume	51152 Å³
包络直径 envelope_diameter	103.6 Å
壳层 Rg shell_rg	41.83 Å
包络 Rg envelope_rg	33.92 Å
形状 Rg shape_rg	34.08 Å
总 Rg total_rg	34.57 Å
总原子数 total_atoms	9886
残基数 n_residues	1234
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	105.7 Å
Rg (实空间) rg_real	34.97 Å
Rg 误差 (实空间) rg_real_error	0.62 Å
I(0) (实空间) i0_real	2.7840e+08
I(0) 误差 (实空间) i0_real_error	4.0460e+06
Rg (倒空间) rg_reciprocal	35.06 Å
I(0) (倒空间) i0_reciprocal	278400000.0000
解质量估计 total_estimate	0.9073
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	42.3 Å
偏度 Skewness skewness	0.136
峰度 Kurtosis kurtosis	-0.661
角度范围 angular_range	— – 0.2250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	46480000.0000
实空间数据点数 n_real_points	46
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.979; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.857

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	hypothetical protein TT1465
分子量 formula_weight	24402.6 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	10248

MPKKPLIDQLHHEDSWRLFRILAEFVEGFETLSELQVPLVSVFGSARFGEGHPAYEAGYRLGRALAEAGFGVVTGGGPGVMEAVNRGAYEAGGVSVGLNIELPHEQKPNPYQTHALSLRYFFVRKVLFVRYAVGFVFLPGGFGTLDELSEVLVLLQTEKVHRFPVFLLDRGYWEGLVRWLAFLRDQKAVGPEDLQLFRLTDEPEEVVQALKAEAPPR

来源 Source

来源生物 organism	Thermus thermophilus
NCBI 分类编号 ncbi_taxonomy_id	274
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	PHOSPHATE ION
分子量 formula_weight	95.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	362

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

结构域编号 domain_id	d1weka_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.129 — MCP/YpsA-like
超家族 Superfamily superfamily	c.129.1 — MCP/YpsA-like
家族 Family family	c.129.1.1 — MoCo carrier protein-like

结构域编号 domain_id	d1wekb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.129 — MCP/YpsA-like
超家族 Superfamily superfamily	c.129.1 — MCP/YpsA-like
家族 Family family	c.129.1.1 — MoCo carrier protein-like

结构域编号 domain_id	d1wekc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.129 — MCP/YpsA-like
超家族 Superfamily superfamily	c.129.1 — MCP/YpsA-like
家族 Family family	c.129.1.1 — MoCo carrier protein-like

结构域编号 domain_id	d1wekd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.129 — MCP/YpsA-like
超家族 Superfamily superfamily	c.129.1 — MCP/YpsA-like
家族 Family family	c.129.1.1 — MoCo carrier protein-like

结构域编号 domain_id	d1weke_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.129 — MCP/YpsA-like
超家族 Superfamily superfamily	c.129.1 — MCP/YpsA-like
家族 Family family	c.129.1.1 — MoCo carrier protein-like

结构域编号 domain_id	d1wekf_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.129 — MCP/YpsA-like
超家族 Superfamily superfamily	c.129.1 — MCP/YpsA-like
家族 Family family	c.129.1.1 — MoCo carrier protein-like

CATH v4.4 (6 domains)

结构域编号 domain_id	1wekA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	450 —

结构域编号 domain_id	1wekB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	450 —

结构域编号 domain_id	1wekC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	450 —

结构域编号 domain_id	1wekD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	450 —

结构域编号 domain_id	1wekE01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	450 —

结构域编号 domain_id	1wekF01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	450 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	65.650 Å
晶胞边长 b length_b	83.798 Å
晶胞边长 c length_c	265.143 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	14.940 Å
R 因子 r_factor	0.1980
R_work r_work	0.1980
R_free r_free	0.2500

fit	/app/data/saxs_computation/we/1wek/1wek.fit
pddf	/app/data/pr_computation/we/1wek/1wek.pr.out
profile	/app/data/saxs_computation/we/1wek/1wek.dat

Crystal structure of the conserved hypothetical protein TT1465 from Thermus thermophilus HB8

SAXS 散射曲线 SAXS Profile

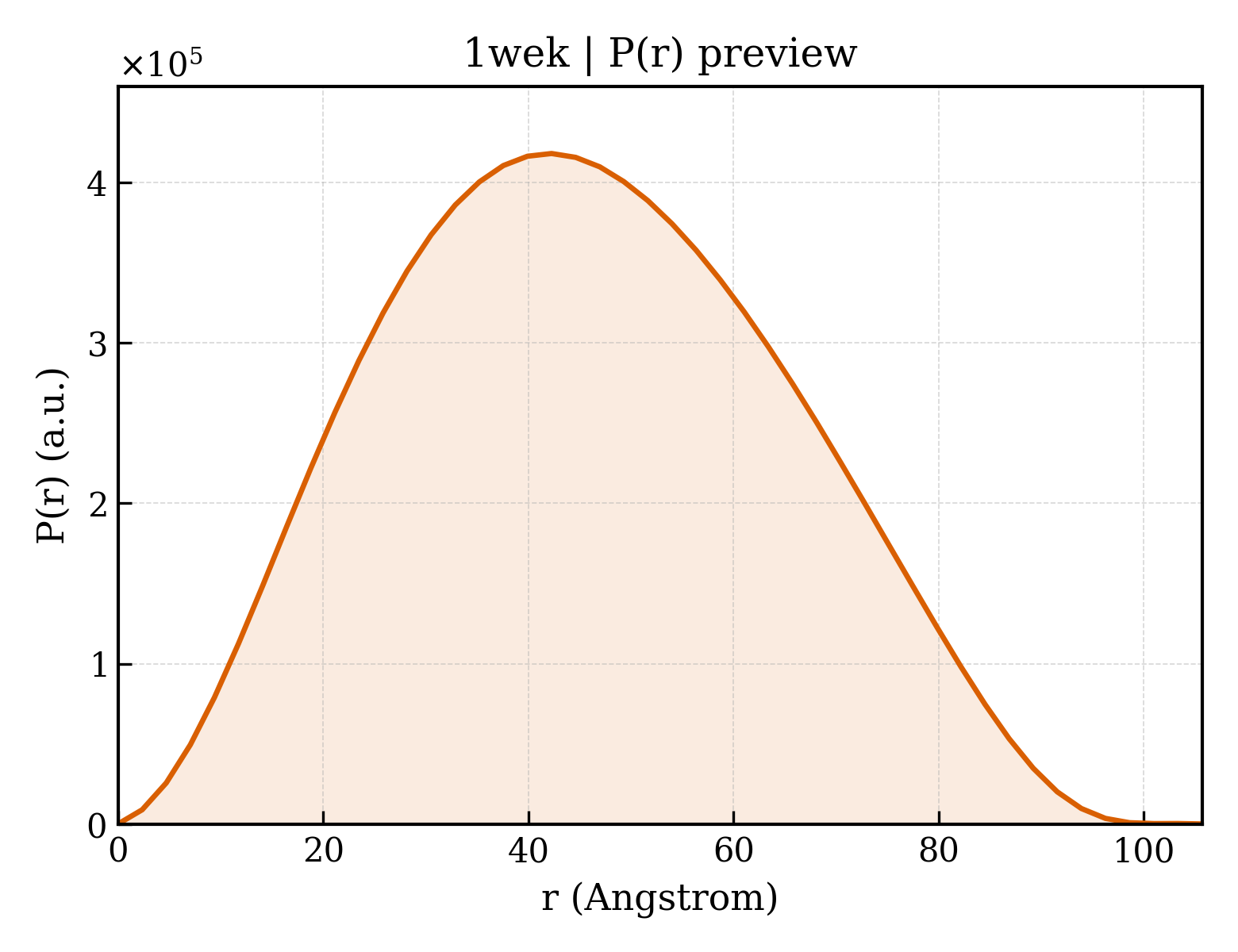

P(r) 距离分布 P(r) Distribution
