1wgt

X-RAY STRUCTURE OF WHEAT GERM AGGLUTININ ISOLECTIN 3

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

WHEAT GERM LECTIN

Triticum aestivum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AGI3_WHEAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–186； UniProt 2–186 Author chain B； PDBConstruct 2–186； UniProt 2–186

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wgt
Deposition date deposition_date	1995-04-17
Structure title title	X-RAY STRUCTURE OF WHEAT GERM AGGLUTININ ISOLECTIN 3
Keywords keywords	LECTIN (AGGLUTININ); LECTIN (AGGLUTININ)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wgt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

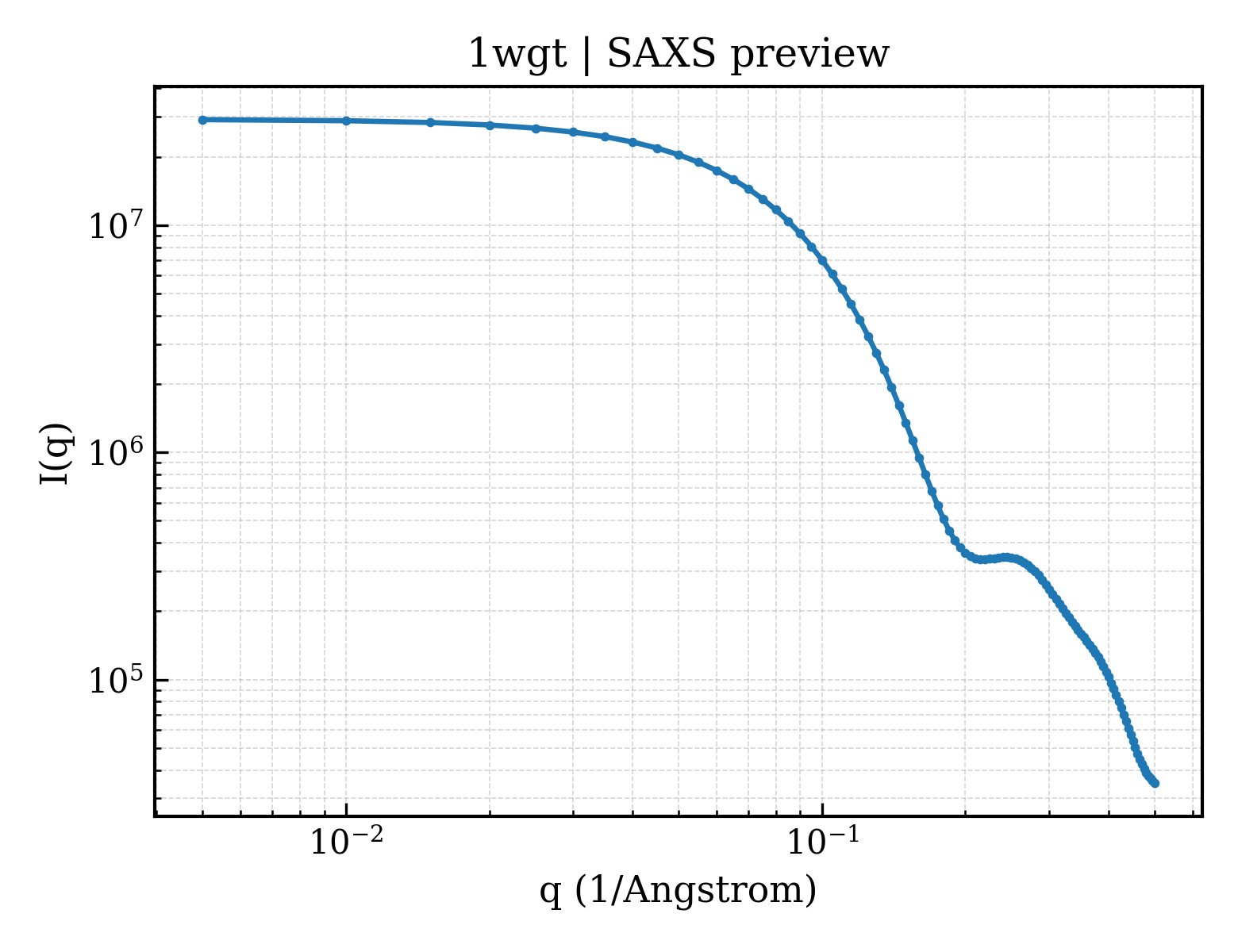

1wgt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

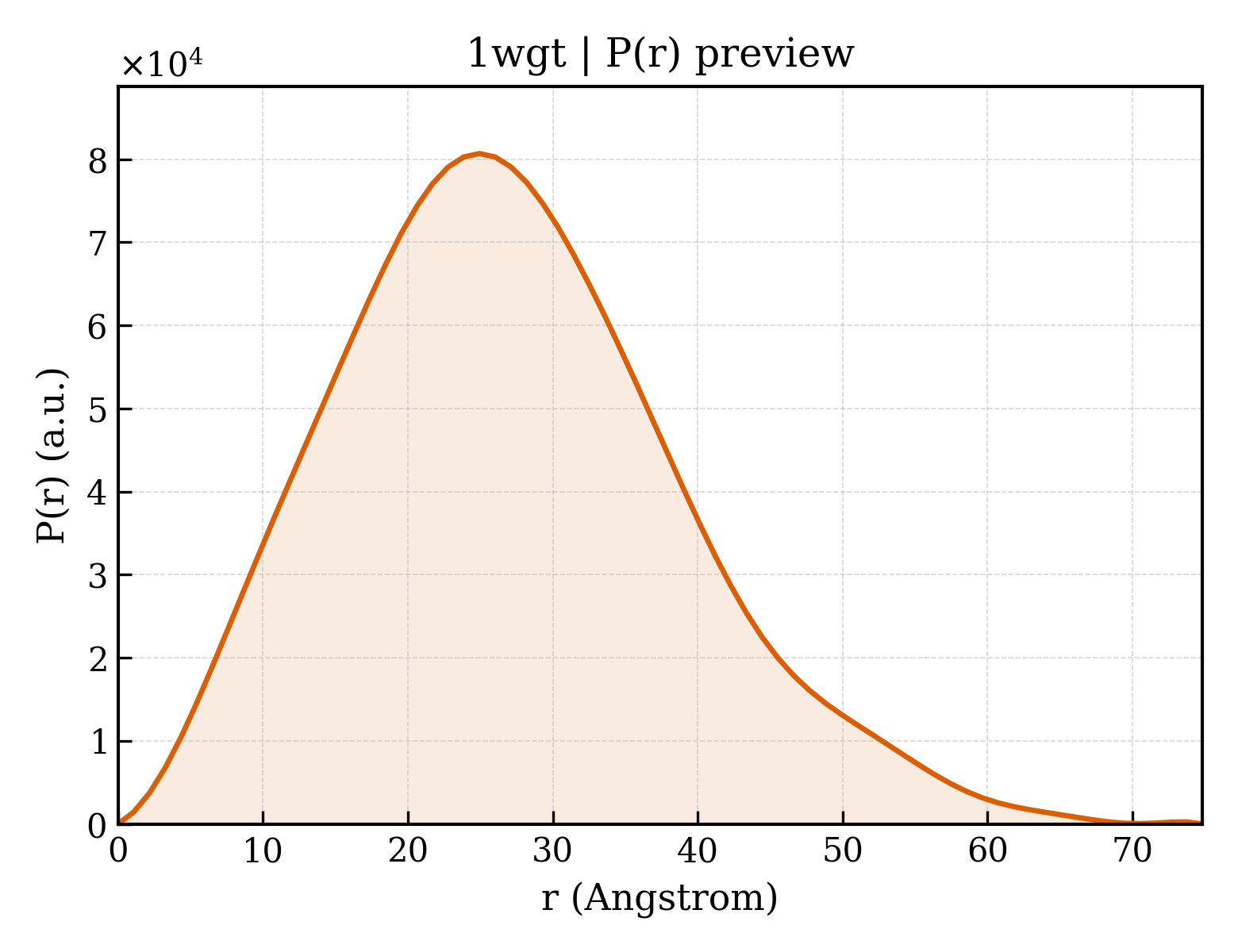

1wgt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.78 Å
Rg (electron density)	20.32 Å
Total Rg	20.87 Å
Atom count	2346
Residues	340
Excluded volume	39938 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wgt__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_id	d1wgta1
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1wgta2
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1wgta3
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1wgta4
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1wgtb1
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1wgtb2
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1wgtb3
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

Domain ID domain_id	d1wgtb4
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.1 — Plant lectins/antimicrobial peptides
Family Family family	g.3.1.1 — Hevein-like agglutinin (lectin) domain

CATH v4.4 (8 domains)

Domain ID domain_id	1wgtA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1wgtA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1wgtA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1wgtA04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1wgtB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1wgtB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1wgtB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

Domain ID domain_id	1wgtB04
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	60 — Wheat Germ Agglutinin (Isolectin 2); domain 1
Homologous superfamily homologous superfamily	10 — Endochitinase-like

▶

Unit-cell length a length_a	44.860 Å
Unit-cell length b length_b	91.020 Å
Unit-cell length c length_c	44.860 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	110.20 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.1910
R_work r_work	0.1910
R_free r_free	—

Description description	WHEAT GERM LECTIN
Molecular weight formula_weight	18752.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2704

X-RAY STRUCTURE OF WHEAT GERM AGGLUTININ ISOLECTIN 3

1. Protein Identity and Related Structures Protein Identity & Related Structures

WHEAT GERM LECTIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1wgt__assembly_1__model_1

1wgt__assembly_1__model_1 | I(q)

1wgt__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

CATH v4.4 (8 domains)

7. Citations (1)

Source organism organism	Triticum aestivum
Common name common_name	bread wheat
NCBI taxonomy ID ncbi_taxonomy_id	4565

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	358
