Mus musculus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | SRP54_MOUSE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 8–93； UniProt 4–89 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1wgw |
| Deposition date deposition_date | 2004-05-28 |
| Structure title title | Solution Structure of the N-terminal Domain of Mouse Putative Signal Recognition Particle 54 (SRP54) |
| Keywords keywords | ;Signal recognition particle 54 (SRP54), four helical bundle, structural genomics, RIKEN Structural Genomics/Proteomics Initiative, RSGI, SIGNALING PROTEIN ;; SIGNALING PROTEIN |
| Experimental Method method | SOLUTION NMR |

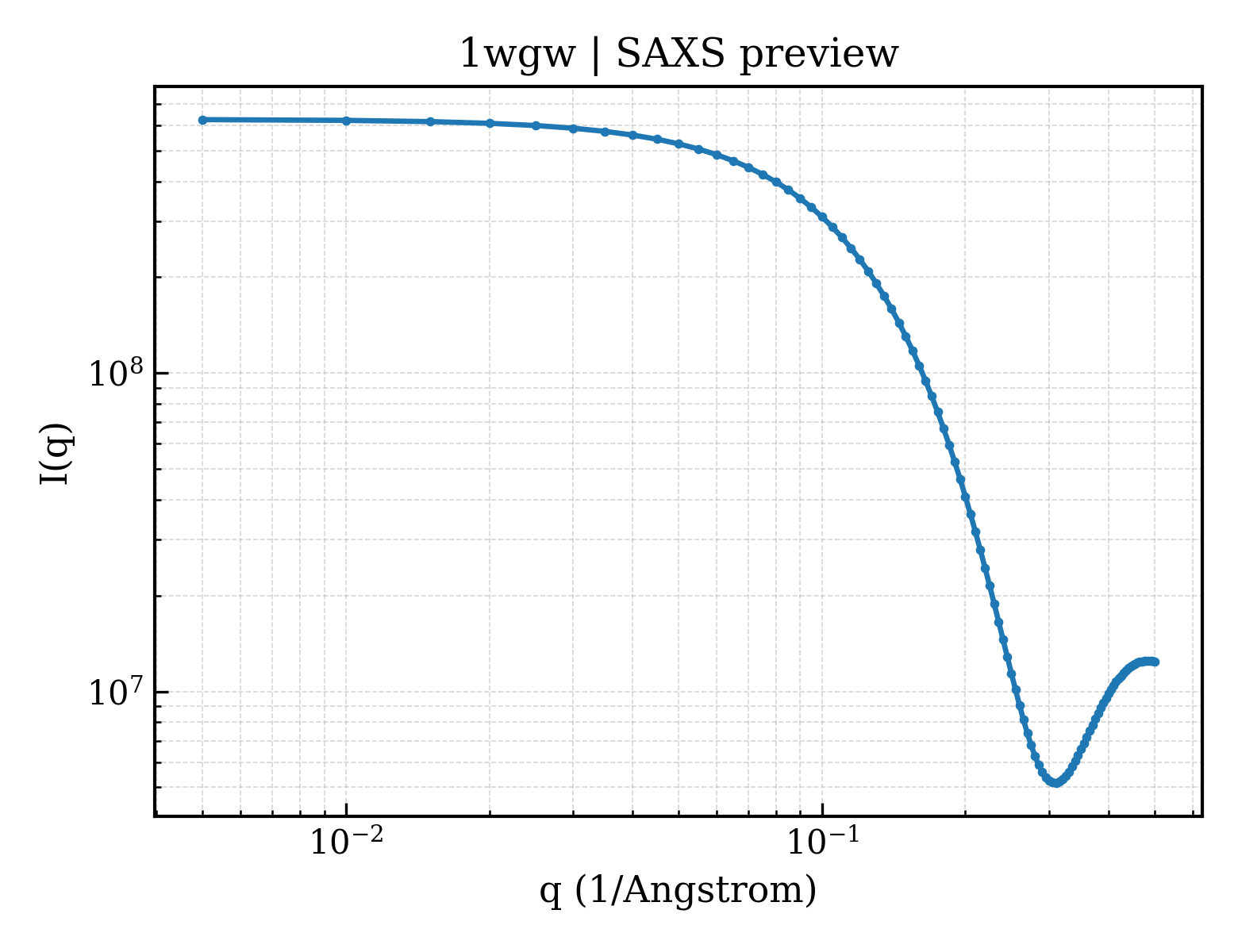

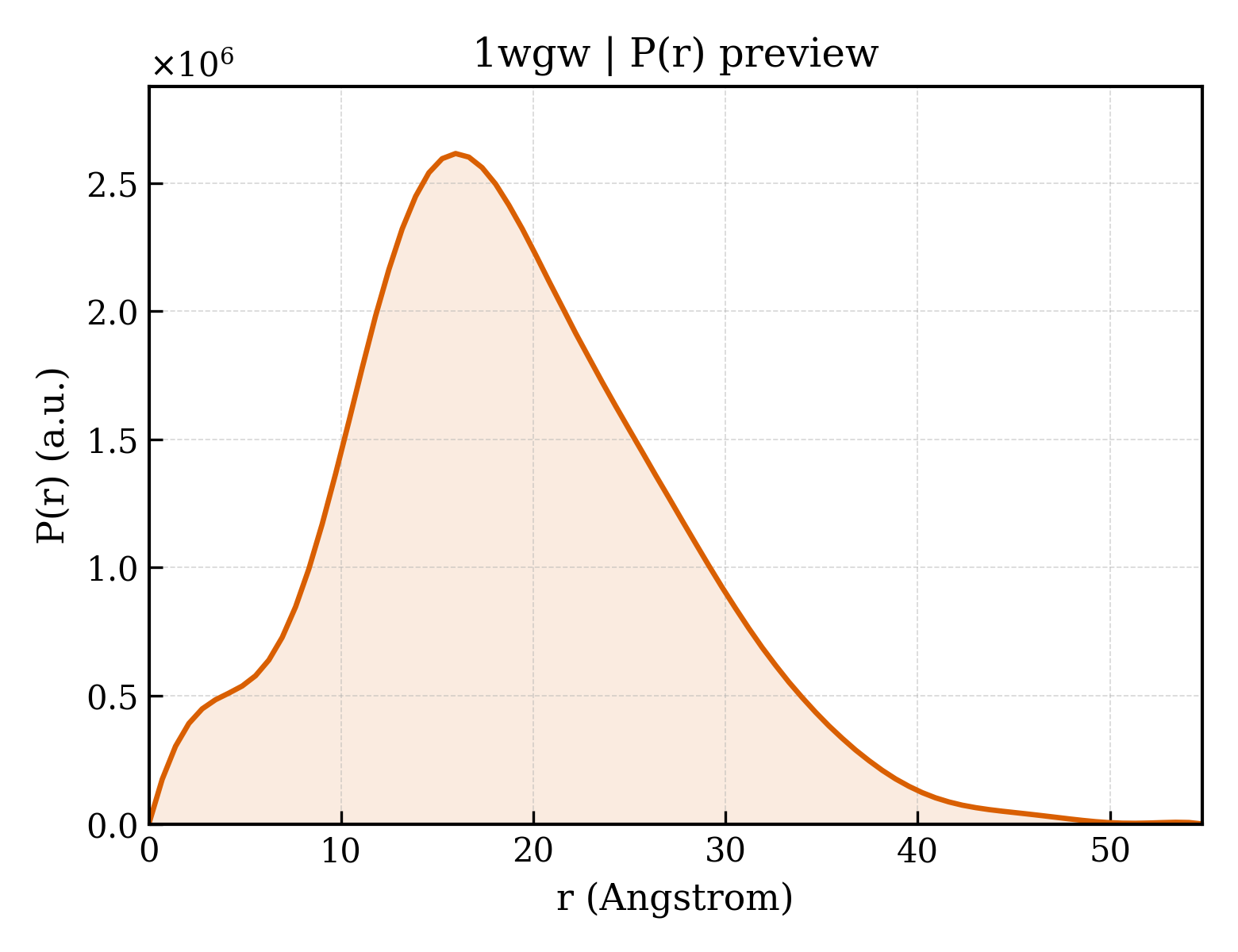

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 15.58 Å |
| Rg (electron density) | 13.98 Å |
| Total Rg | 15.21 Å |
| Atom count | 1523 |
| Residues | 99 |
| Excluded volume | 13324 ų |
| Maximum q | 0.500 Å⁻¹ |
| Assembly | Model | Structure unit | Oligomeric description | Status | CRYSOL | Actions |
|---|---|---|---|---|---|---|
| 1 | 1 | 1wgw__assembly_1__model_1 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 2 | 1wgw__assembly_1__model_2 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 3 | 1wgw__assembly_1__model_3 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 4 | 1wgw__assembly_1__model_4 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 5 | 1wgw__assembly_1__model_5 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 6 | 1wgw__assembly_1__model_6 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 7 | 1wgw__assembly_1__model_7 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 8 | 1wgw__assembly_1__model_8 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 9 | 1wgw__assembly_1__model_9 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 10 | 1wgw__assembly_1__model_10 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 11 | 1wgw__assembly_1__model_11 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 12 | 1wgw__assembly_1__model_12 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 13 | 1wgw__assembly_1__model_13 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 14 | 1wgw__assembly_1__model_14 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 15 | 1wgw__assembly_1__model_15 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 16 | 1wgw__assembly_1__model_16 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 17 | 1wgw__assembly_1__model_17 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 18 | 1wgw__assembly_1__model_18 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 19 | 1wgw__assembly_1__model_19 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| 1 | 20 | 1wgw__assembly_1__model_20 |
monomeric （1） | Success | 4.1.3-1-20251215 (887e7ef) | View Download |
| Domain ID domain_id | d1wgwa1 |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.24 — Four-helical up-and-down bundle |
| Superfamily Superfamily superfamily | a.24.13 — Domain of the SRP/SRP receptor G-proteins |
| Family Family family | a.24.13.1 — Domain of the SRP/SRP receptor G-proteins |
| Domain ID domain_id | d1wgwa2 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | d1wgwa3 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | 1wgwA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 20 — Up-down Bundle |
| Topology topology | 120 — Four Helix Bundle (Hemerythrin (Met), subunit A) |
| Homologous superfamily homologous superfamily | 140 — SRP54, nucleotide-binding domain |
