Thermus thermophilus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | CHLORIDE ION × 1 water × 1 | Consistent with protein count |
| UniProt name | Q5SH17_THET8 |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 3–70； UniProt 1–68 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1whz |
| Deposition date deposition_date | 2004-05-28 |
| Structure title title | Crystal structure of a hypothetical protein from thermus thermophilus HB8 |
| Keywords keywords | Alpha and beta protein, STRUCTURAL GENOMICS, RIKEN Structural Genomics/Proteomics Initiative, RSGI, UNKNOWN FUNCTION; STRUCTURAL GENOMICS, UNKNOWN FUNCTION |
| Experimental Method method | X-RAY DIFFRACTION |

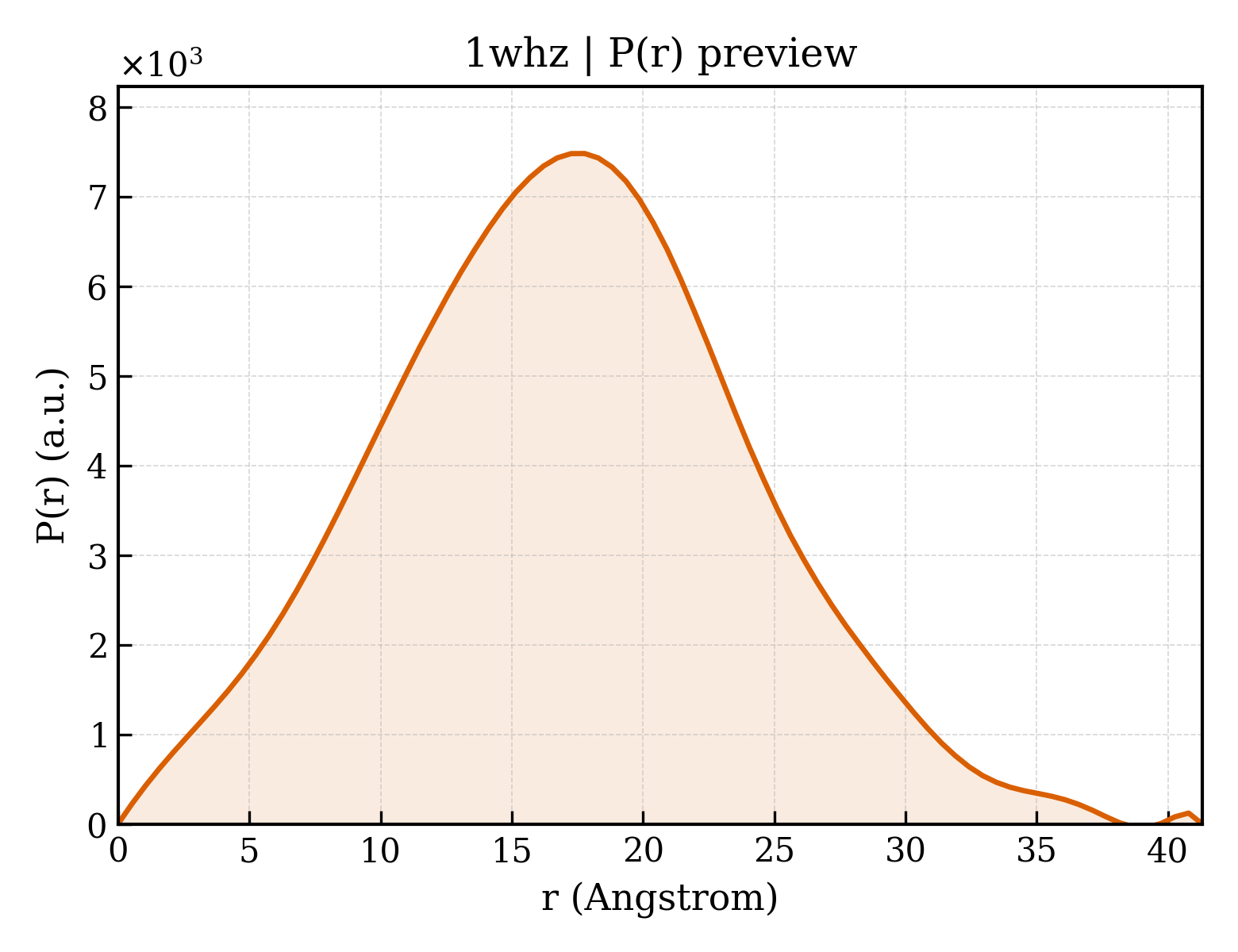

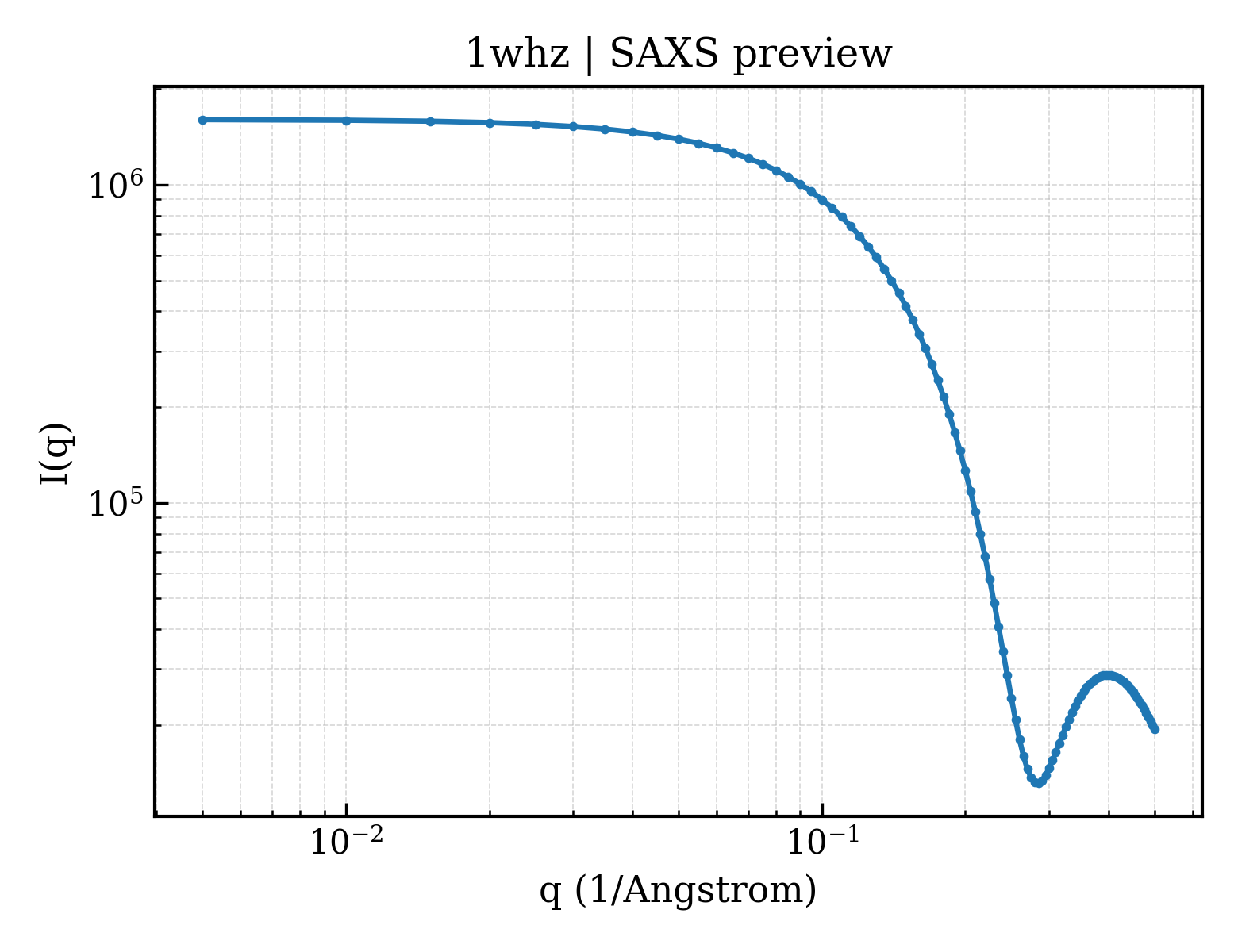

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 13.12 Å |
| Rg (electron density) | 11.53 Å |
| Total Rg | 13.24 Å |
| Atom count | 577 |
| Residues | 67 |
| Excluded volume | 10312 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1whza_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.50 — dsRBD-like |
| Superfamily Superfamily superfamily | d.50.3 — YcfA/nrd intein domain |
| Family Family family | d.50.3.2 — YcfA-like |
| Domain ID domain_id | 1whzA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 920 — Metal Transport, Frataxin; Chain A |
| Homologous superfamily homologous superfamily | 30 — Hypothetical protein. |
