SAXSdb — 1wlw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Congerin II

Conger myriaster

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 2	beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose × 2 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	LEG2_CONMY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–135； UniProt 1–135

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wlw
Deposition date deposition_date	2004-06-30
Structure title title	Congerin II Y16S single mutant
Keywords keywords	galectin, beta-sandwich, thermostability, mutant, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wlw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

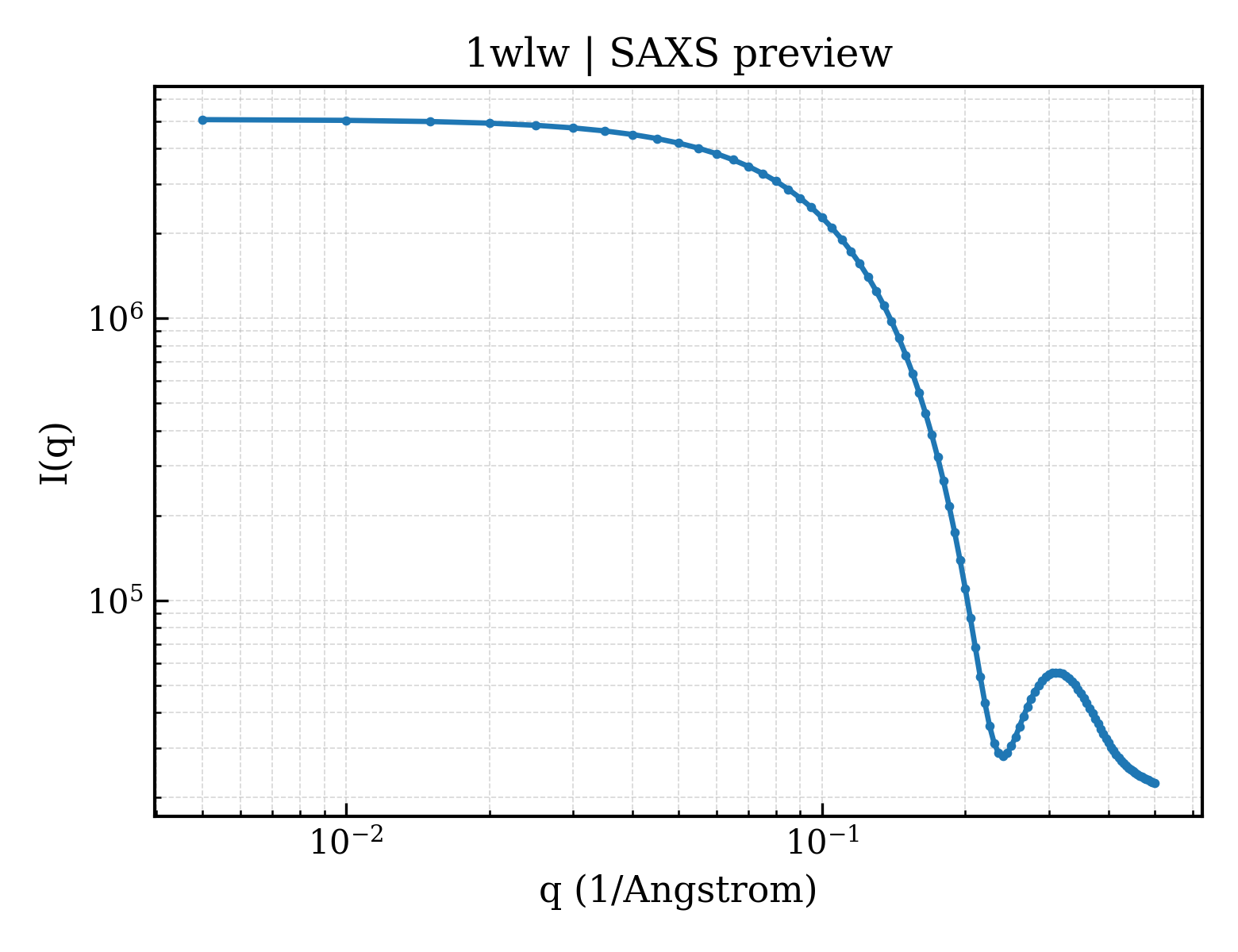

1wlw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1wlw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.07 Å
Rg (electron density)	20.05 Å
Total Rg	20.82 Å
Atom count	2214
Residues	268
Excluded volume	38952 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wlw__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Congerin II
Molecular weight formula_weight	15278.0 kDa
Mutation mutation	Y16S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1257

SDRAEVRNIPFKLGMSLTVGGVVNSNATRFSINVGESTDSIAMHMDHRFSYGADQNVLVLNSLVHNVGWQQEERSKKFPFTKGDHFQTTITFDTHTFYIQLSNGETVEFPNRNKDAAFNLIYLAGDARLTFVRLE

Source Source

Source organism organism	Conger myriaster
Common name common_name	whitespotted conger
NCBI taxonomy ID ncbi_taxonomy_id	7943
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 branched

Description description	beta-D-galactopyranose-(1-4)-alpha-D-glucopyranose
Molecular weight formula_weight	342.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2-(N-MORPHOLINO)-ETHANESULFONIC ACID
Molecular weight formula_weight	195.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	119

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1wlwa_
Class class	b — All beta proteins
Fold Fold fold	b.29 — Concanavalin A-like lectins/glucanases
Superfamily Superfamily superfamily	b.29.1 — Concanavalin A-like lectins/glucanases
Family Family family	b.29.1.3 — Galectin (animal S-lectin)

CATH v4.4 (1 domains)

Domain ID domain_id	1wlwA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	200 —

▶

Unit-cell length a length_a	60.970 Å
Unit-cell length b length_b	60.970 Å
Unit-cell length c length_c	78.830 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	—
R_work r_work	0.1730
R_free r_free	0.1770
