SAXSdb — 1wmy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

lectin CEL-I, N-acetyl-D-galactosamine-specific C-type

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 6 (4S)-2-METHYL-2,4-PENTANEDIOL × 2 water × 2	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 4	CALCIUM ION × 12 (4S)-2-METHYL-2,4-PENTANEDIOL × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q7M462_9ECHN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–140； UniProt 1–140 Author chain B； PDBConstruct 1–140； UniProt 1–140

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1wmy
Deposition date deposition_date	2004-07-22
Structure title title	Crystal Structure of C-type Lectin CEL-I from Cucumaria echinata
Keywords keywords	C-type lectin, N-acetylgalactosamine, Invertebrate, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1wmy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1wmy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

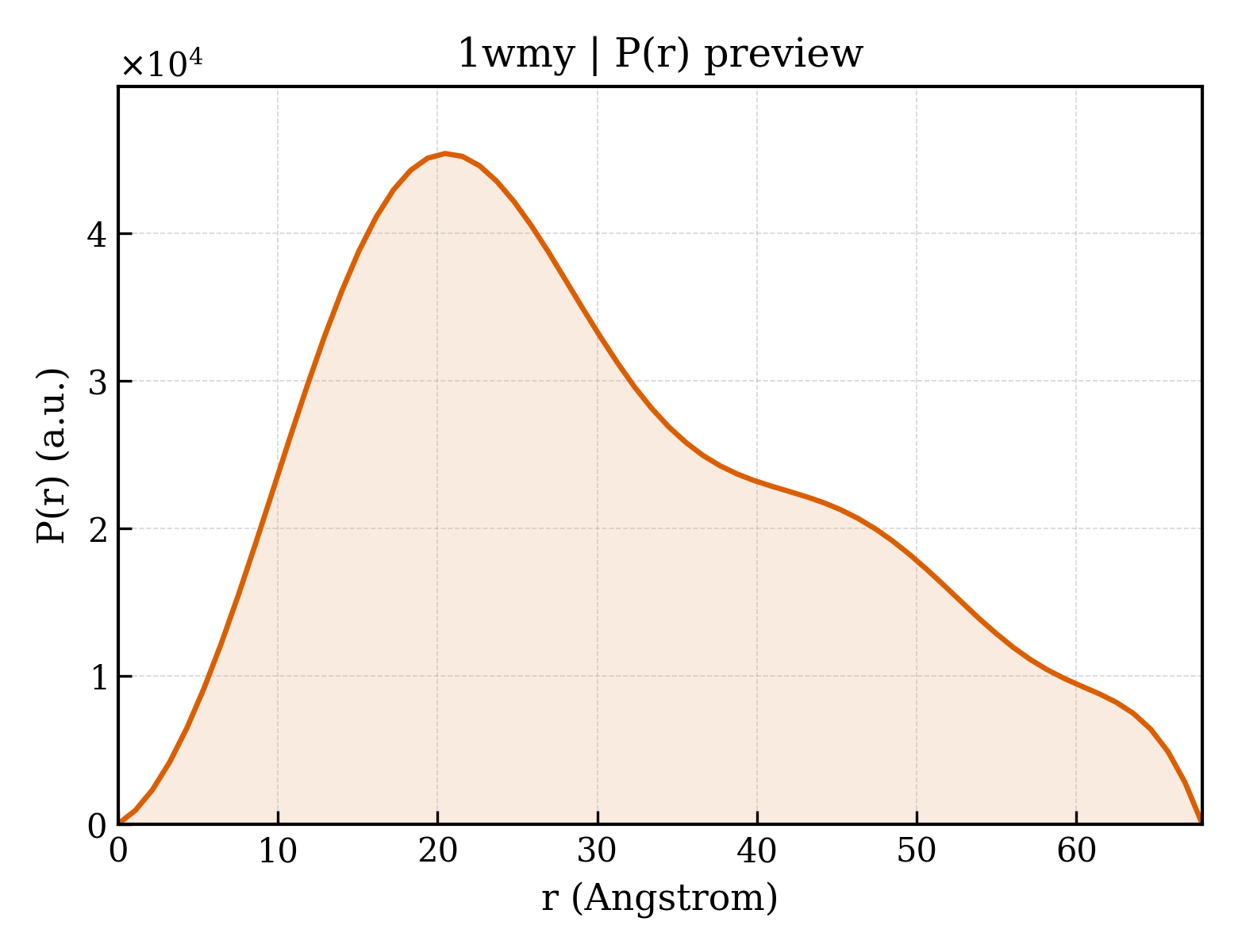

1wmy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.47 Å
Rg (electron density)	24.25 Å
Total Rg	24.81 Å
Atom count	2290
Residues	280
Excluded volume	39647 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1wmy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1wmy__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	lectin CEL-I, N-acetyl-D-galactosamine-specific C-type
Molecular weight formula_weight	16046.3 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2537

NQCPTDWEAEGDHCYRFFNTLTTWENAHHECVSYSCSTLNVRSDLVSVHSAAEQAYVFNYWRGIDSQAGQLWIGLYDKYNEGDFIWTDGSKVGYTKWAGGQPDNWNNAEDYGQFRHTEGGAWNDNSAAAQAKYMCKLTFE

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	247

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1wmya_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d1wmyb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

CATH v4.4 (2 domains)

Domain ID domain_id	1wmyA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	1wmyB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

▶

Unit-cell length a length_a	92.380 Å
Unit-cell length b length_b	69.940 Å
Unit-cell length c length_c	76.690 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	136.46 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	52.700 Å
R factor r_factor	0.1402
R_work r_work	0.1381
R_free r_free	0.1792
